ABB PVS-100 Series User Manual

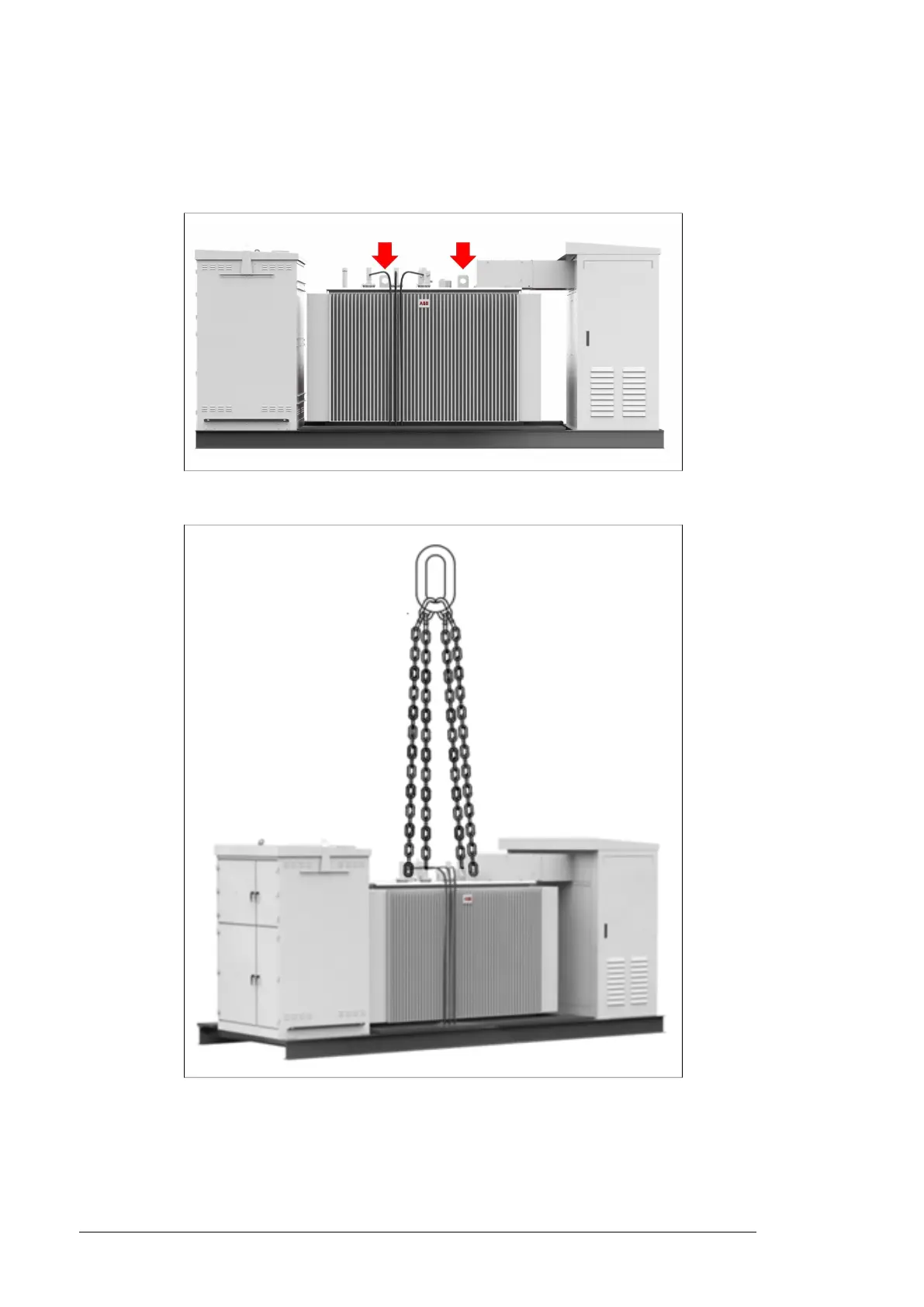

￭ Lifting instructions
1. Attach four slings to the fastening points (lifting lungs) located in the roof of the MV
transformer. See the locations marked in below figure.
2. Connect the slings to the crane as shown in below figure.
32 Storing, lifting and transporting

ABB PVS-100 Series Specifications

General

Rated Power	100 kW
Max DC Voltage	1100 V
Number of MPPT	6
Protection Rating	IP65
Operating Temperature Range	-25°C to +60°C
Max AC Power	100 kW
Topology	Transformerless
Cooling	Forced air
AC Voltage Range	400 V
Frequency Range	50/60 Hz
