ABB PVS-100 Series User Manual

Connecting the inverter inputs

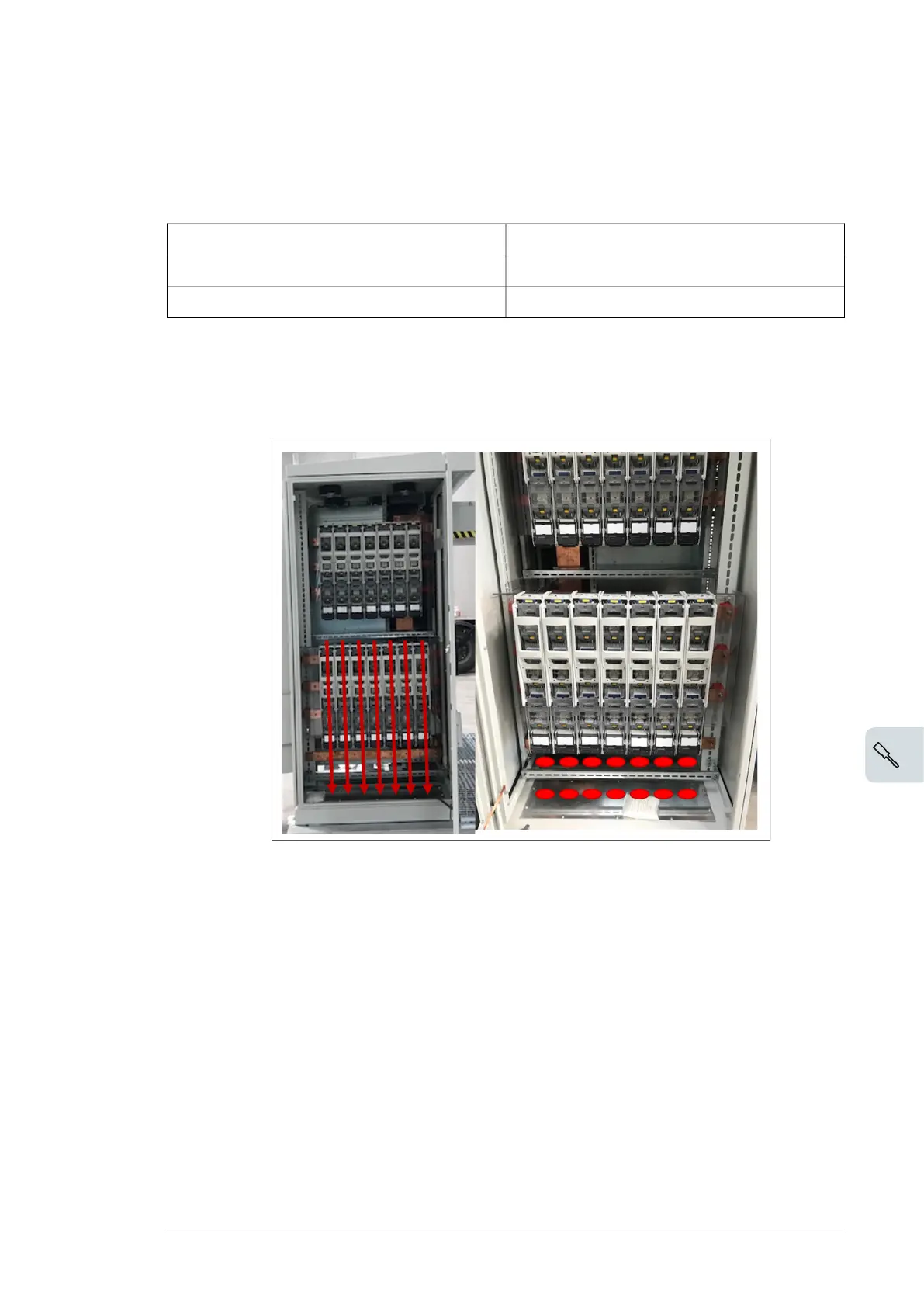

Connect all inverter power cables in the AC cabinet. See details of station type and
corresponding inverter type in below table.
Inverter typeStation type
PVS-100PVS-100-MVCS
PVS-120PVS-120-MVCS
To connect the inverter inputs, follow the instructions below:
1. Make sure that all cables have the maximum cable size = 185 mm
2
.
2. Considering the AC cable sizes and that the cables must be aligned with the fuse bases,
mark the LV AC lead through holes in the cable cover:
3. Remove the cable entry covers.
Electrical installation 43
11

ABB PVS-100 Series Specifications

General

Rated Power	100 kW
Max DC Voltage	1100 V
Number of MPPT	6
Protection Rating	IP65
Operating Temperature Range	-25°C to +60°C
Max AC Power	100 kW
Topology	Transformerless
Cooling	Forced air
AC Voltage Range	400 V
Frequency Range	50/60 Hz
