4. Drill holes of appropriate sizes in the AC cabinet cover and install cable glands to ensure
that IP protection is established.

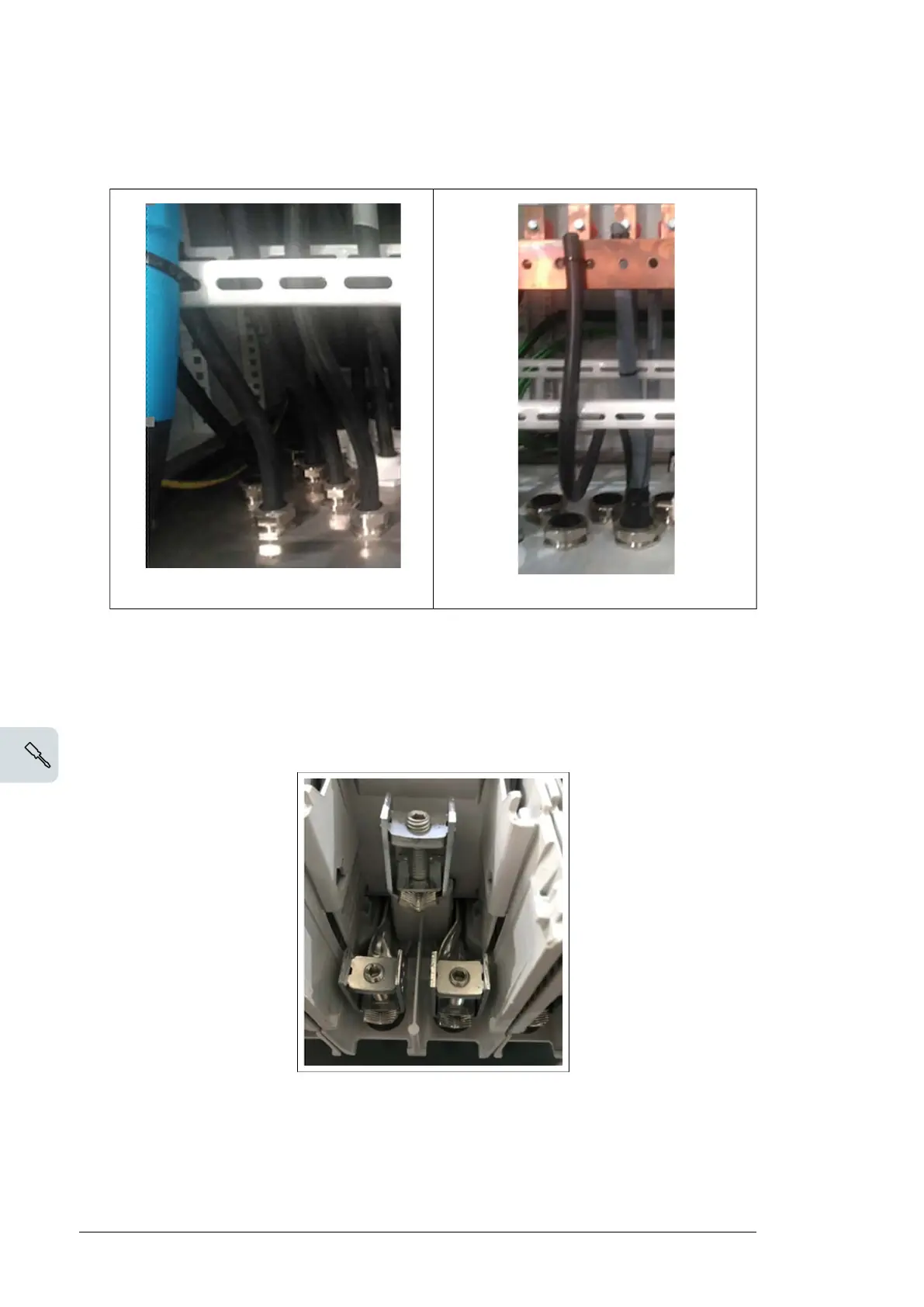

Multicore cabling (3-phase)
Individual cabling (single phase)
5. Route the cables inside the AC cabinet.
6. Connect the cables to the correct fuse base terminals in the AC cabinet. Tighten the
connections.
Note:
You can connect the fuse base without terminating the LV AC cables.
44 Electrical installation

ABB PVS-100 Series Specifications

General

Rated Power	100 kW
Max DC Voltage	1100 V
Number of MPPT	6
Protection Rating	IP65
Operating Temperature Range	-25°C to +60°C
Max AC Power	100 kW
Topology	Transformerless
Cooling	Forced air
AC Voltage Range	400 V
Frequency Range	50/60 Hz
