ABB RED650 Applications Manual

ON
OFF
BLKON
BLKOFF
INHIBIT
BLOCKED
SETON
INPROGR
ACTIVE
UNSUCCL
SUCCL
CLOSECB
PERMIT1 P
CBREADY
CBCLOSED
PLCLOST
3PT1
WFM ASTER
RESET
ST ART
1PT1
2PT1
TRSOTF
TR2P
TR3P
SYNC
INPUT
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
OR
OUTPUT
xx
OR
PROTECTION
xxxx-TRIP
ZCVPSOF-TRIP
TRIP-TR2P
TRIP-TR3P
SESRSYN-AUTOOK
EF4PTOC-BLOCK
BIM BOM
SMBRREC
=IEC04000136=4=en=Original.vsd
xx
xx
xx
xx
xx
xx
xx
xx
xx
STARTHS
SKIPHS
THOLHOLD
WAIT
RSTCOUNT
3PT2
3PT3
3PT4
3PT5
READY
PREP3P
TRIP-P3PTR
IEC04000136 V4 EN-US

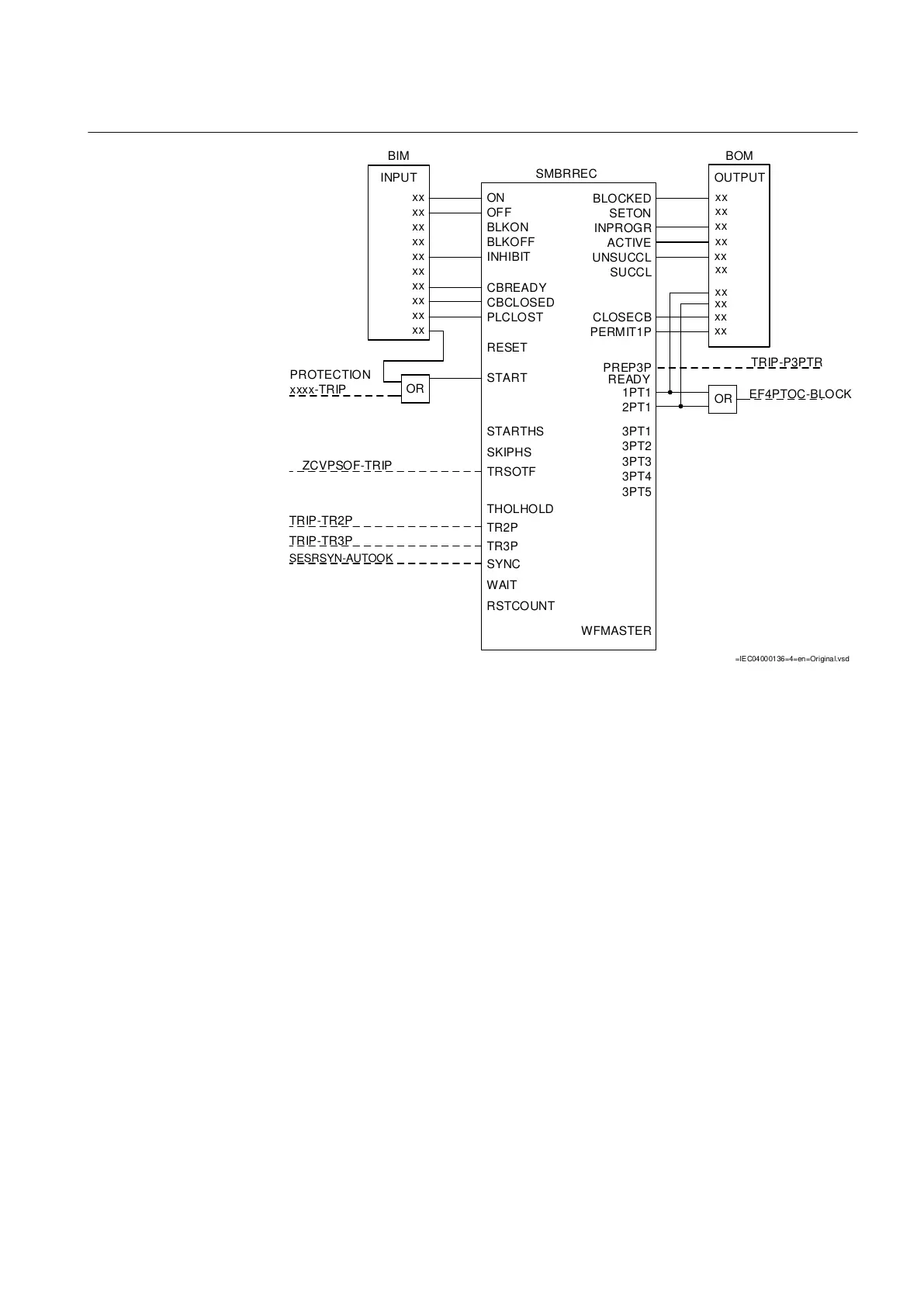

Figure 106: Example of I/O-signal connections for a single-phase, two-phase or
three-phase auto reclosing sequence
12.2.3.2 Auto recloser settings
GUID-74980A07-CF89-488F-AB17-E5351D0032EE v1
The settings for the auto recloser are set using the local HMI (LHMI) or PCM600.
This setting guideline describes the settings of the auto recloser using the LHMI.
The settings for the auto recloser are found under Main menu/Settings/IED
Settings/Control/AutoRecloser(79,5(0->1))/SMBRREC(79,5(0->)):X and have
been divided into four different setting groups: General, CircuitBreaker, DeadTime
and MasterSlave.
General settings
Operation: The operation of the auto recloser can be switched On or Off.
ExternalCtrl: This setting makes it possible to switch the auto recloser On or Off
using an external switch via IO or communication ports.
ARMode: There are six different possibilities in the selection of auto reclosing
programs. The type of auto reclosing used for different kinds of faults depends on
1MRK 505 393-UEN B Section 12
Control
Line differential protection RED650 2.2 IEC 247
Application manual
