ABB RED650 Applications Manual

The LHMI is used for setting, monitoring and controlling.
5.1 Display
GUID-55739D4F-1DA5-4112-B5C7-217AAF360EA5 v12
The LHMI includes a graphical monochrome liquid crystal display (LCD) with a
resolution of 320 x 240 pixels. The character size can vary. The amount of
characters and rows fitting the view depends on the character size and the view that
is shown.

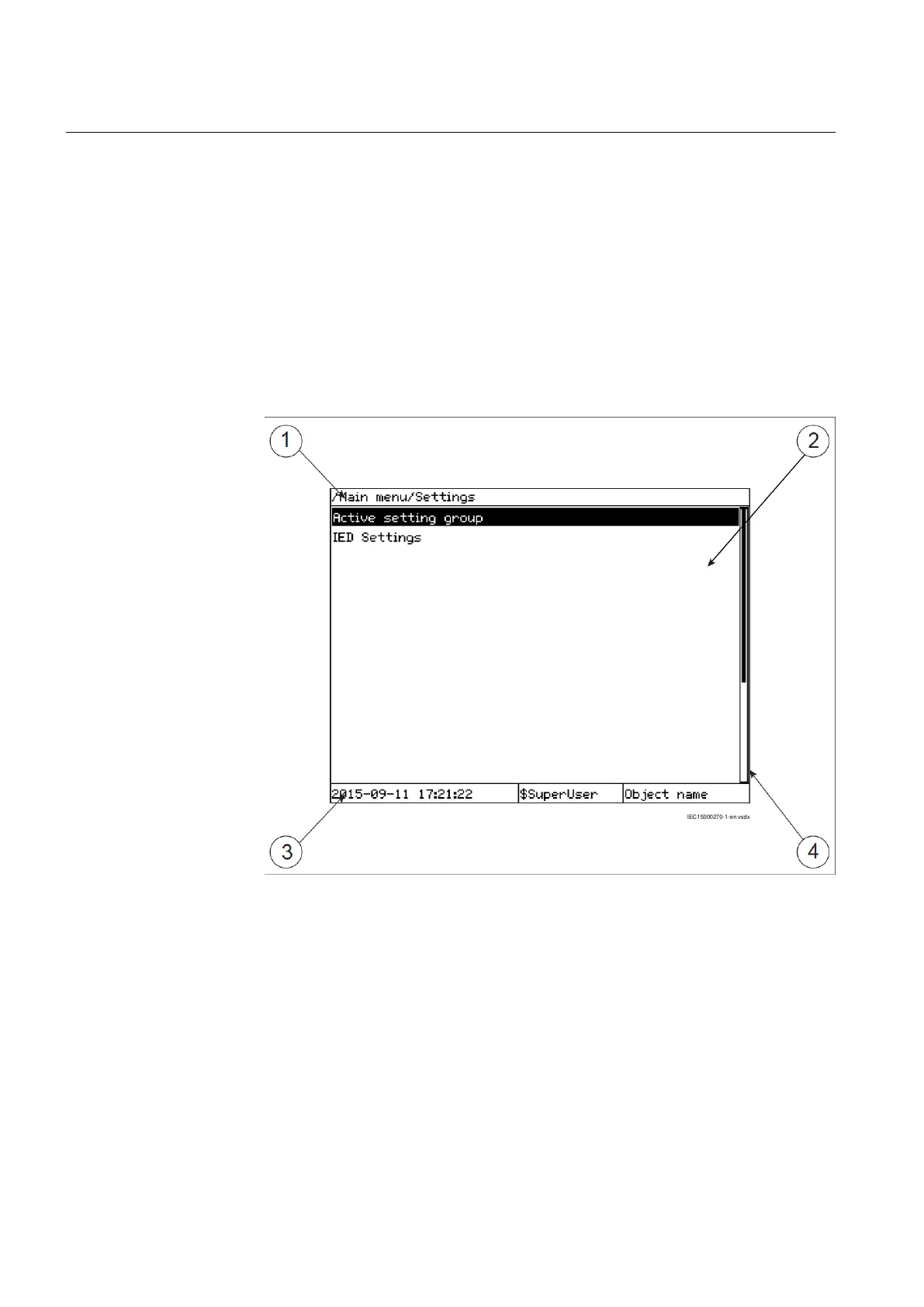

The display view is divided into four basic areas.
IEC15000270-1-en.vsdx
IEC15000270 V1 EN-US
Figure 23: Display layout
1
Path
2 Content
3 Status
4 Scroll bar (appears when needed)
The function key button panel shows on request what actions are possible with the
function buttons. Each function button has a LED indication that can be used as a
Section 5 1MRK 505 393-UEN B
Local HMI
68 Line differential protection RED650 2.2 IEC
Application manual
