IEC17000044-1-en.vsdx
IEC17000044 V1 EN-US

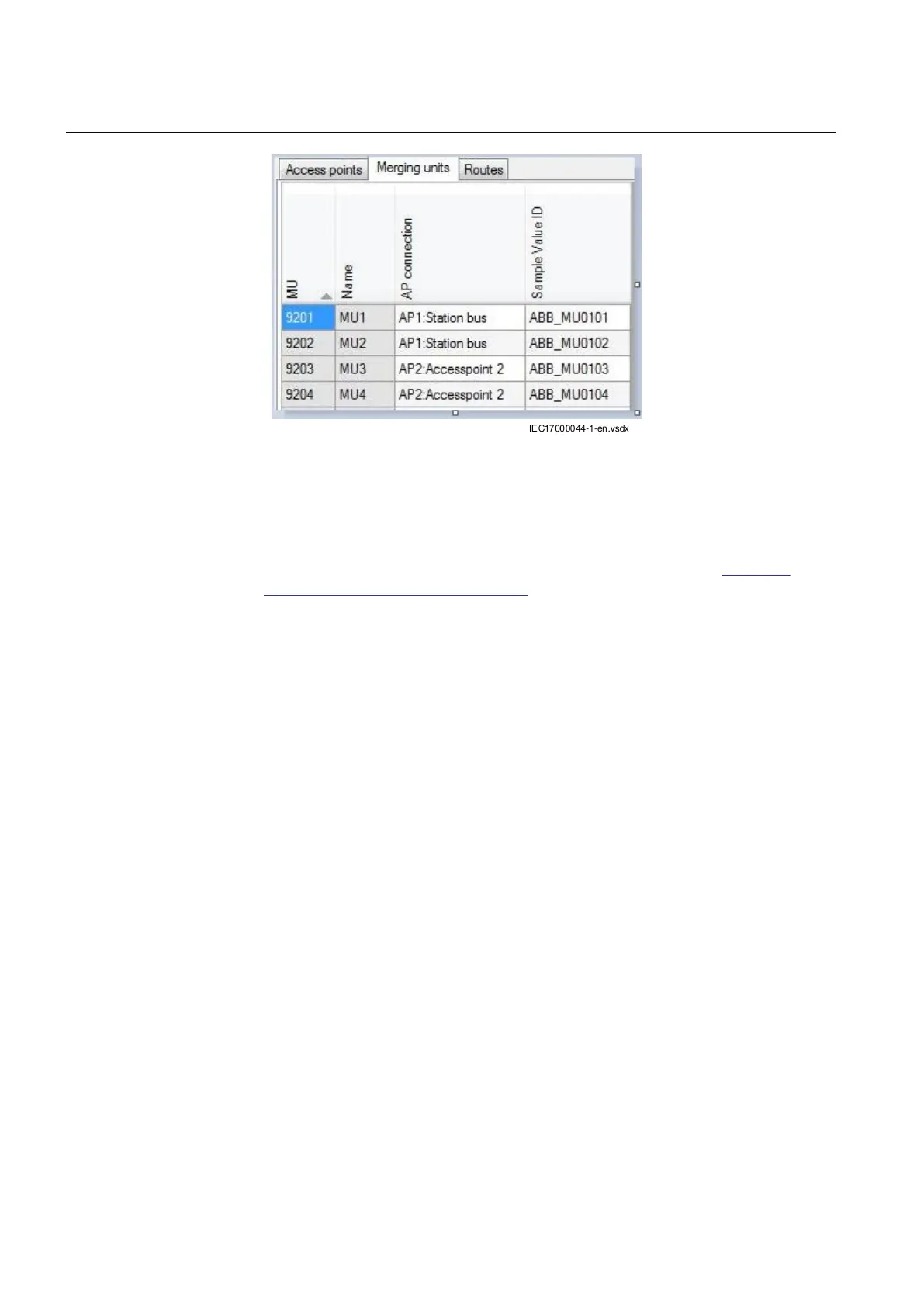

Figure 146: Merging unit
17.3.2 Setting guidelines
GUID-3449AB24-8C9D-4D9A-BD46-5DDF59A0F8E3 v1
For information on the merging unit setting guidelines, see section IEC/UCA
61850-9-2LE communication protocol.
17.4 Routes
17.4.1 Application
GUID-19616AC4-0FFD-4FF4-9198-5E33938E5ABD v1
Setting up a route enables communication to a device that is located in another
subnetwork. Routing is used when the destination device is not in the same
subnetwork as the default gateway.
The route specifies that when a package is sent to the destination device it should
be sent through the selected router. If no route is specified the source device will
not find the destination device.
17.4.2 Setting guidelines
GUID-2C4A312A-00DC-44C8-B2D9-CD0822E1C806 v1
Routes are configured using the Ethernet configuration tool in PCM600.
Operation for the route can be set to On/Off by checking and unchecking the
check-box in the operation column.
Gateway specifies the address of the gateway.
Destination specifies the destination.
Destination subnet mask specifies the subnetwork mask of the destination.
Section 17 1MRK 505 393-UEN B
Ethernet-based communication
360 Line differential protection RED650 2.2 IEC
Application manual
