Section 5 Local HMI
AMU0600442 v15
IEC13000239-3-en .vsd
IEC13000239 V3 EN-US

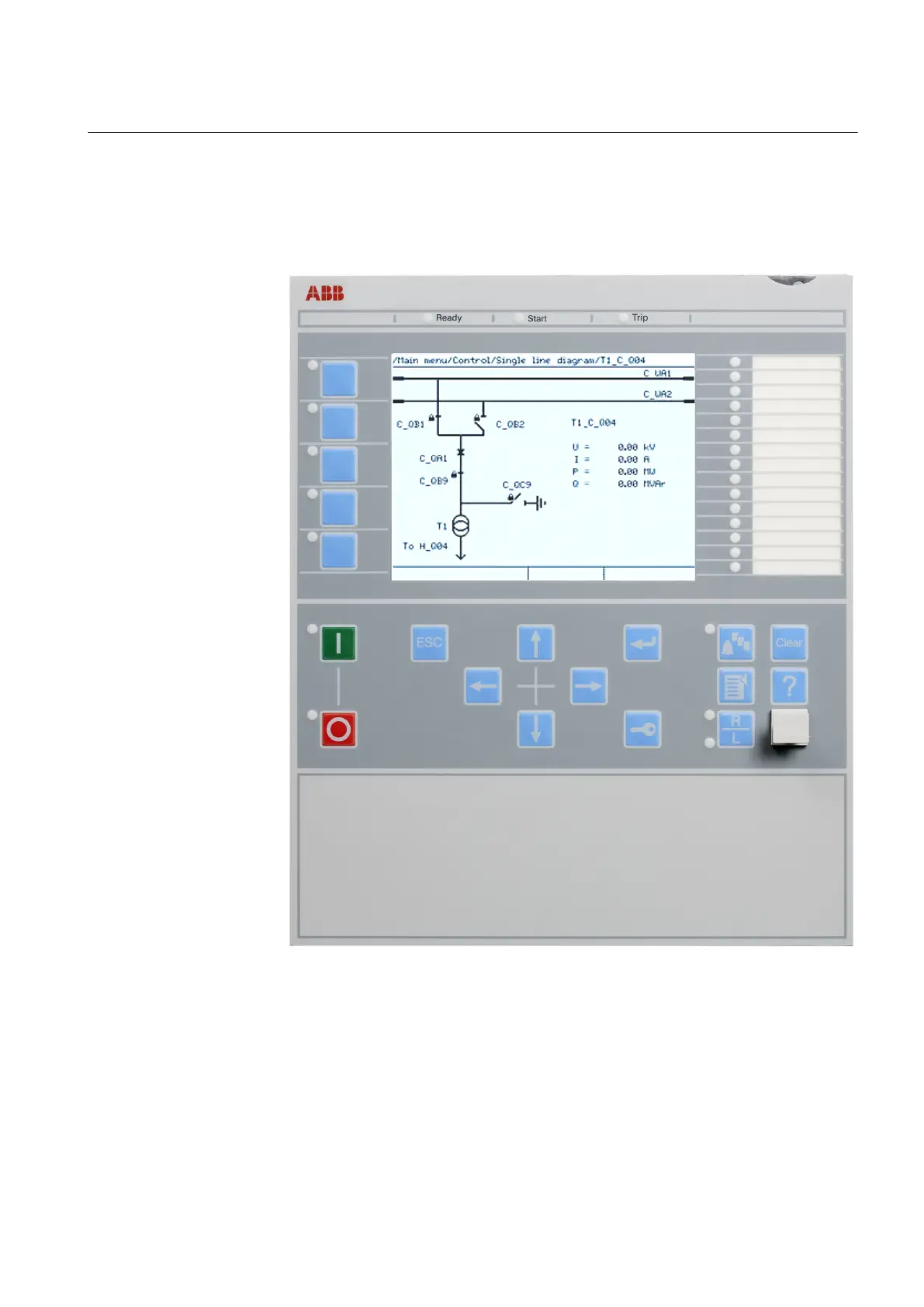

Figure 22: Local human-machine interface
The LHMI of the IED contains the following elements
• Keypad
• Display (LCD)
• LED indicators
• Communication port for PCM600
