feedback signal for the function button control action. The LED is connected to the
required signal with PCM600.
GUID-C98D972D-D1D8-4734-B419-161DBC0DC97B V1 EN-US

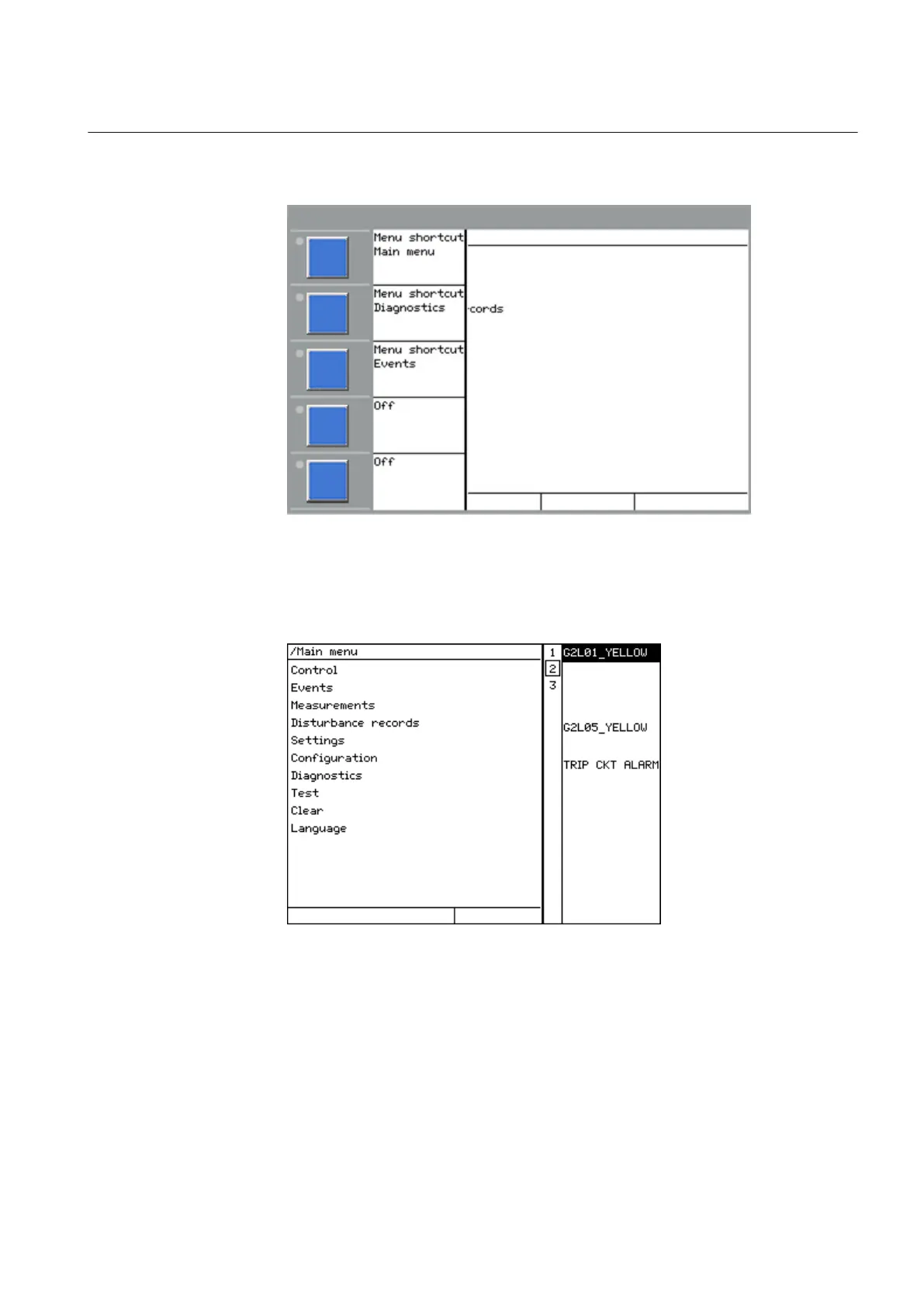

Figure 24: Function button panel
The indication LED panel shows on request the alarm text labels for the indication
LEDs. Three indication LED pages are available.
GUID-5157100F-E8C0-4FAB-B979-FD4A971475E3 V1 EN-US
Figure 25: Indication LED panel
The function button and indication LED panels are not visible at the same time.
Each panel is shown by pressing one of the function buttons or the Multipage
button. Pressing the ESC button clears the panel from the display. Both panels have
a dynamic width that depends on the label string length.
1MRK 505 393-UEN B Section 5
Local HMI
Line differential protection RED650 2.2 IEC 69
Application manual
