The phase discontinuity protection (PDNSPTOC1) provides protection for
interruptions in the normal three-phase load supply, for example, in downed
conductor situations. The thermal overload protection (T1PTTR1) provides
indication on overload situations. The operate signal of the phase discontinuity
protection is connected to the Master Trip and also to an alarm LED. LED 4 is used
for the phase discontinuity protection operate indication, the same as for negative-
sequence overcurrent protection operate indication, and LED 5 is used for the thermal
overload protection alarm indication.
GUID-5F0B30AD-0B3F-4B6D-BFAC-7209FA9DAACD V1 EN

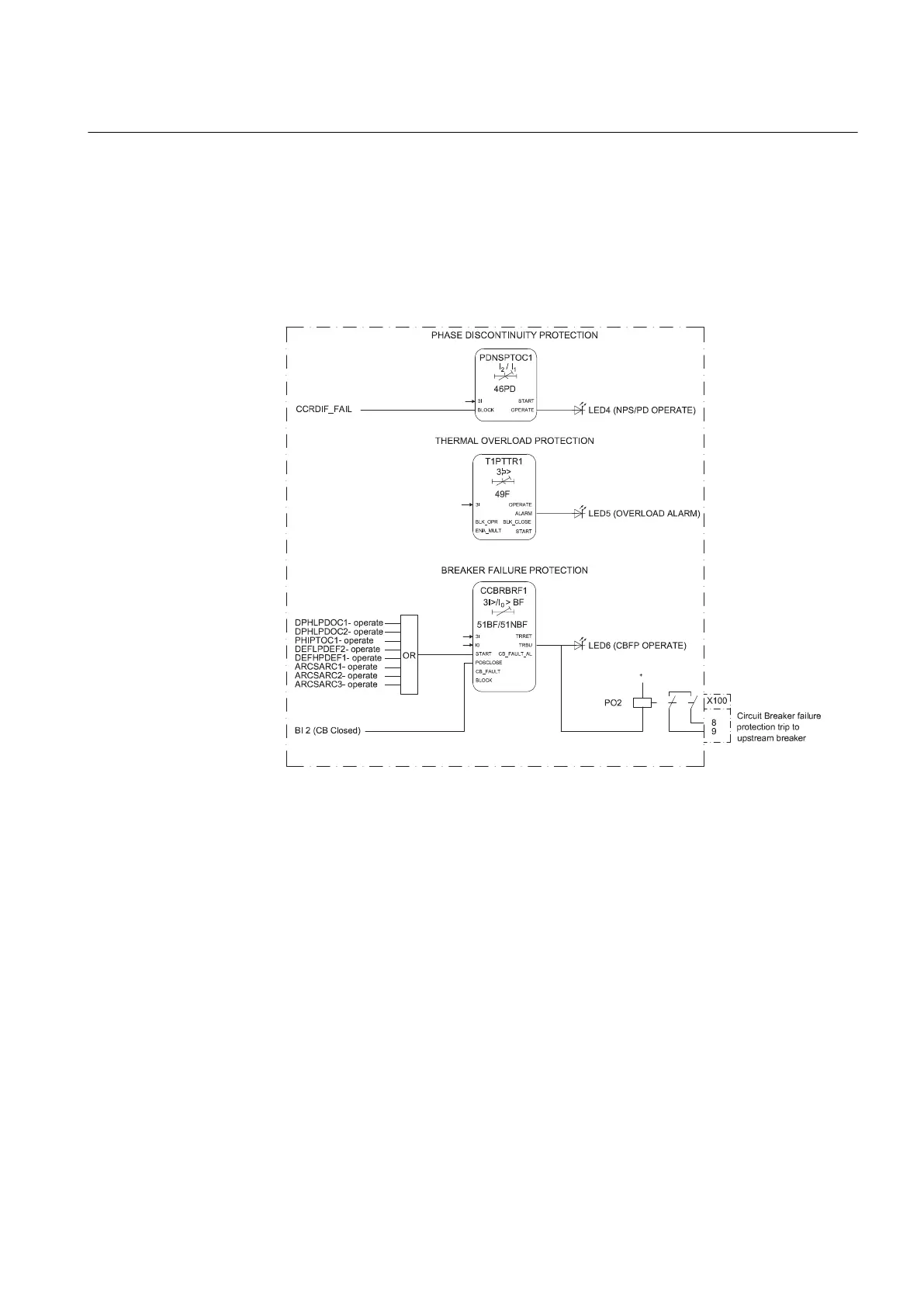

Figure 52: Phase discontinuity, thermal overload and circuit breaker failure
protection
The breaker-failure protection (CCBRBRF1) is initiated via the start input by a
number of different protection stages in the IED. The breaker failure protection
function offers different operating modes associated with the circuit breaker position
and the measured phase and residual currents. The breaker failure protection has two
operating outputs: TRRET and TRBU. The TRRET operate output is used for
retripping its own breaker through the Master Trip 2. The TRBU output is used to
give a back-up trip to the breaker feeding upstream. For this purpose, the TRBU
operate output signal is connected to the output PO2 (X100: 8-9). LED 6 is used for
back-up (TRBU) operate indication.
ARC protection (ARCSARC1...3) and autorreclosing (DARREC1) are included as
optional functions.
1MRS756378 D Section 3
REF615 variants
REF615 99
Application Manual
