2.4 LHMI
A070704 V2 EN

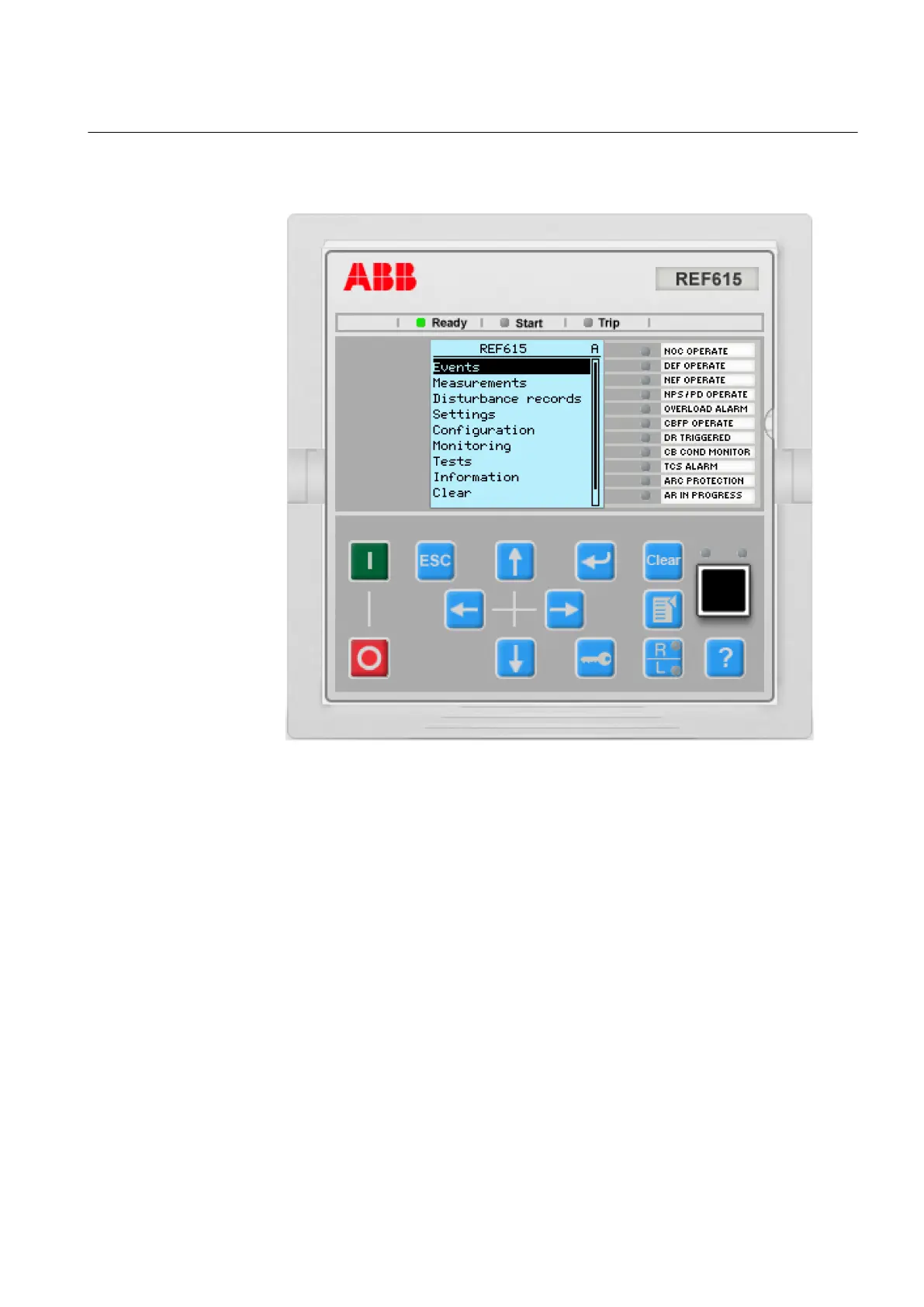

Figure 1: LHMI
The LHMI of the IED contains the following elements:
• Display
• Buttons
• LED indicators
• Communication port
The LHMI is used for setting, monitoring and controlling.
2.4.1 LCD
The LHMI includes a graphical LCD that supports two character sizes. The character
size depends on the selected language.
The amount of characters and rows fitting the view depends on the character size:
1MRS756378 D Section 2
REF615 overview
REF615 21
Application Manual
