10.2.3 Application
In the field of distribution and sub-transmission automation, the reliable control and
status indication of primary switching components both locally and remotely is in a
significant role. These features are needed especially in modern remote controlled
substations. The application area of DCSXSWI and ESSXSWI functions covers
remote and local status indication of, for example, disconnectors, air-break switches
and earthing switches, which represent the lowest level of power switching devices
without short-circuit breaking capability.
10.3 Interaction between control modules
A typical substation feeder with IED control function consists of a combination of
logical nodes or functions:

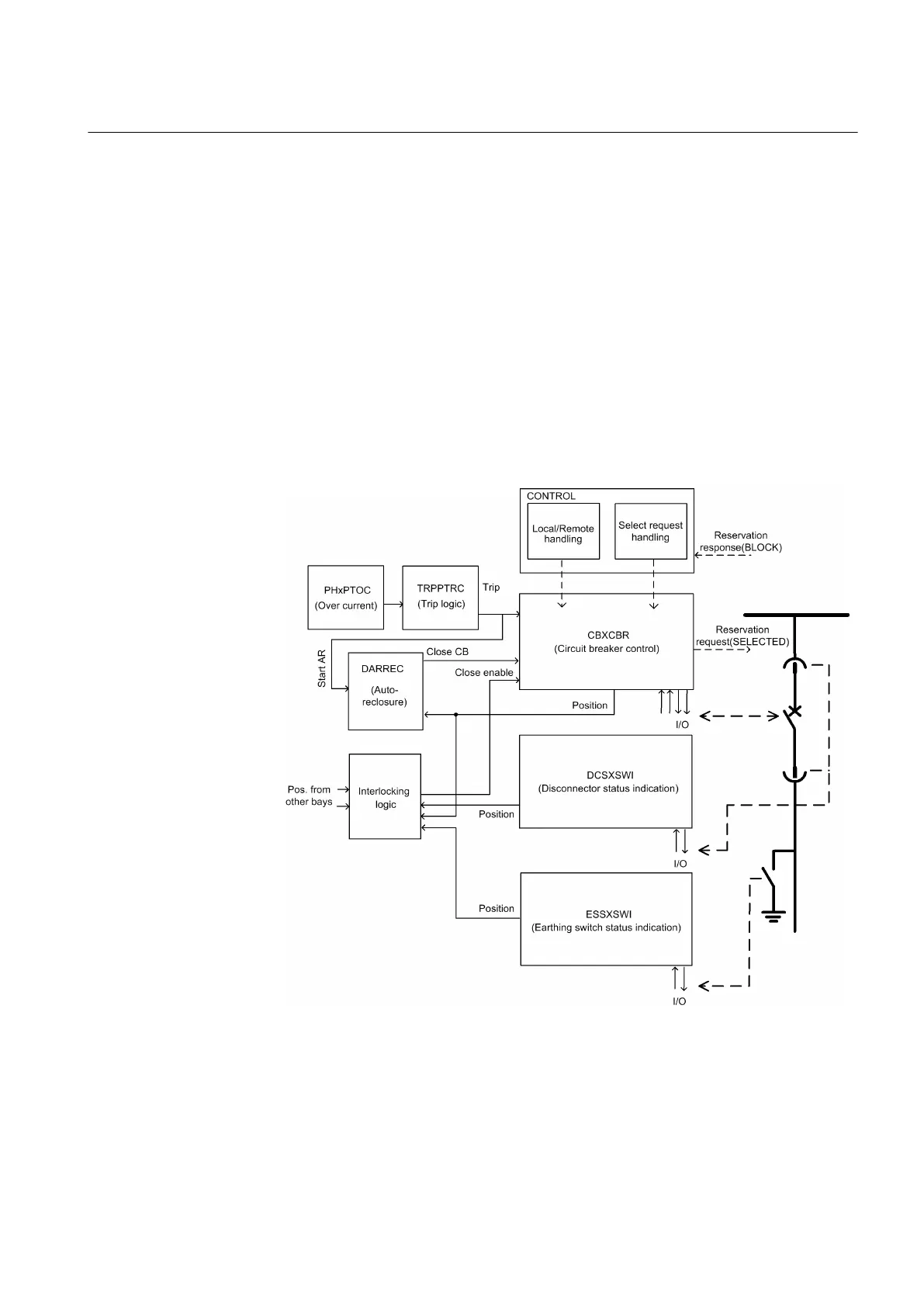

A070880 V2 EN
Figure 105: Example overview of interactions between functions in a typical
distribution feeder
