ABB REF615 - 8.5.3 Setting IED Parameters; 8.5.3.1 Defining Setting Groups

GUID-79EB68EE-F160-402E-A841-BC6D074E7294 V1 EN

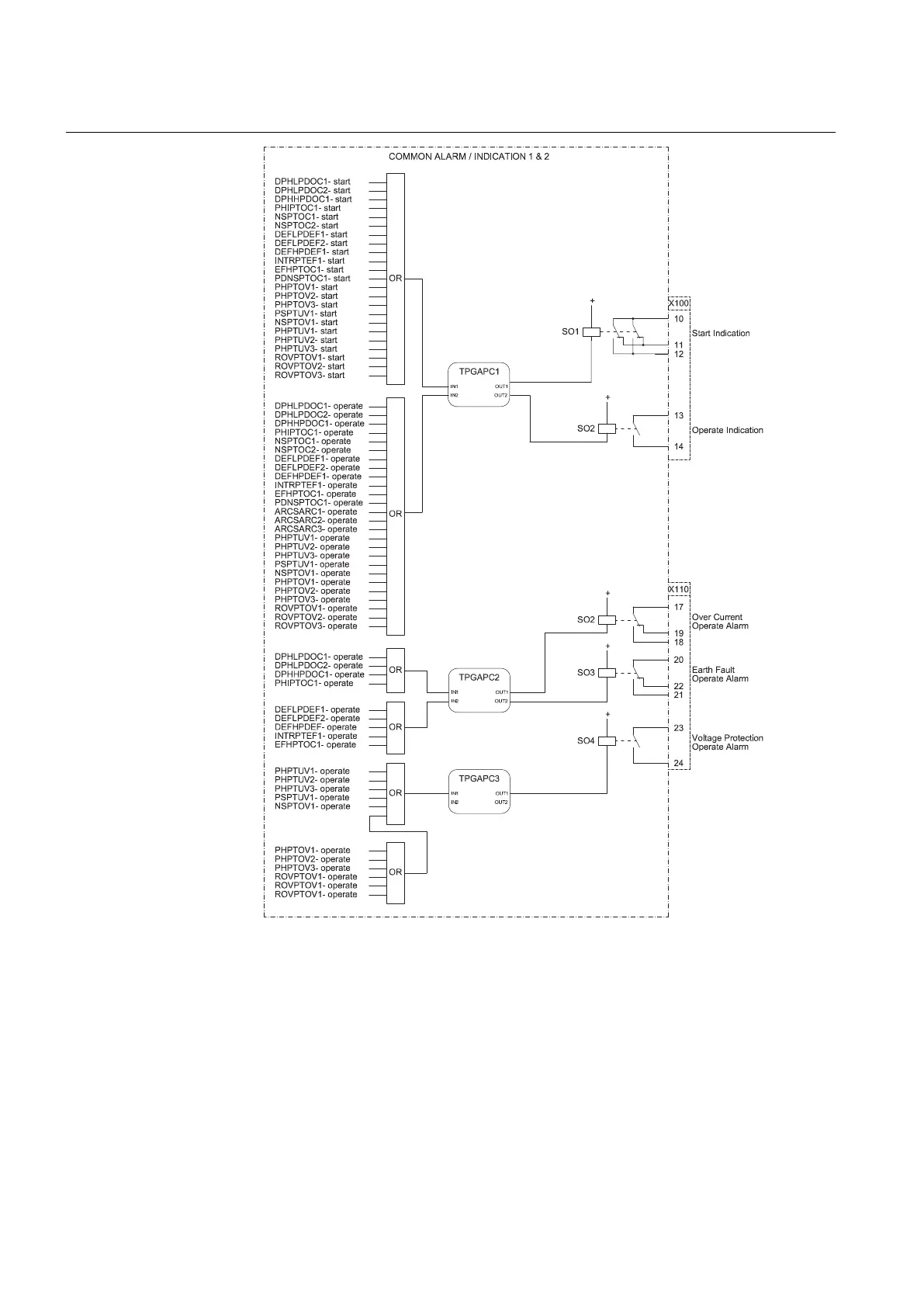

Figure 61: Alarm indication
The signal outputs from the IED are connected to give dedicated information on:
Section 3 1MRS756378 D
REF615 variants
108 REF615
Application Manual
