There are four IED variant specific setting groups. Parameters can be set
independently for each setting group.
The active setting group (1...4) can be changed with a parameter. The change of an
active setting group can also be made via a binary input if the binary input is enabled
for this. To enable the change of an active setting group via a binary input, connect
a free binary input with SMT to the ActSG input of the SGCB-block.
Table 12: Binary input states and corresponding active setting groups
BI State Active setting group
OFF 1
ON 2
The active setting group defined by a parameter is overridden when a binary input is
enabled for changing the active setting group.
I > (1)
DEFLPDEF1
START
OPERATE
I0
U0
ENA_MULT
67N-1 (1)
0
RCA_CTL
BLOCK
I > (2)
DEFLPDEF2
START
OPERATE
I0
U0
ENA_MULT
67N-1 (2)
0
RCA_CTL
BLOCK
I >>
DEFHPDEF
START
OPERATE
I0
U0
ENA_MULT
67N-2
0
RCA_CTL
BLOCK
LED2 (DEF OPERATE)
OR
DIRECTIONAL OR INTERMITTENT EARTH FAULT PROTECTION
DOUBLE (CROSS COUNTRY) EARTH FAULT PROTECTION
LED3 (NEF OPERATE)
I >>
EFHPTOC1
START
OPERATE
I0
BLOCK
ENA_MULTI
51N-2
0
Calculated Io
X110
3
4
BI 2 (BACTRL)
INTRPTEF1
START
OPERATEU0
BLOCK BLK_EF
67NIEF
I >
0
I0
A071334 V4 EN

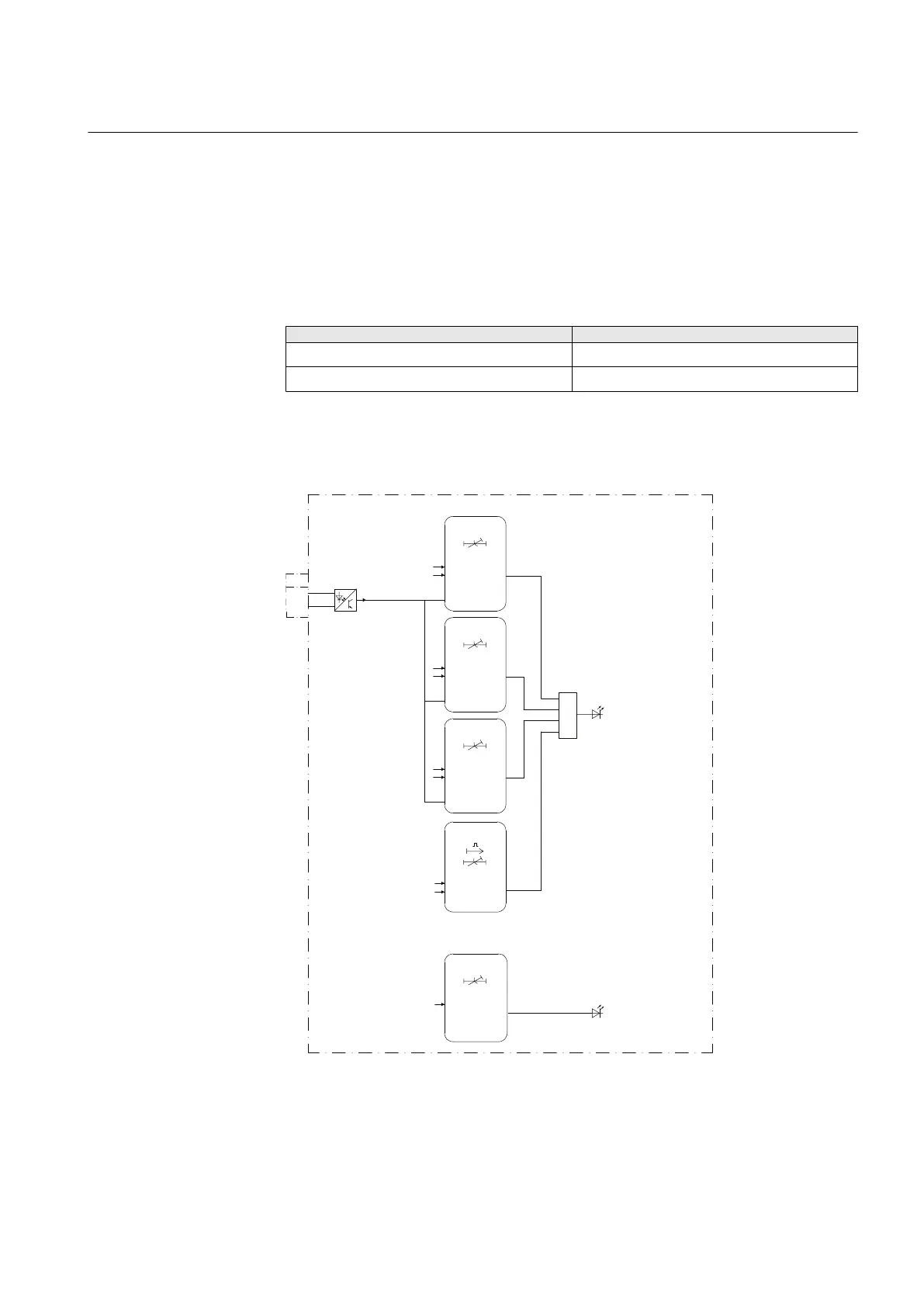

Figure 18: Directional earth-fault protection
