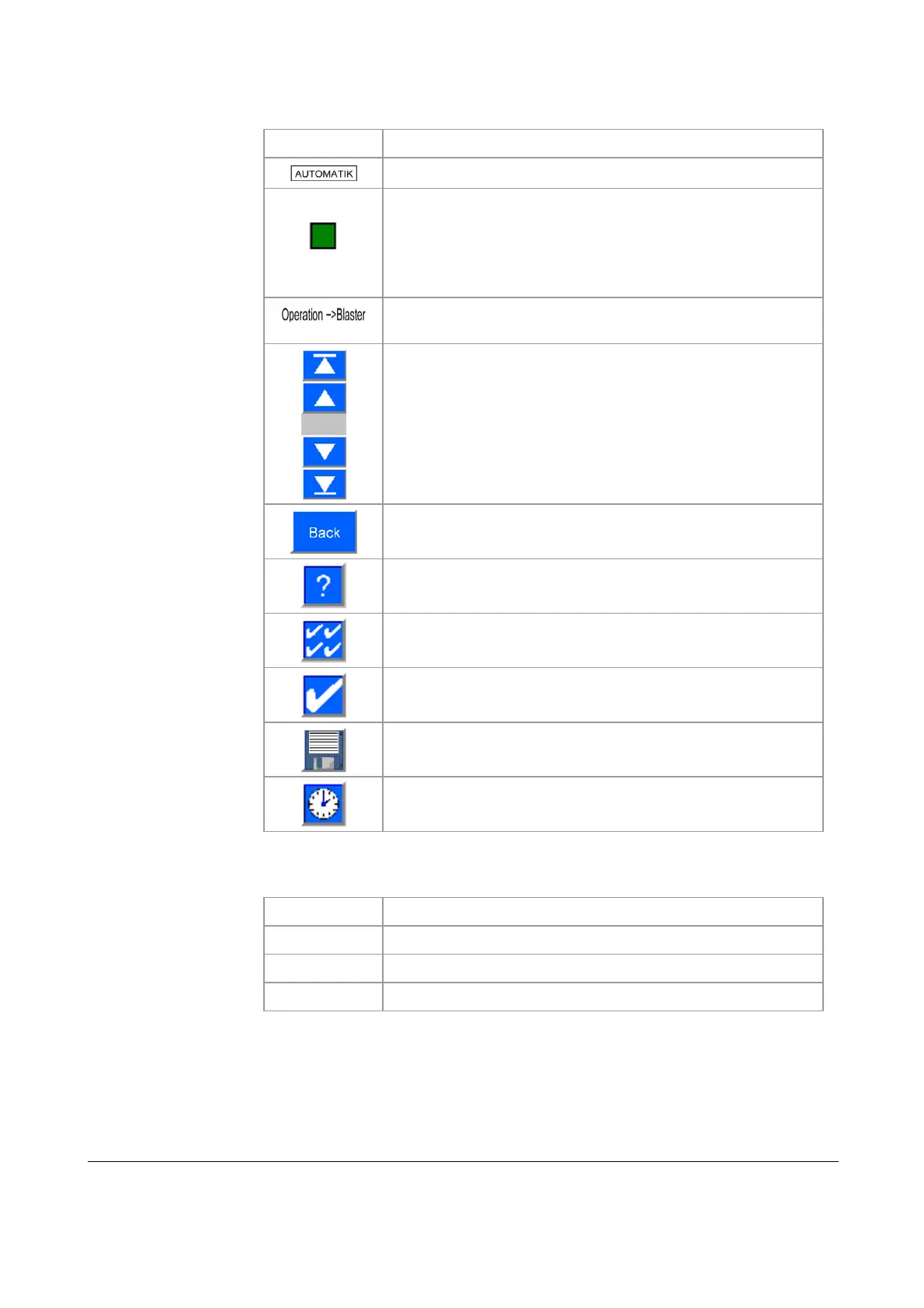

The following table lists the buttons and displays in the user interface and their
functions:
Symbol Function
Displays the mode (AUTOMATIC or MANUAL)
System status lights:
 green: normal operation
 red: error
 orange: maintenance required
 blue: maintenance
Menu path display
Scroll buttons: scrolls logbook up/down and jumps to begin-
ning/end
Jump to previous menu
Display help texts
Reset all messages
Reset the select message
Save contents: Save messages in xls format
Display all messages in chronological order
Click on crossed-out clock to display pending messages only
The following colors are used in the message screen display area:
Color Meaning
green
Status message in normal operation
yellow
Maintenance required
red
Error message
Buttons and symbols
Colors
