ABB SCK - Transporting the Modules

42/23-81 EN Rev. 4 System Manual SCK Gas Sampling System 87
Transport the system in the company
Risk of injury in the area of the gas sampling system due to moving or fall-
ing parts, anti-freeze, lubricating oil
Wear general personal protective equipment:
 Closed overalls with long trousers and long sleeves
 Safety shoes
 Safety gloves suitable for mechanical work
 Safety glasses
 Protective helmet
 If necessary, additional protective equipment if prescribed by the operator.
Danger of crushing when lifting or lowering the transport unit
 Only appropriately trained personnel may transport the transport units and only
with the aid of the recommended transport equipment.
 Do not stand under suspended loads.
 Follow the transport instructions in these operating instructions carefully.
Observe the following instructions with regard to transport in the company:
Module Weight Transport conditions
Retractor in-
cluding probe
max. 500 kg
 Probe tip must be adequately fixed to the retractor (e.g. with a load
strap) in order to avoid bouncing, that may damage the rollers and
rails.
 Use the two enclosed transport supports for transport in the company
(see illustration in Probe retractor on page 26).

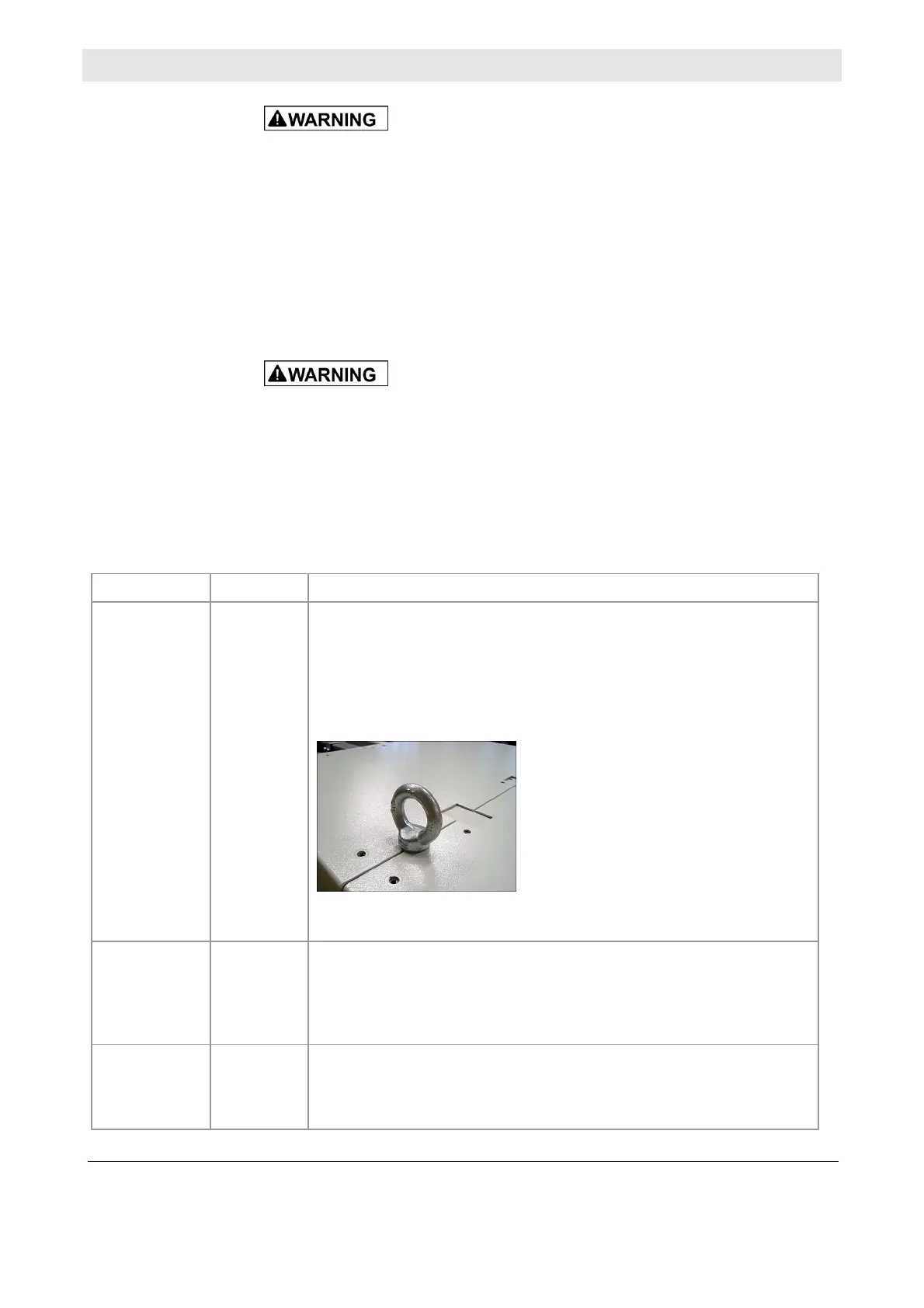

 Lifting gear may only be attached at the designated attachment points
(transport lugs).
 Transport recommendation: Crane
Note: Do not transport using a fork-lift truck.
Cooling module
250 kg
 Protect cooling fins with a board to avoid damage.
 Only store after draining all water.
 Lifting gear may only be attached at the designated attachment points
(transport lugs).
 Transport recommendation: For-lift truck or crane
Control cabinet
75 kg
 Mark connecting cables so that you know where to install what.
 Lay the control cabinet on its back for transport.
 Use a suitable transport pallet for transport.
 Transport recommendation: For-lift truck or hand lift
Mechanical and
material dangers
Heavy transport units
Transporting the
modules
