User interface: Message screen

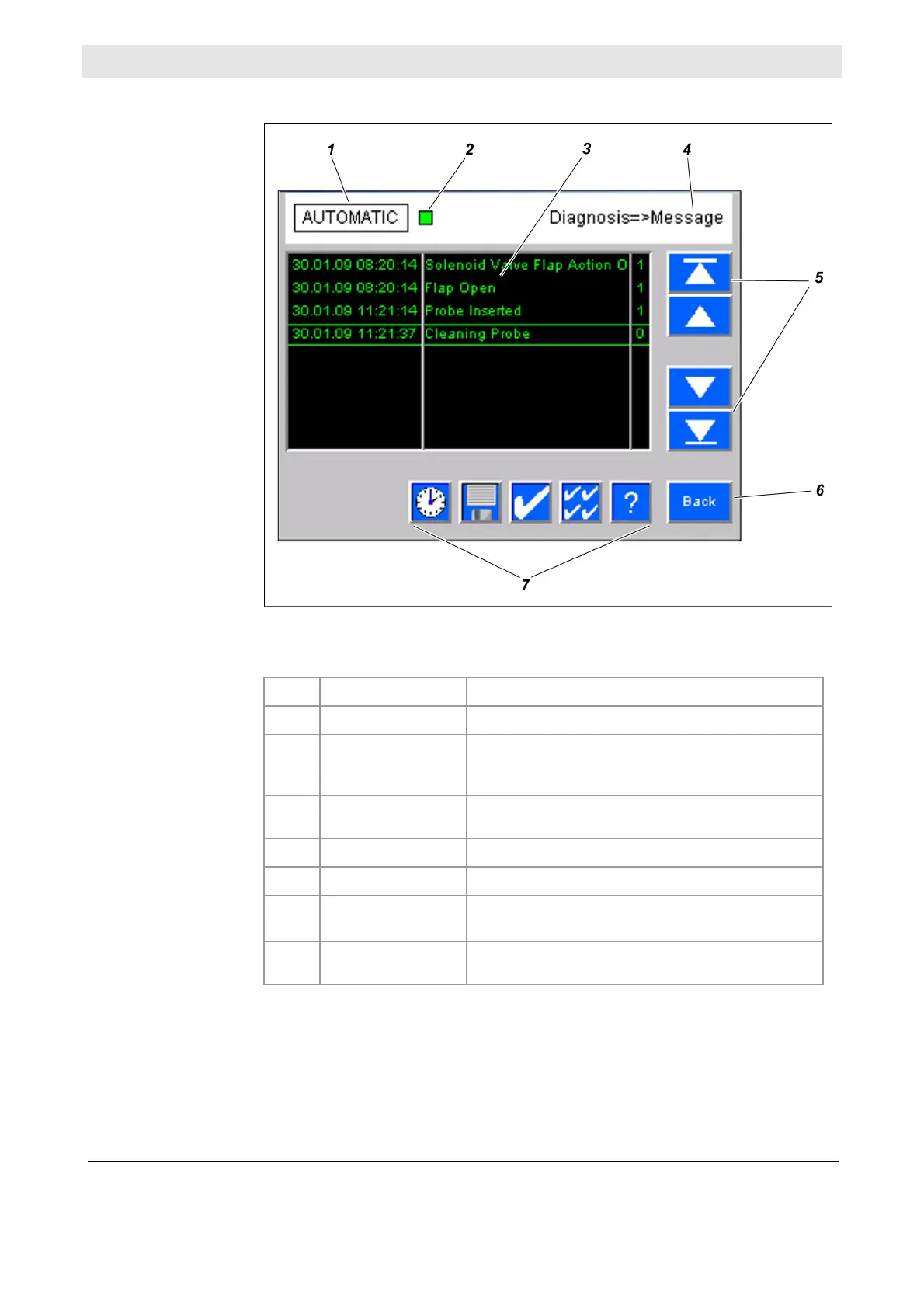

This is a typical message screen:
The various areas of the screen have the following functions:
No. Designation Function
1
Mode Displays the mode (AUTOMATIC, MANUAL)
2
System status
lights
Displays the current system status (normal opera-
tion, error, maintenance requirement, mainte-
nance)
3
Display area
Chronological list of messages with description of
error and status
4
Current menu Menu path display
5
Scrollbar Scroll up and down in the logbook
6
Navigation area Allows the following functions:
jump to previous menu
7
Screen functions
Allows functions such as save history, reset mes-
sage, etc. (see next page)
