ABB SCK - Chapter 5 Transport and Unpacking

42/23-81 EN Rev. 4 System Manual SCK Gas Sampling System 85
Observe the following instructions with regard to transporting the modules:
Module Weight Transport conditions
Retractor includ-
ing probe
max. 500 kg
 The retractor is delivered with two transport supports (see illustration
in Probe retractor on page 26). They are removed during assembly.
 During storage, support the tip of the assembled gas sampling probe.
 Only store after draining all water.

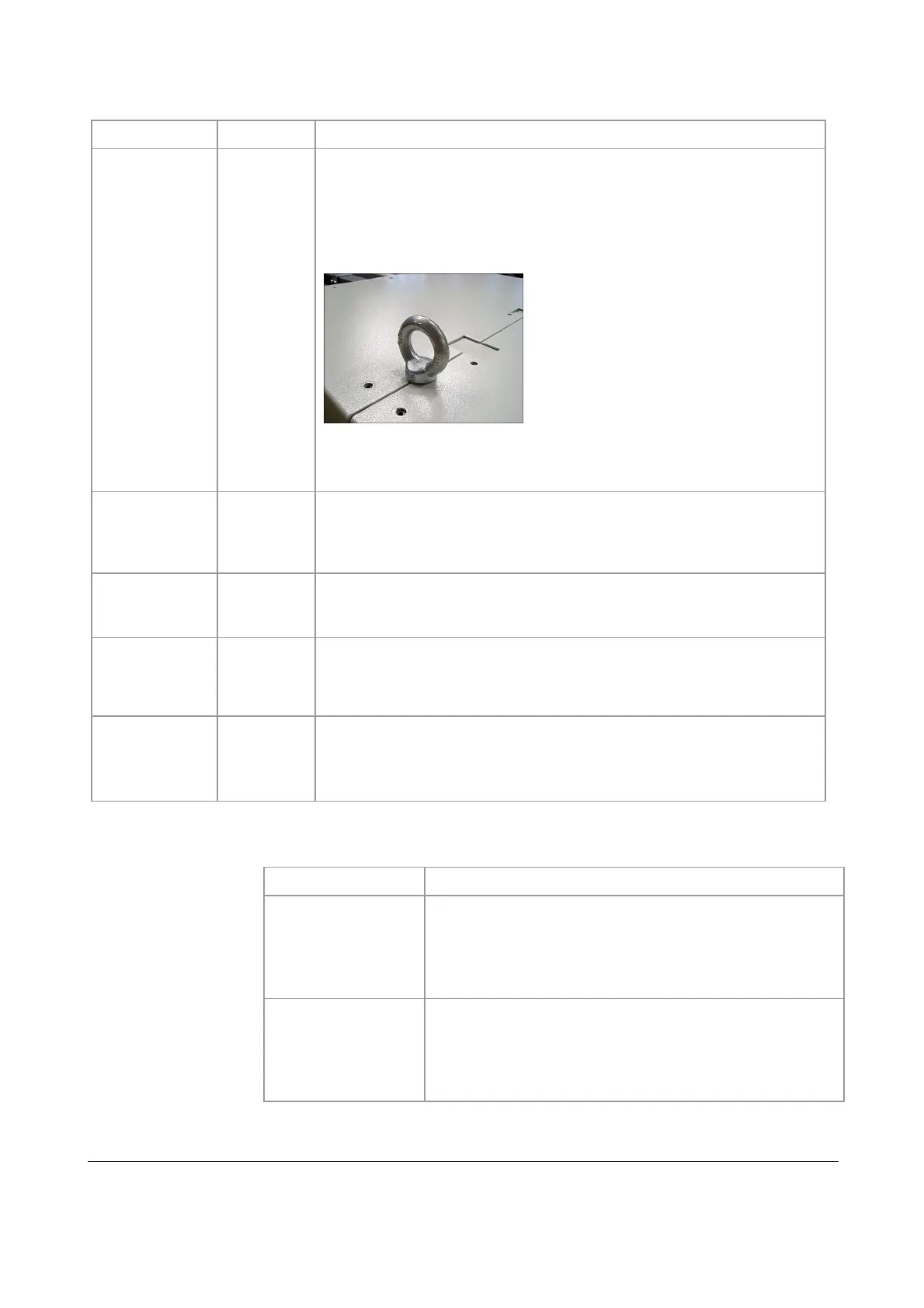

 Lifting gear may only be attached at the designated attachment points
(transport lugs).
 Transport recommendation: Crane
Note: The unpacked retractor must not be transported using a fork-lift
truck.
Cooling module
250 kg
 Only store after draining all water.
 Lifting gear may only be attached at the designated attachment points
(transport lugs).
 Transport recommendation: For-lift truck or crane
Control cabinet
75 kg
 Lay the control cabinet on its back for transport.
 Use a suitable transport pallet for transport.
 Transport recommendation: For-lift truck or hand lift
Transformer
(optional)
140 kg
 Use a suitable transport pallet for transport (transport recommenda-
tion: fork-lift truck or hand lift).
 The casing is also fitted with transport lugs and can be lifted using a
crane.
Compressed-air
tank
(optional)
90 kg
 May only be transported on its side.
 Ensure adequate protection of the attachments.
 Only store after draining all water.
 Transport recommendation: For-lift truck or hand lift
Observe the following physical limits when transporting the modules:
Module Environmental conditions for transport
Retractor including
probe
Ambient temperature: +5 °C to +55 °C, after completely
draining all water and drying parts in contact with cooling
water or condensation: -20 °C to +55 °C
Air humidity: Year-round average max. 75 %, short-term
max. 95 %, occasional slight condensation is permitted
Cooling module
Ambient temperature: +5 °C to +55 °C, after completely
draining all water and drying parts in contact with cooling
water or condensation: -20 °C to +55 °C
Air humidity: Year-round average max. 75 %, short-term
max. 95 %, occasional slight condensation is permitted
Transporting the
modules
Environmental
conditions
