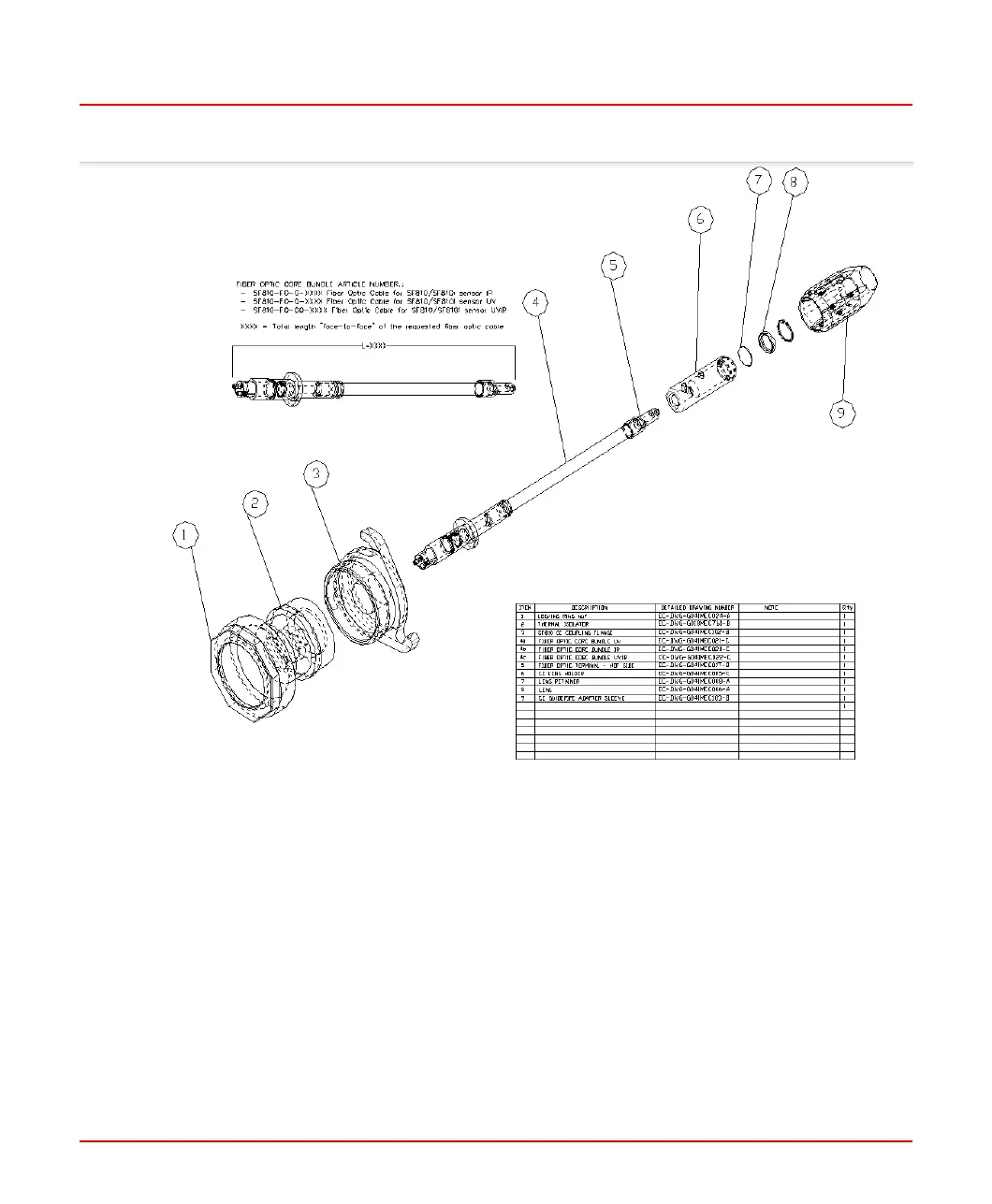

Figure E.8: DFS/CE Standard Replacement - Internal Assembly
This option provides the user with a convenient solution to upgrade an existing Bailey
FlameON flame series UM...UW...Flame Scanner with flexible fiber optic design or
reflecting tube.
SF910i-FOC final equipment selection is based on the specific customer and application
needs.
Refer to the assembly part number: EC-DWG-G041MEC119.
8VZZ005286 B 159
E Drawings
