ABB Uvisor SF910i - THU-1 NPTMF 1 NPTM;1 NPTF Thermal Isolation Union; PAY-1 NPTFF Purging Air Y NPTF;NPTF Inlet

G.3 THU-1NPTMF 1” NPTM/1” NPTF Thermal Isolation
Union

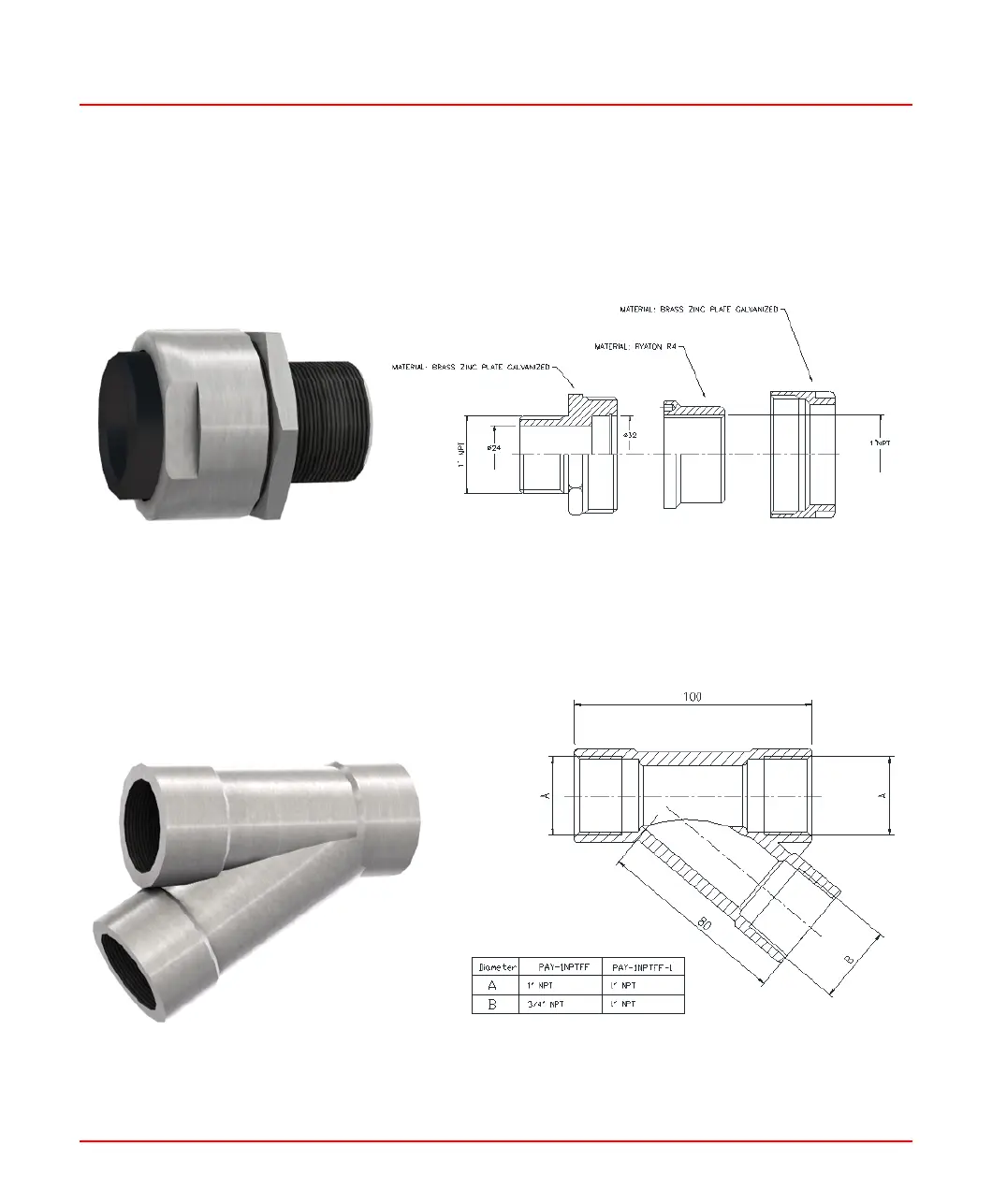

Figure G.3: 1” NPTM/1” NPTF Thermal Isolation Union
G.4 PAY-1NPTFF Purging Air “Y” NPTF/NPTF Inlet
Figure G.4: Purging Air “Y” NPTF/NPTF Inlet
8VZZ005286 B 174
G Fittings
G.3 THU-1NPTMF 1” NPTM/1” NPTF Thermal Isolation Union
