ABB Uvisor SF910i - Integrated

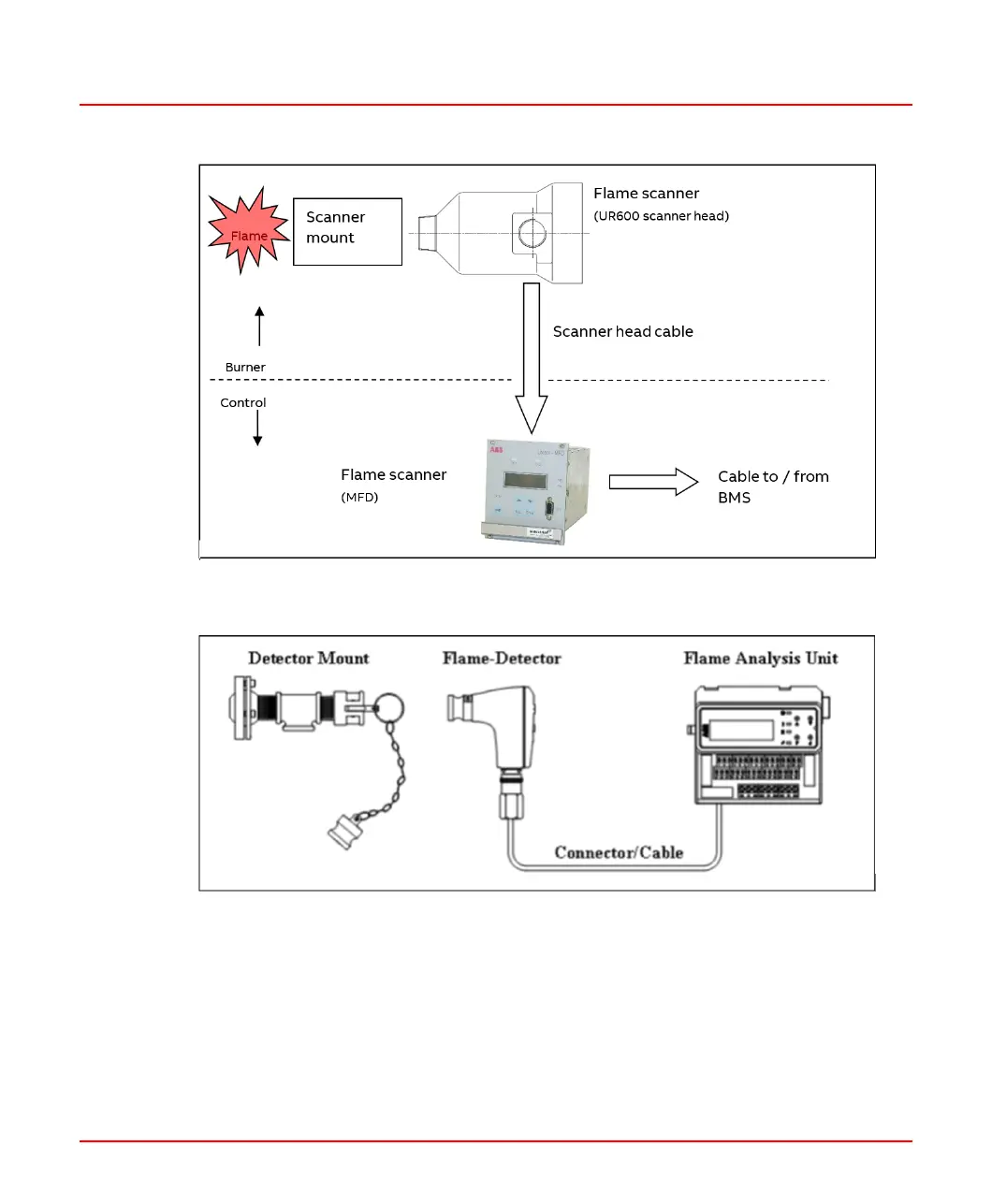

Figure 1.1: Conventional Architecture (showing ABB Uvisor™ UR600 and MFD Products)
Figure 1.2: Conventional Architecture (showing ABB SafeFlame UV and FAU800
Products)
1.3.2 Integrated
Integrated architecture is shown in Figure 1.3. Flame Scanner consists of a single product,
the SF910i.
8VZZ005286 B 23
1 Introduction
1.3 Split (Conventional) Vs Integrated Architecture
