3.3.4 Opening Enclosure Cover and Wiring
As above stressed, when installed in hazardous area, cannot screw open the enclosure,
and cannot be dis-connected under power. Ex certified products (Refer to datasheet for
detailed product coding) must be handled as in SF910i Safety Instruction Manual
(EC-DOC-G041MAN033).
In non- hazardous area, it is allowed to screw open the enclosure and do the wiring.
Before to open the enclosure cover, screw out the hexagon cap in the cover.

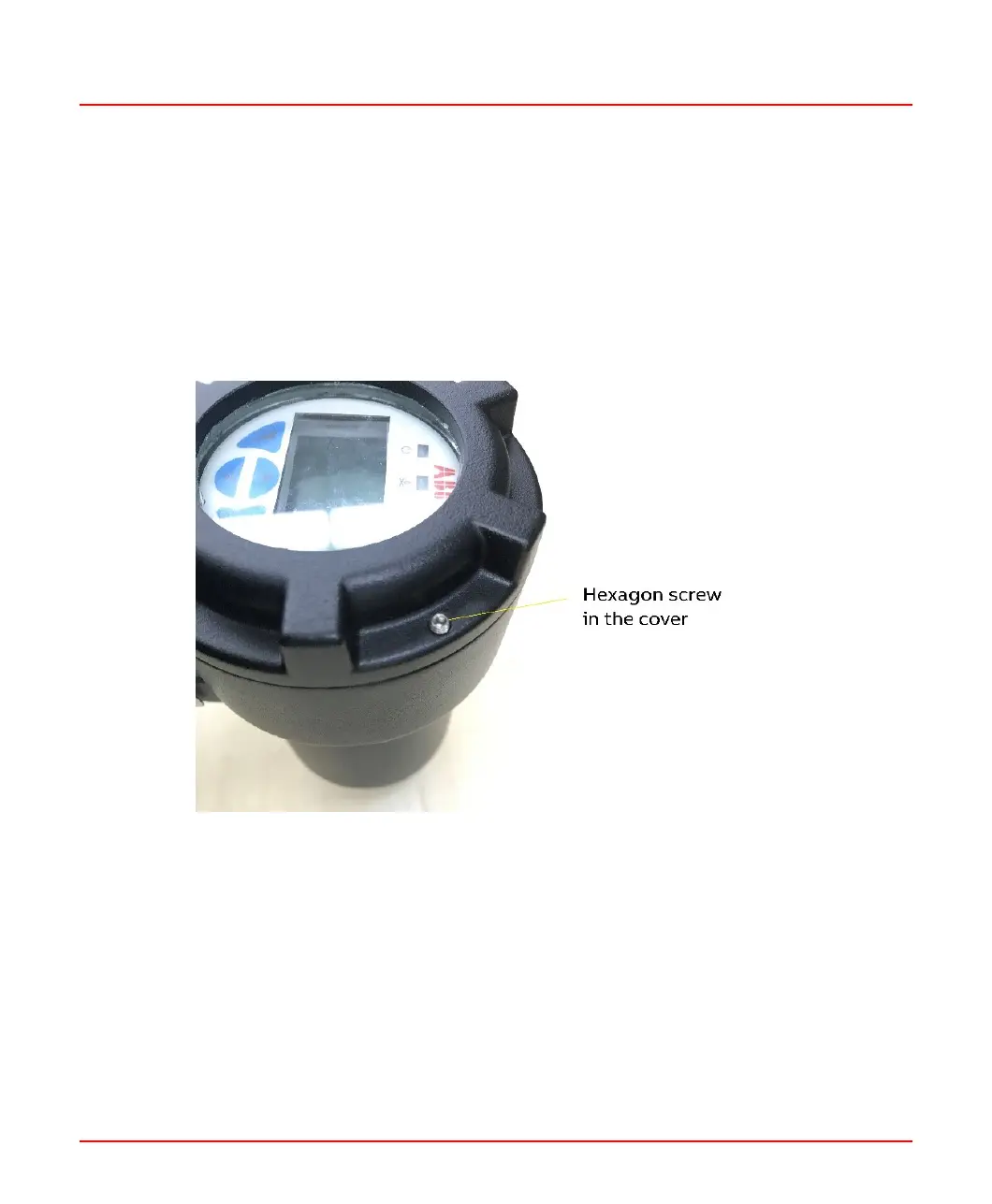

Figure 3.1: Hexagon Cap in the Cover
When the enclosure cover is screw opened, the user can find two phillips head screws
with waisted shank as shown in the below figure.
