7.2 Current Fault Display
Pressing the RIGHT button displays any faults that may be present. Pressing the LEFT
button again returns the LCD to the previous display.
7.3 Fault History Display
Fault history display shows the last three faults detected by the SF910i internal
diagnostics.
This is particularly useful for tracking down the intermittent problems, such as loose field
connections.
A sample fault history display is shown in the below figure.

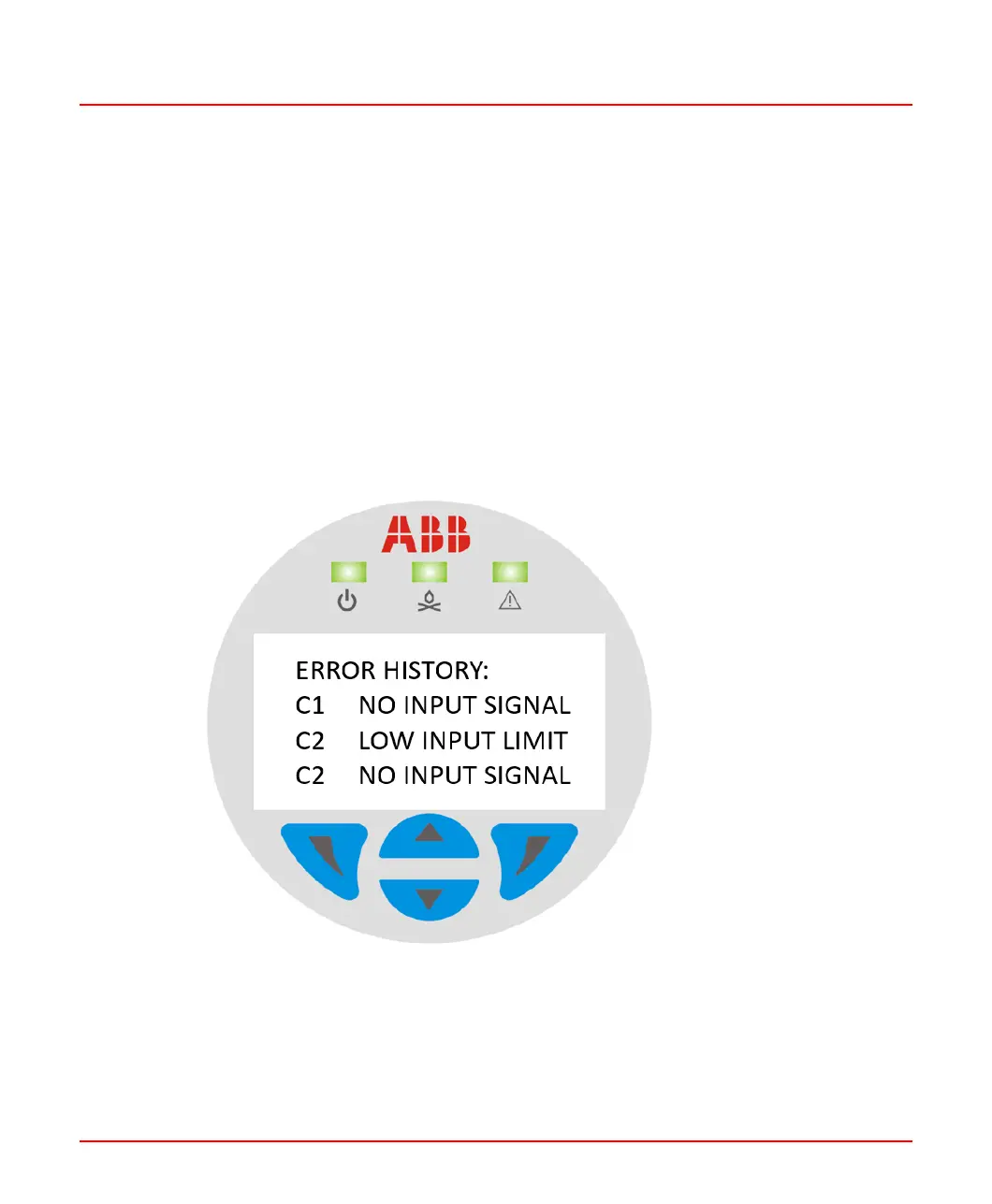

Figure 7.2: Sample Fault History Display in Normal-Mode
