2.3 Mounting and Orientation
SF910i can be mounted horizontally or vertically. Care must be taken to face down the
cable entry thus to prevent water drops to leak in.
In wall mount application, it is advisable to install the Flame Scanner on a swivel flange,
this will help optimizing the Flame Scanner aiming toward the burner flame.

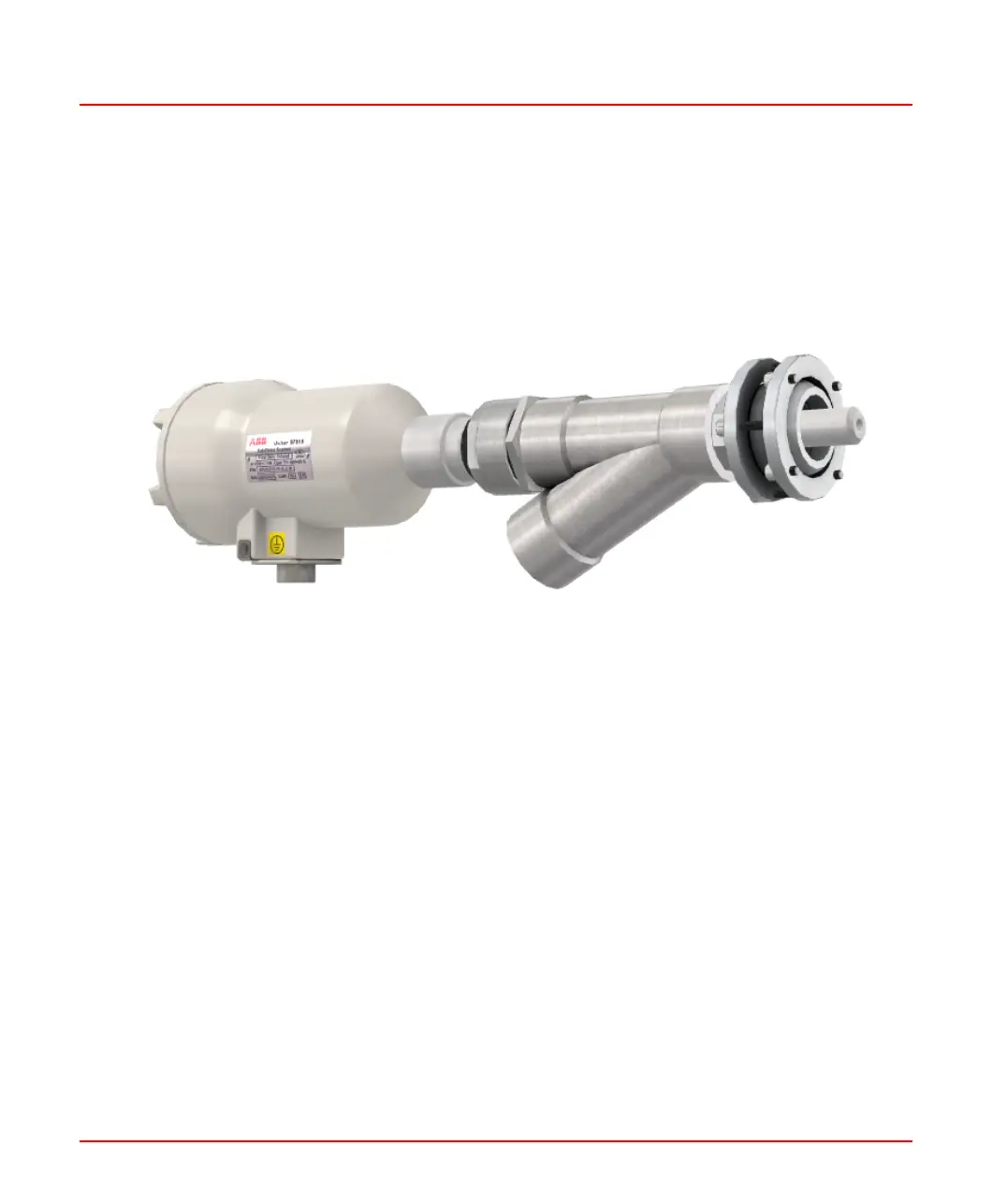

Figure 2.7: SF910i LOS Assembly
