Connector or Terminals
ABB SF910i Integrated SafeFlame Scanner comes in a variety of versions. The standard
version comes with terminals. A quick-release connector version is available, as well as
a connectorized cable. Refer to Table 1.1 for more details.
Block Diagram

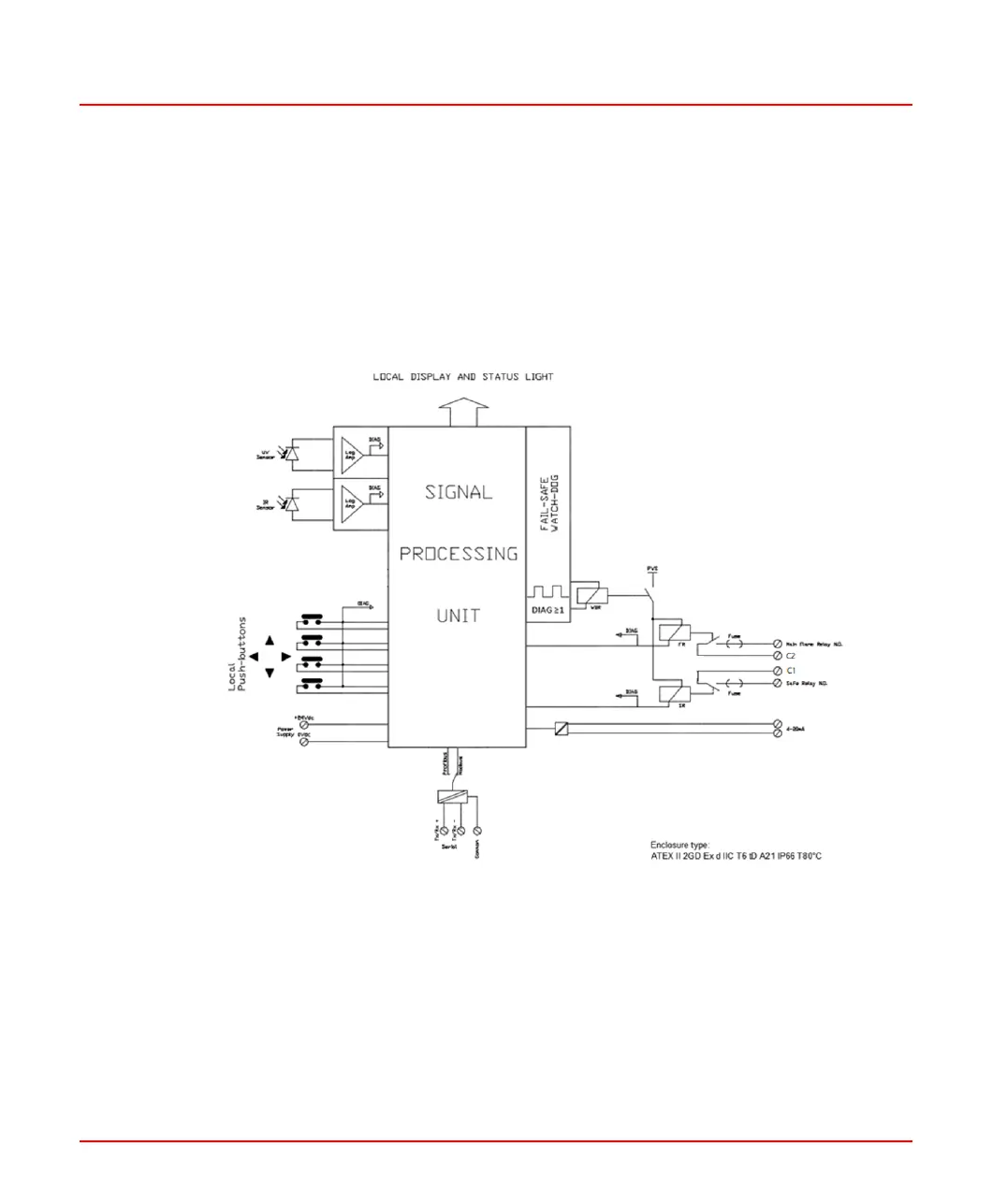

Figure 1.4: SF910i Functional Block Diagram
1.3.3 Versions
According to the fuels type and burner arrangement, Flame Scanner SF910i is assembled
with diverse sensor type (IR; UV; UVIR; PYR), and mounted to the burner with different
means to gather the flame:
– LOS (Line Of Sight) for direct view to the target flame.
– FOC (Fiber Optic Cable) for indirect view of the target flame through optical cable.
8VZZ005286 B 25
1 Introduction
1.3 Split (Conventional) Vs Integrated Architecture
To Next Page
