ABB Uvisor SF910i - Page 168

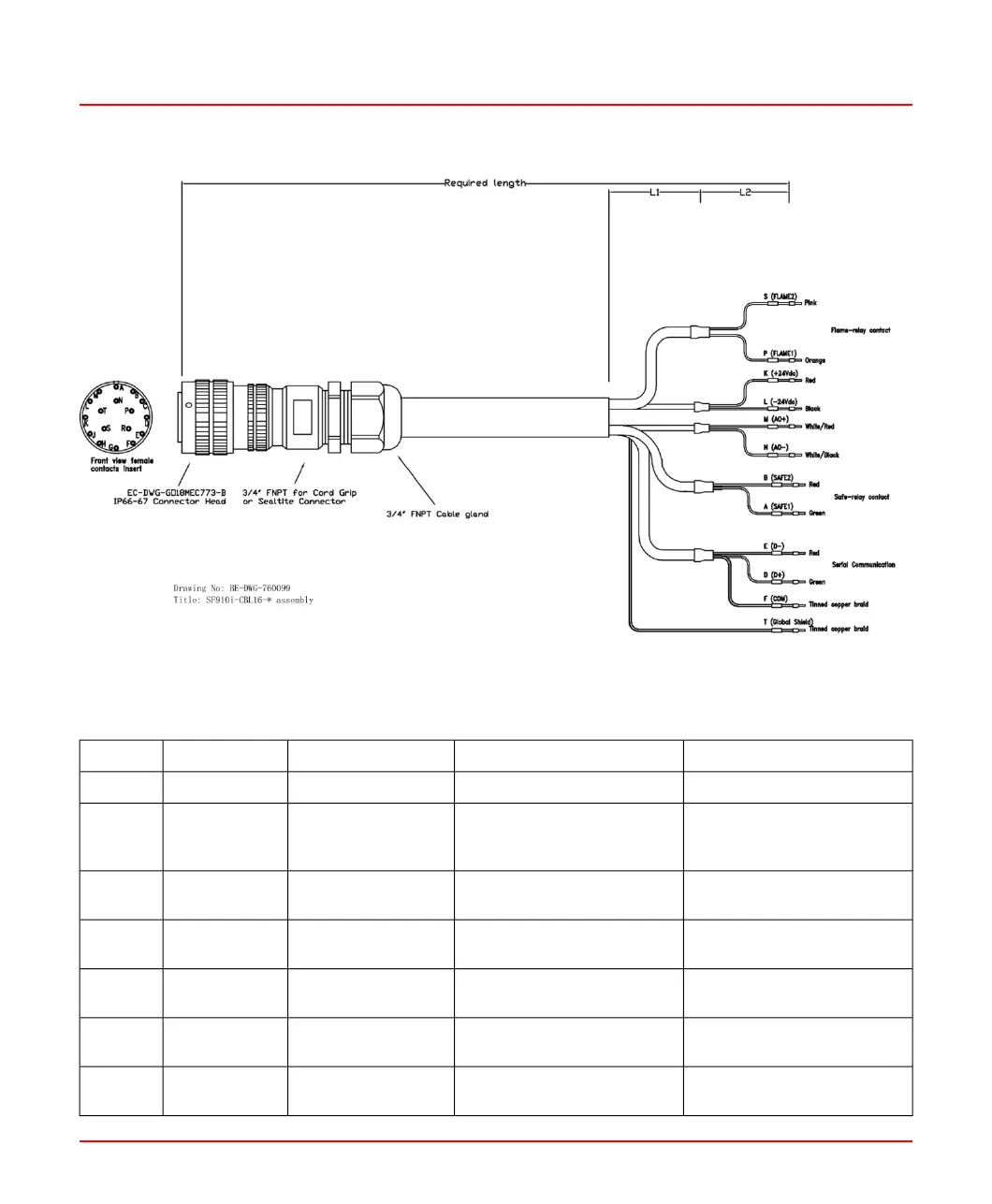

Figure F.2: ABB Standard Tail Cable for SF910i
DescriptionSignal Name
Section mm
2
Wire ColorPIN
Power supply positive input+24V
DC
0.5RedK
Return of power supply and
ground reference for all
internal electronics
GND0.5BlackL
Analog output (4-20mA)
positive
AO
+
0.25White/RedM
Analog output (4-20mA)
negative
AO
_
0.25White/BlackN
Serial communication port,
data TX/RX, and positive
D
+
0.25GreenD
Serial communication port,
data TX/RX, and negative
D
_
0.25RedE
Ground reference for serial
communication port
GNDTinned copperGreen/Light
blue
F
8VZZ005286 B 168
F Cables
F.3 ABB Special Cables
