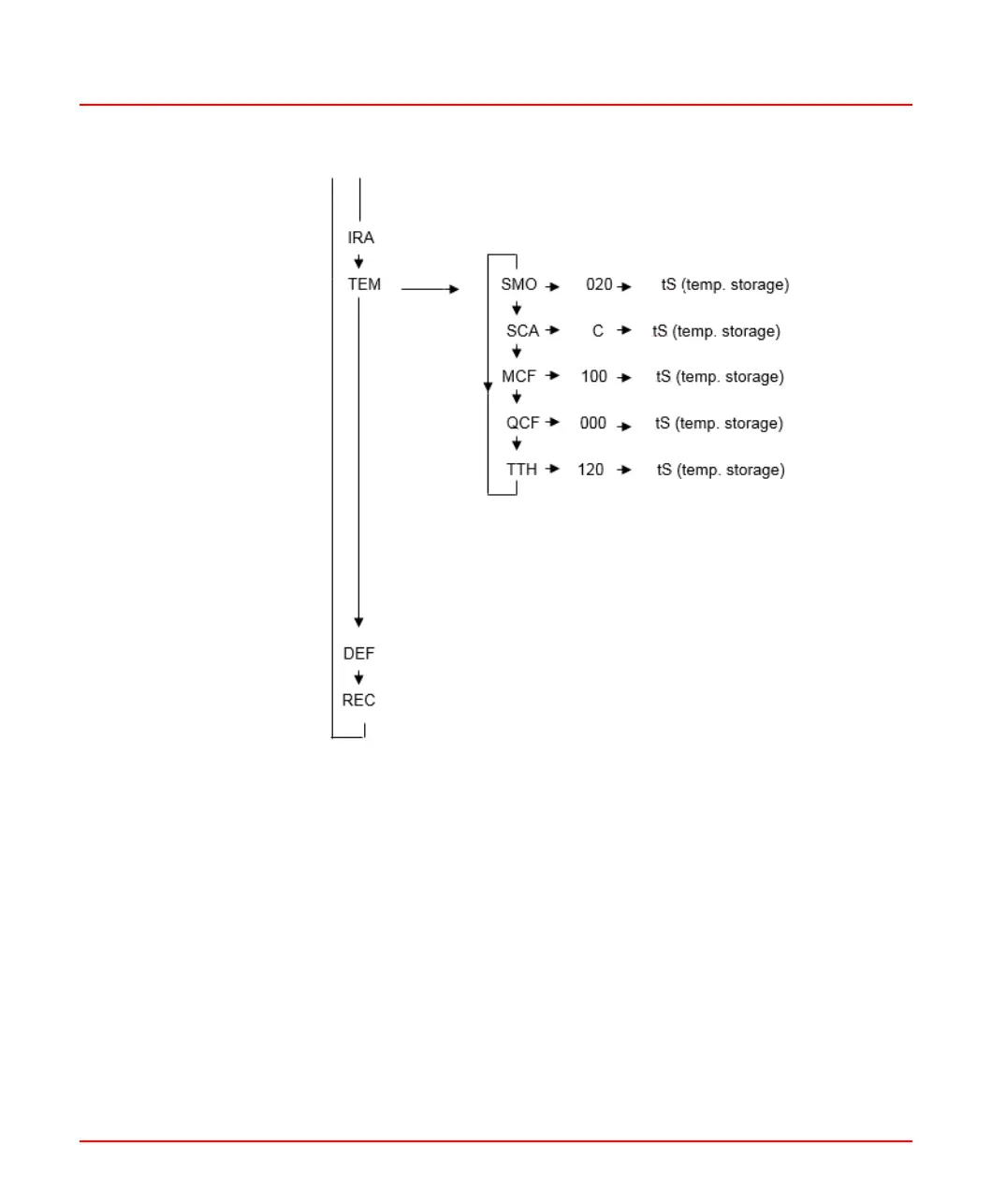

Figure 14.1: Flame Temperature Parameters Local Menu
Although the IRT sensor is calibrated and does not need further tuning, exceptionally,
the m and q above items are inserted to allow to experienced staff to do additional tuning,
if the current job could require it.
The default settings for the above new fields are:
1. Flame temperature calculation average set to 20 seconds.
2. Flame temperature scale set to Celsius.
3. Flame temperature relay threshold set to 1200 degrees. For local display needs,
the displayed value is the real one divided by 10.
As shown below, the user can configure the flame temperature settings also using the
Flame Explorer tool vers.5.5.2.
