Operation Manual / 4 Product description / A200-L

8 Disassembly and assembly / 8.9 Dismantling the nozzle ring (≤ A275-

8.9 Dismantling the nozzle ring (

≤

A275-L)

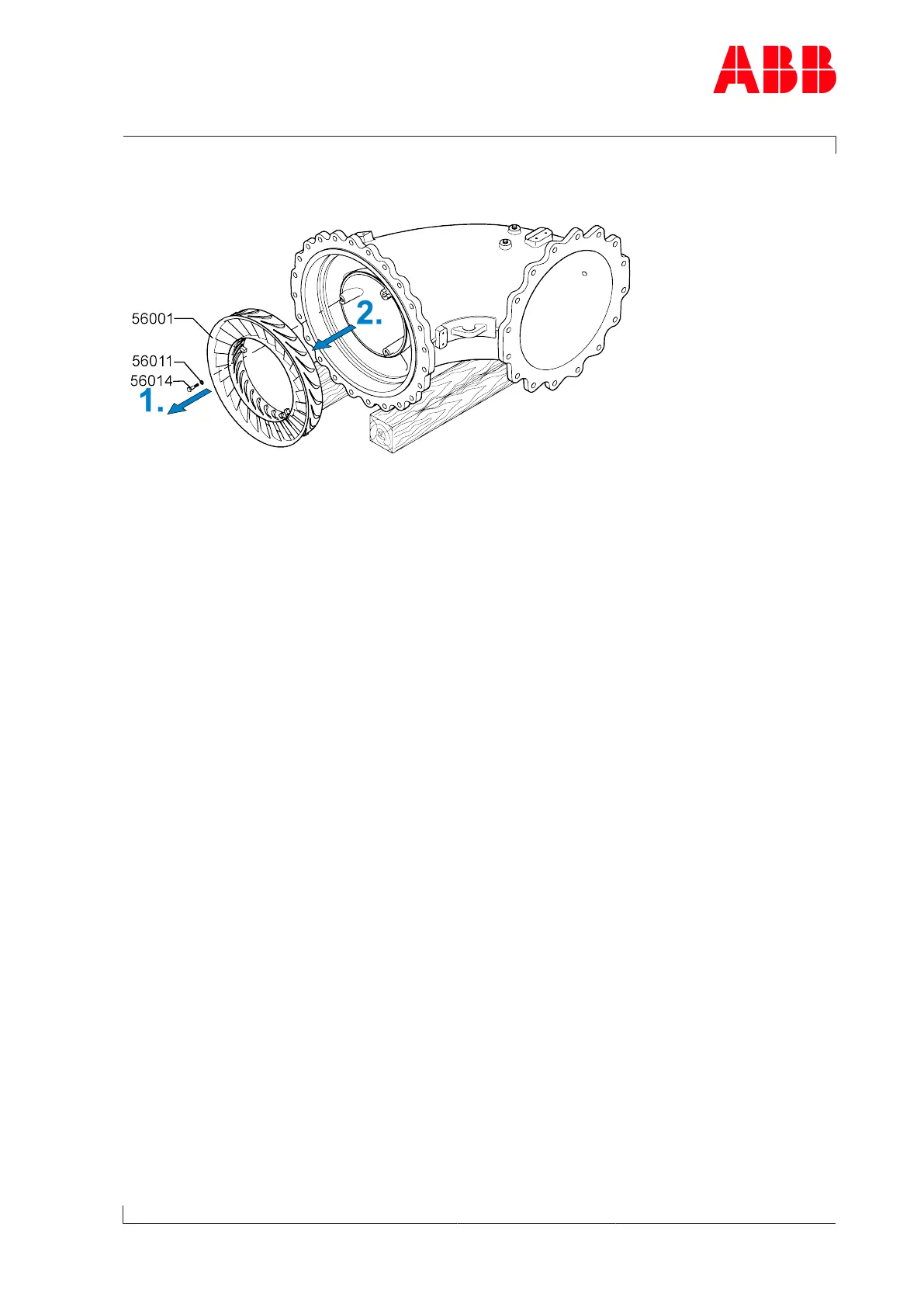

Fig.43: Dismantling the nozzle ring (A275-L and smaller)

1. Loosen screws(56014) and remove with washers(56011).

2. Remove and put down nozzle ring(56001).

Page 71 / 110
