ABB XAC22682 - Fitting the Nozzle Ring (A280-L); Fig. 51: Fitting the Nozzle Ring (A280-L)

To Next Page

To Previous Page

Operation Manual / 4 Product description / A200-L

8 Disassembly and assembly / 8.15 Fitting the nozzle ring (A280-L)

8.15 Fitting the nozzle ring (A280-L)

u Coat the screw threads with high-temperature grease.

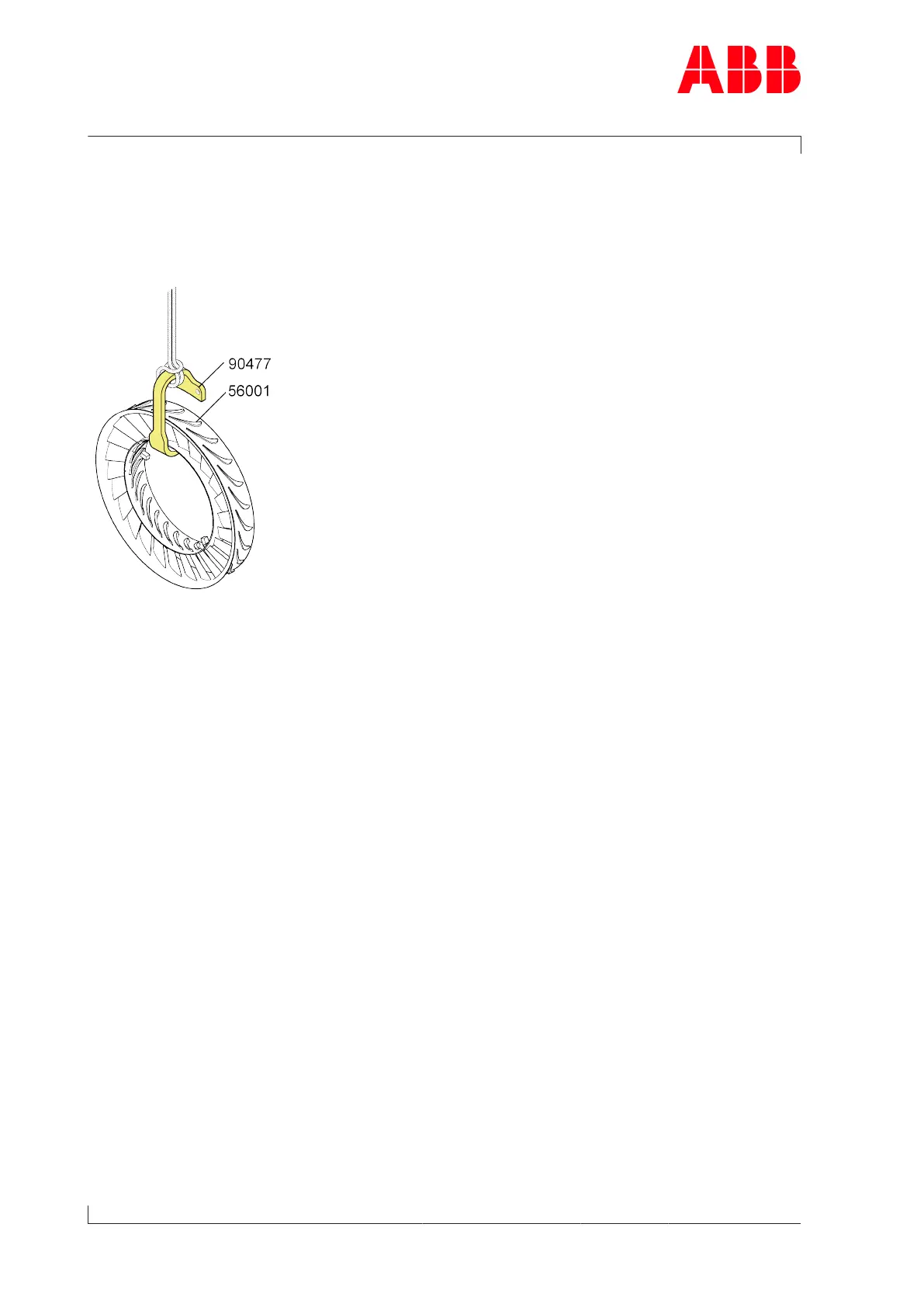

Fig.51: Fitting the nozzle ring (A280-L)

u Use lifting gear to secure the nozzle ring (56001) on the nozzle ring holder (90477) and

transport it.

Page 78 / 110
