Operation Manual / 4 Product description / A200-L

6 Periodic maintenance / 6.5 Cleaning the turbine during operation

6.5.2 Procedure for dry cleaning the turbine

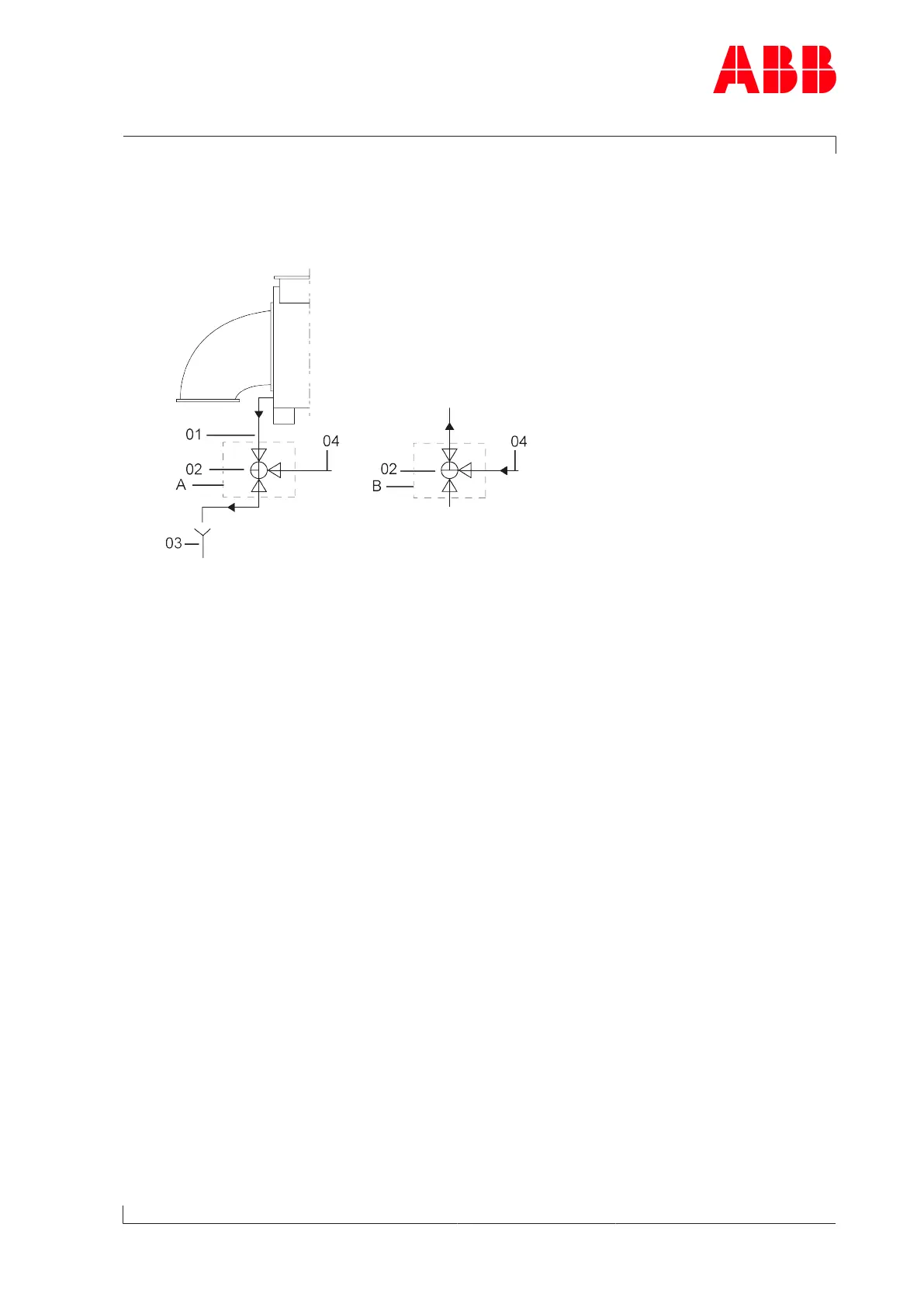

Dry cleaning device

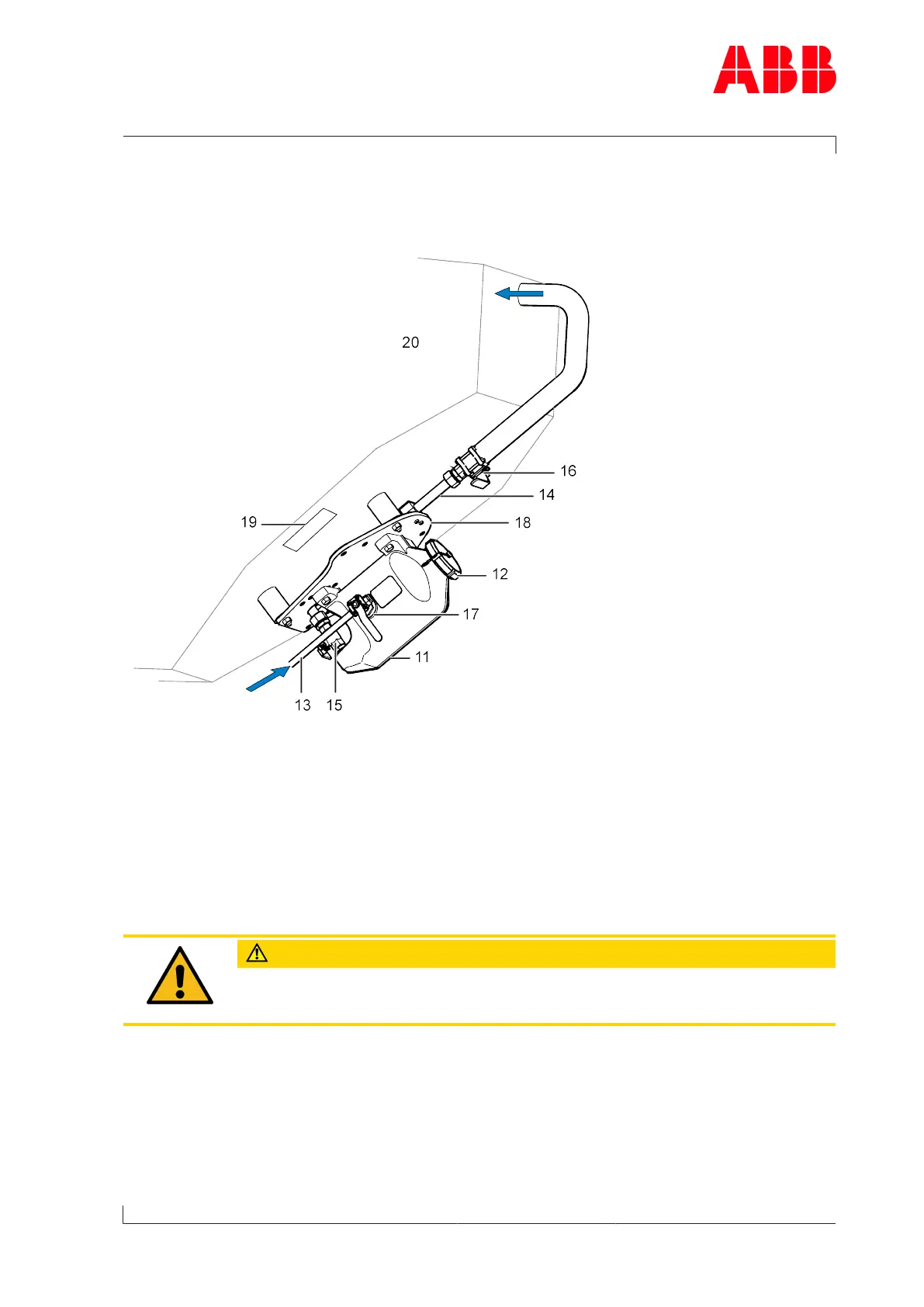

Fig.20: Overview of dry cleaning device

11 Granulate container (51702) 16 Protection valve [closed] (51713)

12 Cover cap (51703) 17 Pressurised air valve [venting] (51704)

13 Pressurised air supply [4 ... 7 bar] 18 Plate

14 Piping 19 Cleaning instructions (51717)

15 On-Off valve [closed] (51705) 20 Gas inlet casing, insulated

CAUTION

Protecting the pressurised air system

u Protect the pressurised air system against overpressure (> 7 bar).

Page 41 / 110
