ABB XAC22682 - Fitting Wall Insert; Fig. 56: Positioning Wall Insert

To Next Page

To Previous Page

Operation Manual / 4 Product description / A200-L

8 Disassembly and assembly / 8.19 Fitting wall insert

8.19 Fitting wall insert

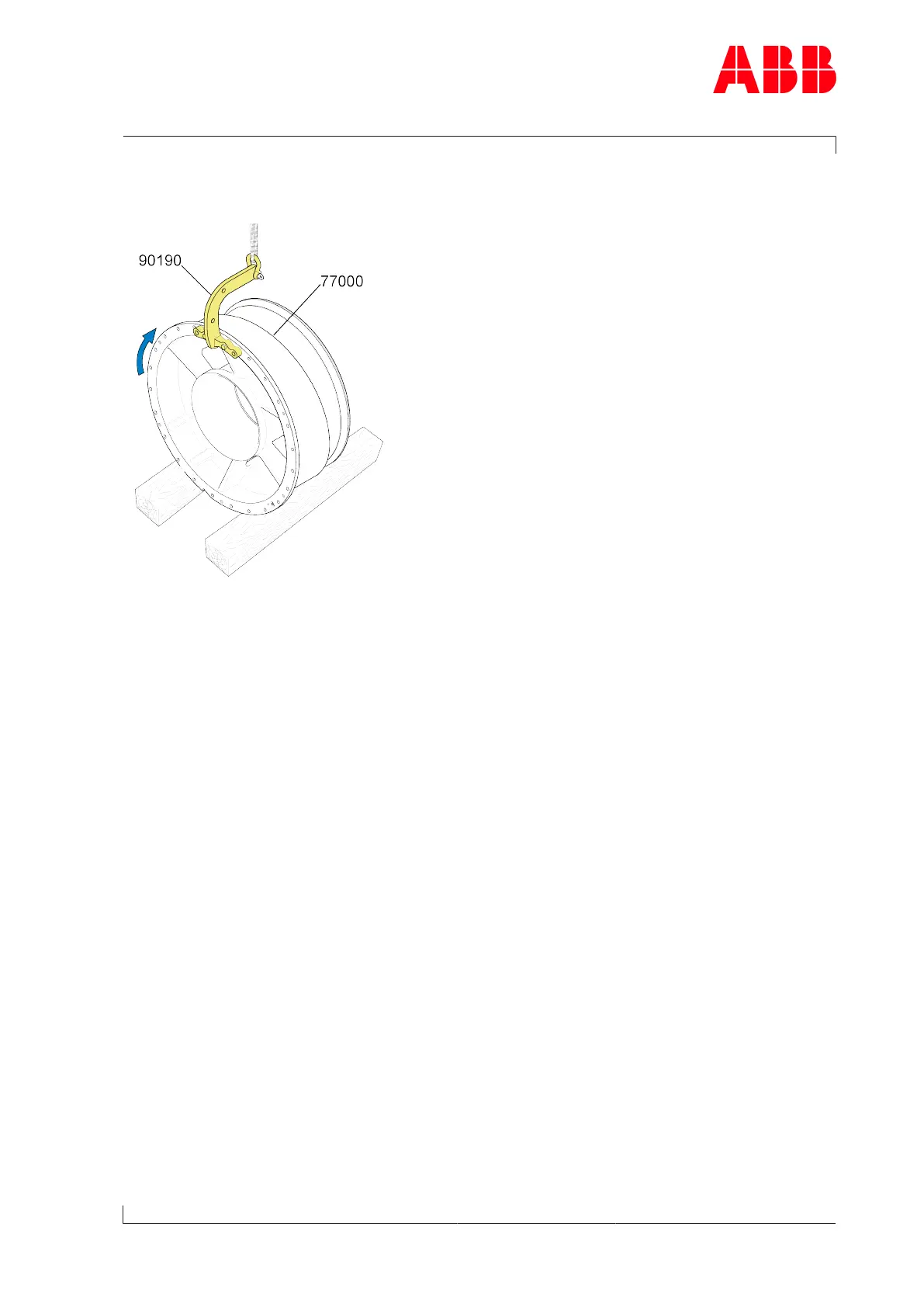

Fig.56: Positioning wall insert

u Carefully bring wall insert (77000) into vertical position with the lifting device (90190).

Page 83 / 110
