Operation Manual / 4 Product description / A200-L

8 Disassembly and assembly / 8.3 Disassembly and assembly of the

filter silencer casing

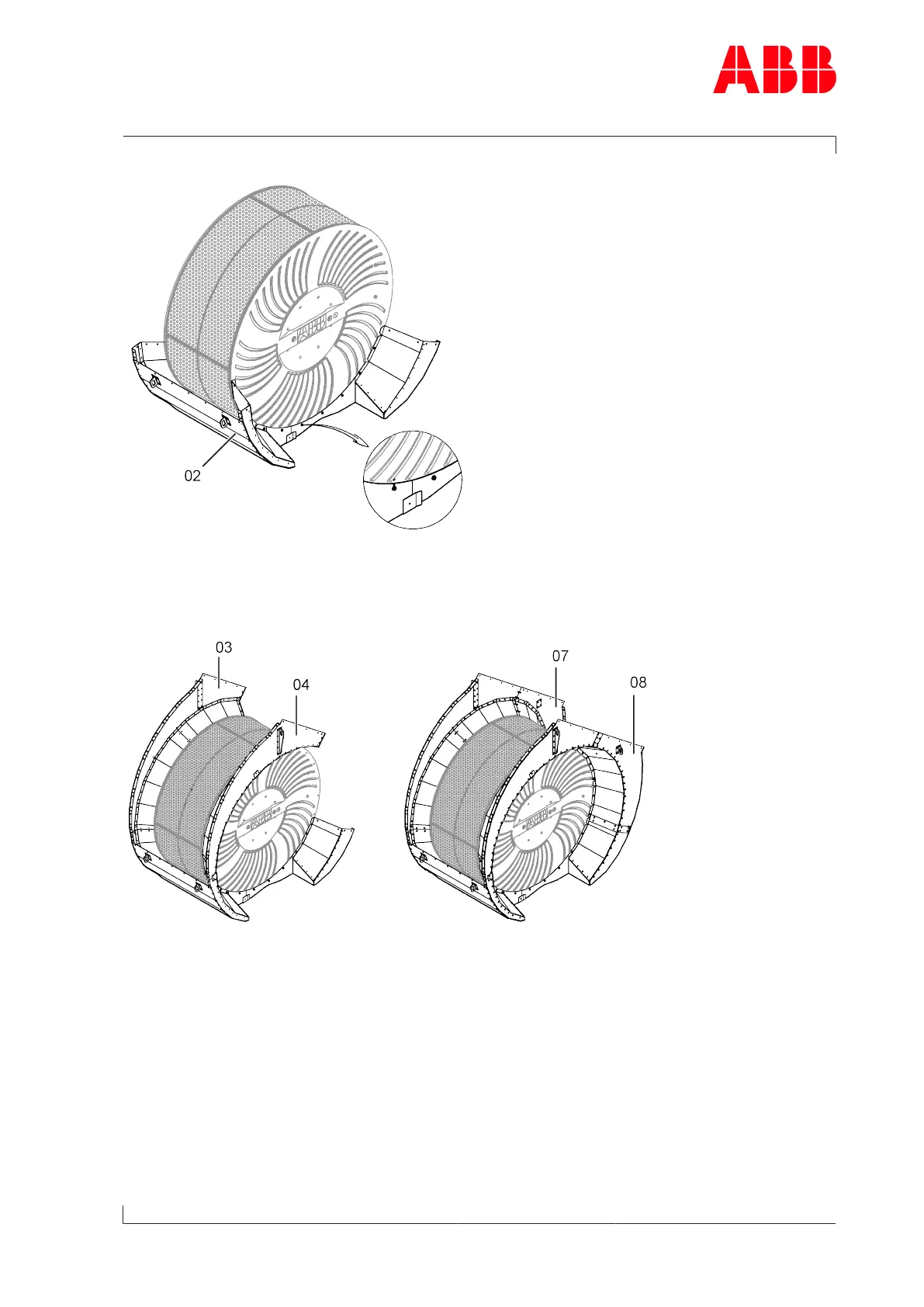

Fig.25: Fitting the filter silencer casing

u Fit the bottom part(02) with the screws on the filter silencer.

Fig.26: Fitting the filter silencer casing

u Fit the side parts(03) and (04) with the screws on the filter silencer and on the bottom

part.

u Fit the side parts(07) and (08) with the screws on the filter silencer, on the bottom part,

and on the side parts(03, 04).

Page 57 / 110
