Operation Manual / 4 Product description / A200-L
8 Disassembly and assembly / 8.5 Dismantling wall insert and diffuser
© Copyright 2018 ABB. All rights reserved.
HZTL4036_EN
Revision M
August 2018

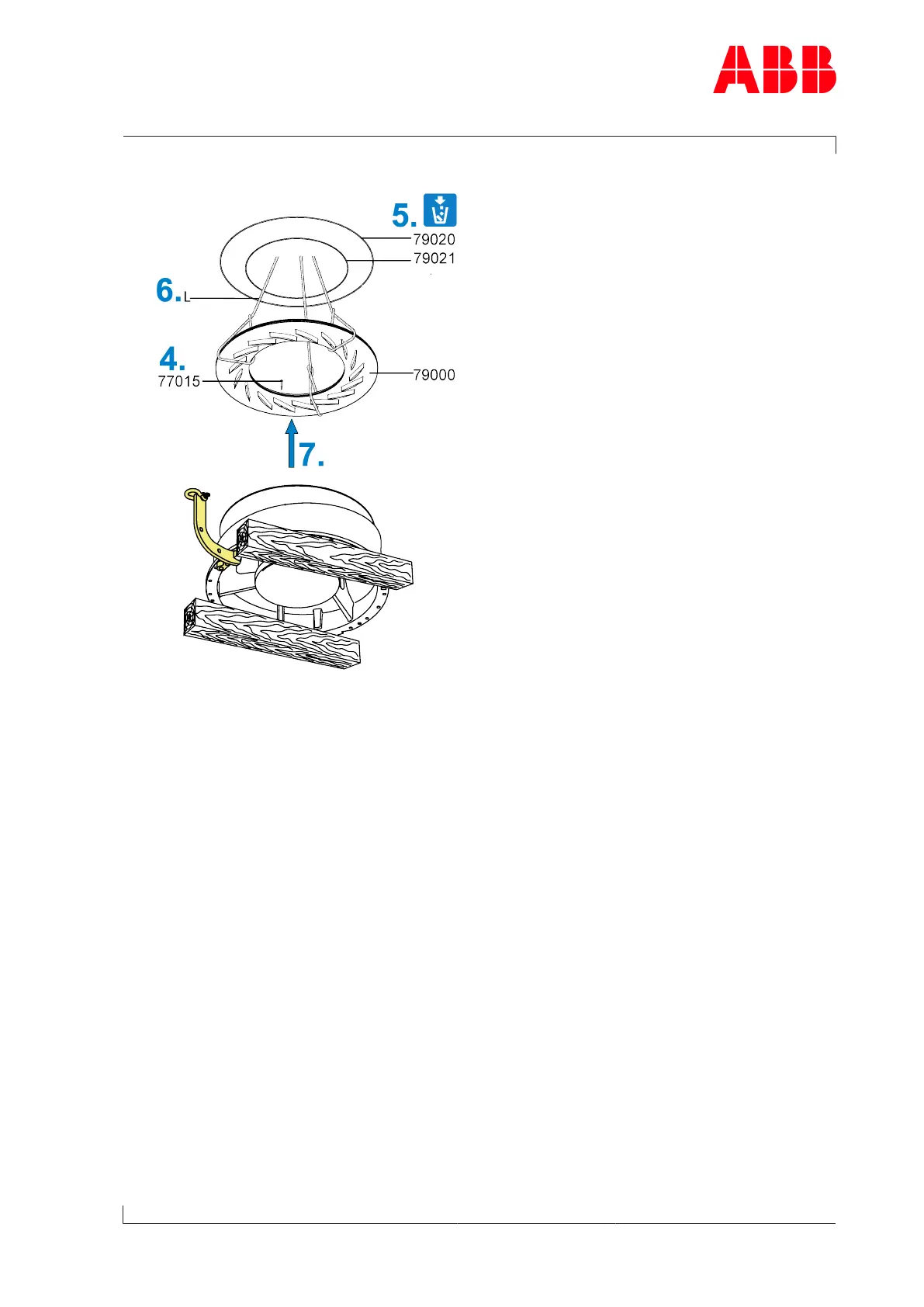

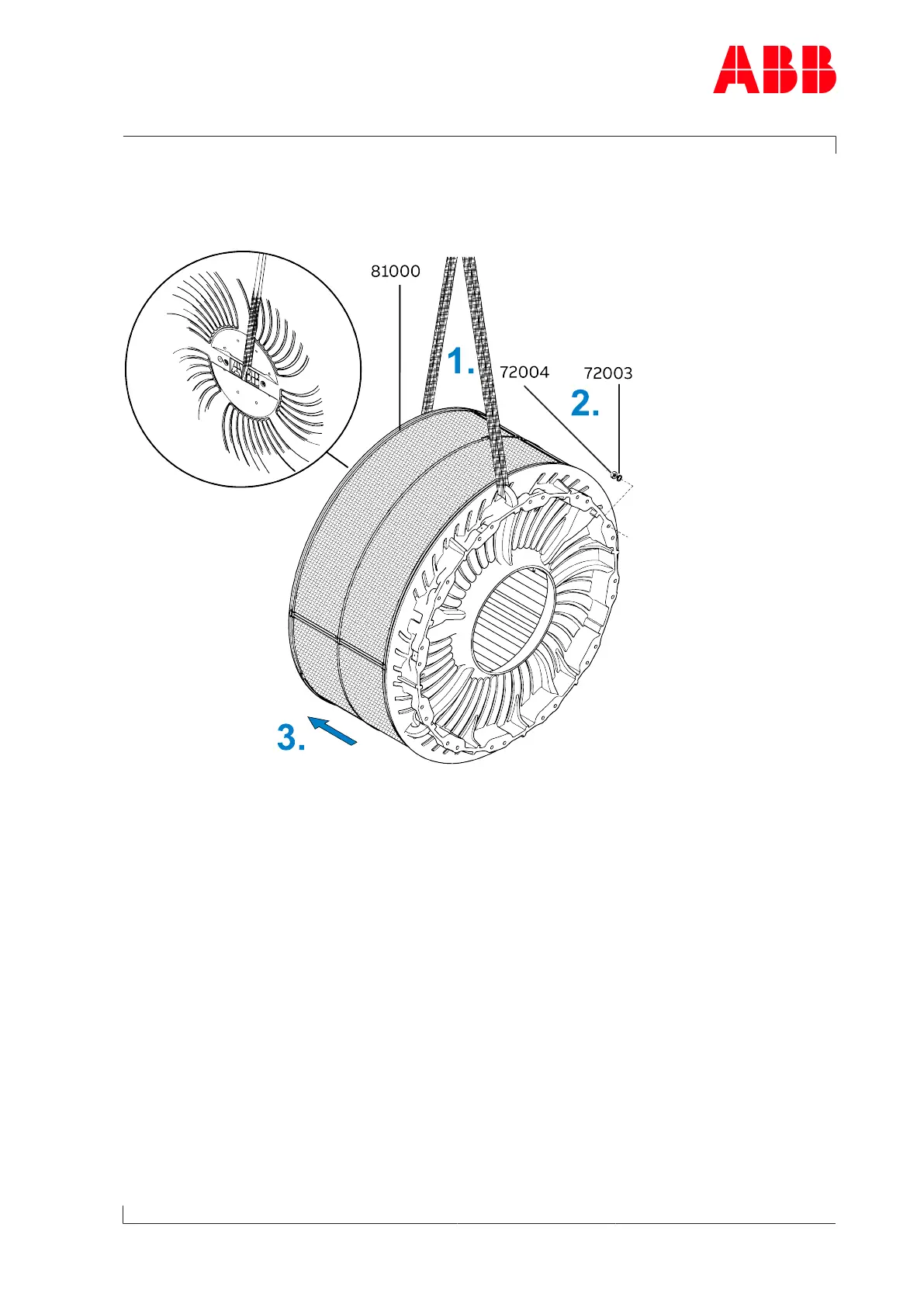

Fig.35: Dismantling the diffuser
4.
Loosen and remove screws(77015).
5.
Remove O-rings(79020, 79021).
6.
Attach lifting gear (L) to the diffuser(79000).
7.
Remove and put down diffuser.
Page 63 / 108
90
92
