Operation Manual / 4 Product description / A200-L

8 Disassembly and assembly / 8.11 Dismantling the nozzle ring (A280-

8.11 Dismantling the nozzle ring (A280-L)

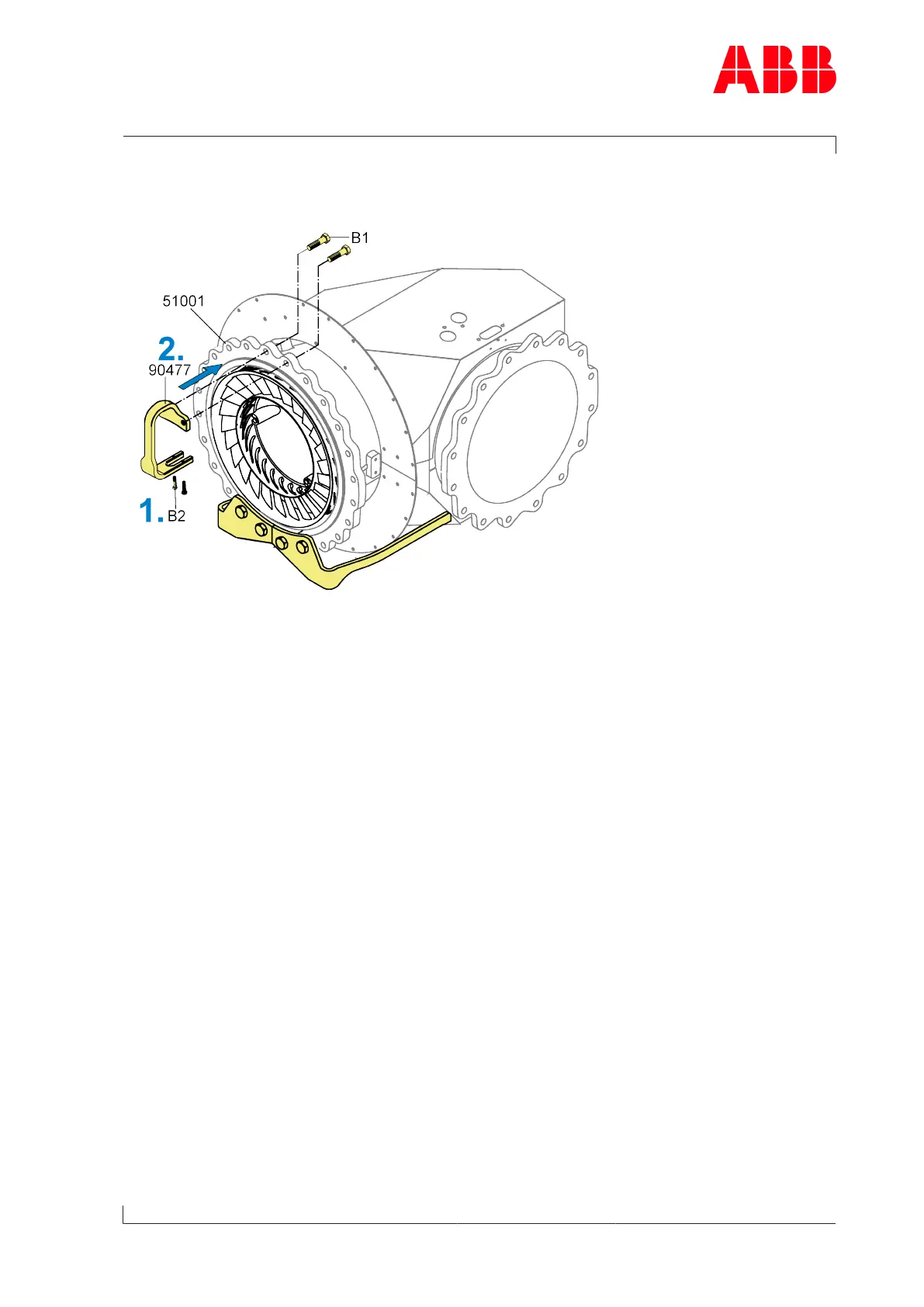

Fig.45: Fitting the nozzle ring holder

1. Remove screws (B

2. Fit the nozzle ring holder (90477) with screws (B

) at the top of the flange of the gas inlet

casing (51001).

Page 73 / 110
