Operation Manual / 4 Product description / A200-L

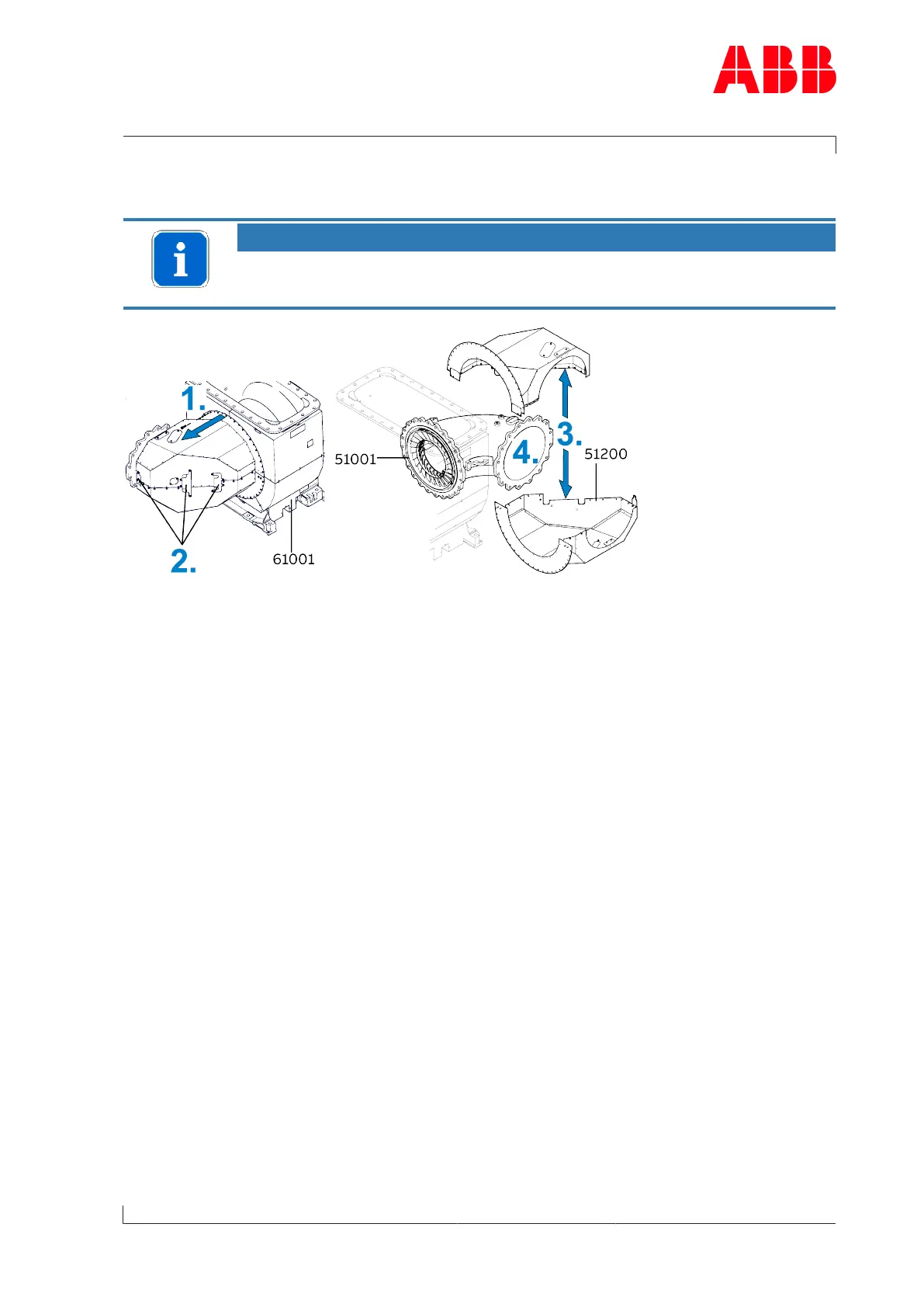

8 Disassembly and assembly / 8.8 Dismantling the gas inlet casing,
nozzle ring (A280-L)
© Copyright 2018 ABB. All rights reserved.
HZTL4036_EN
Revision M
August 2018
Dismantling the nozzle ring

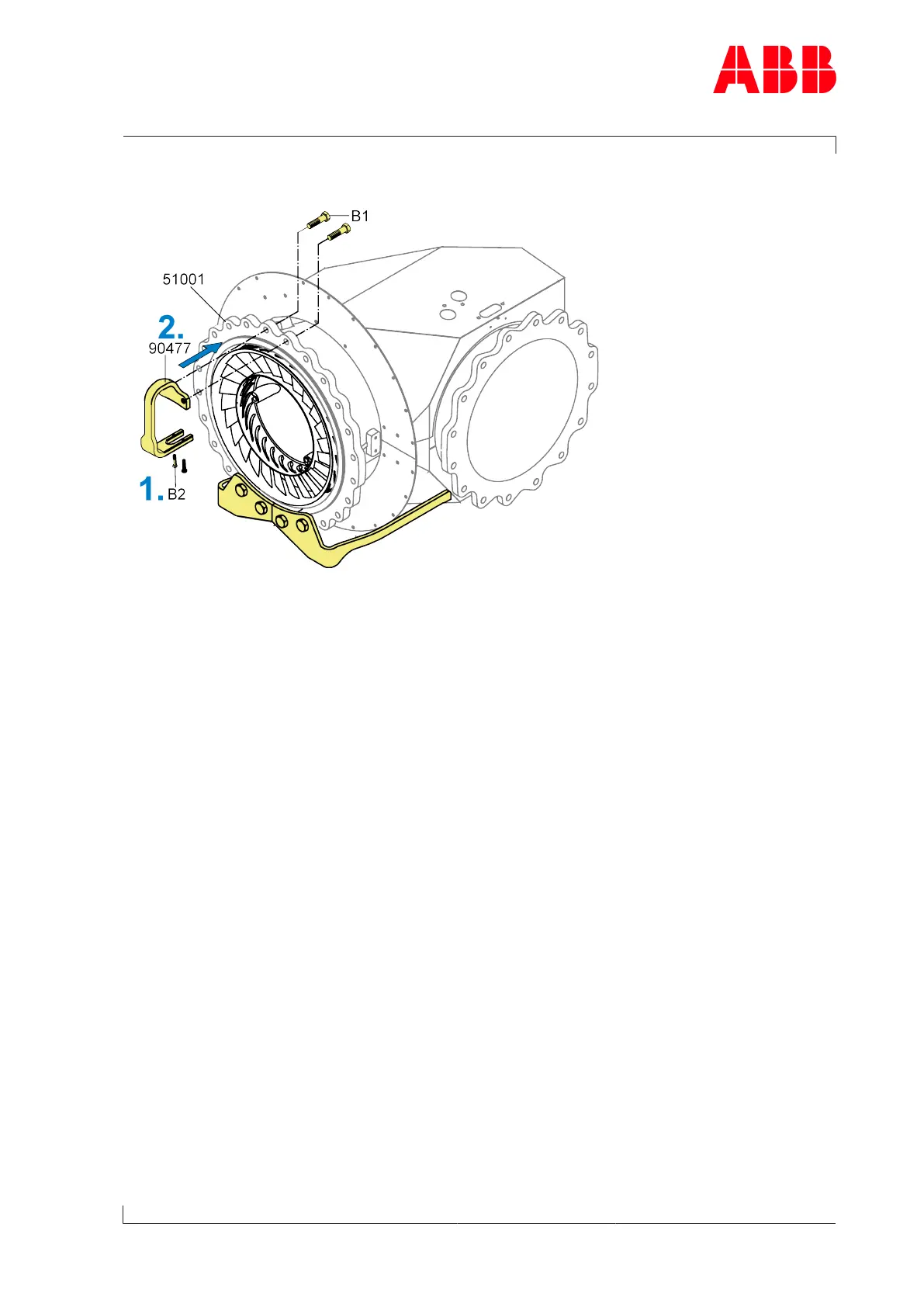

Fig.43: Fitting the nozzle ring holder (A280-L)
1.
Remove screws (B
2
).
2.
Fit the nozzle ring holder (90477) with screws (B
1
) at the top of the flange of the gas inlet
casing (51001).
Page 71 / 108
98
100
