Operation Manual / 4 Product description / A200-L

8 Disassembly and assembly / 8.5 Dismantling wall insert and diffuser

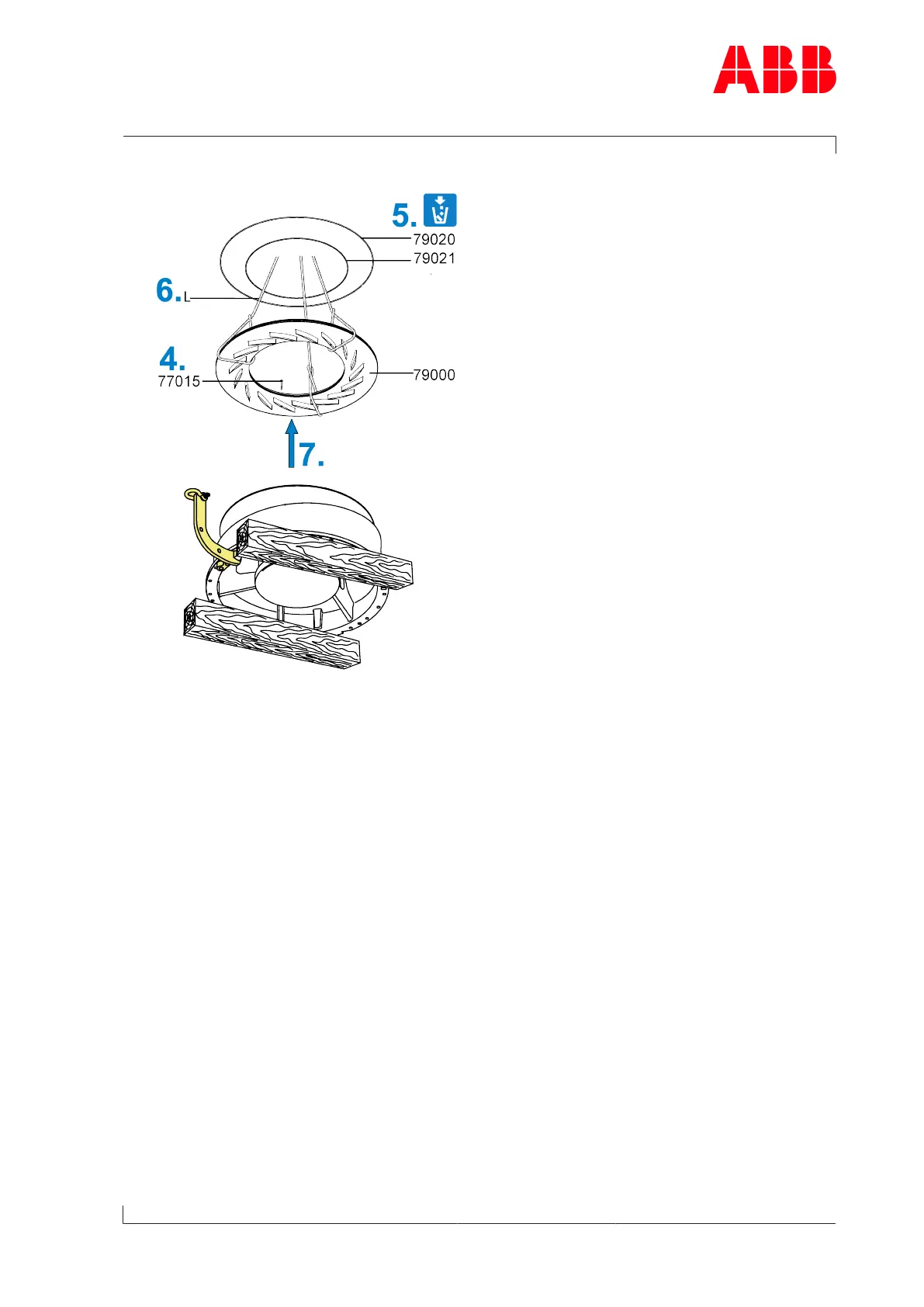

Fig.39: Dismantling the diffuser

4. Loosen and remove screws(77015).

5. Remove O-rings(79020, 79021).

6. Attach lifting gear (L) to the diffuser(79000).

7. Remove and put down diffuser.

Page 67 / 110
