Operation Manual / 4 Product description / A200-L

2 Removal and installation / 2.3 Installing the turbocharger

2.3 Installing the turbocharger

2.3.1 Placing the turbocharger on the bracket

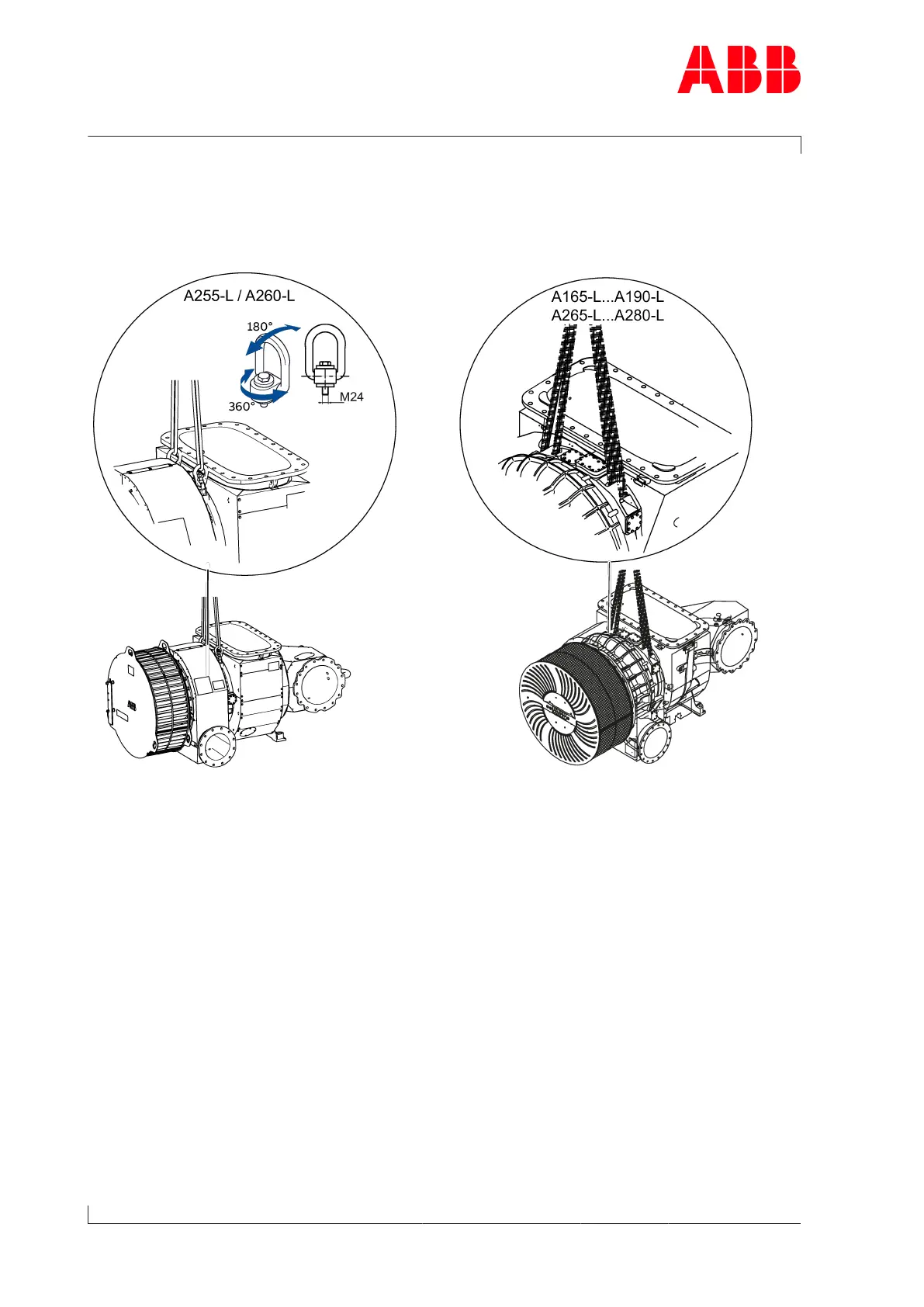

Fig.5: Placing the turbocharger

u Remove covers from the oil connections.

u Align turbocharger and place on engine bracket.

u Tighten the fixing screws (Steps for fastening the turbocharger →11) while only slightly

loosening the lifting gear.

u Remove lifting gear from turbocharger.

u Connect cable to speed sensor.

u Connect all gas, air and oil pipes.

Page 10 / 110
