ABB XAC22682 - Fig. 16: Attaching New Filter Ring; Fig. 17: Fitting New Filter Ring

Operation Manual / 4 Product description / A200-L
6 Periodic maintenance / 6.3 Changing the filter strip on the filter si-
lencer casing
© Copyright 2020 ABB. All rights reserved. HZTL4036_EN Rev.Q July 2020

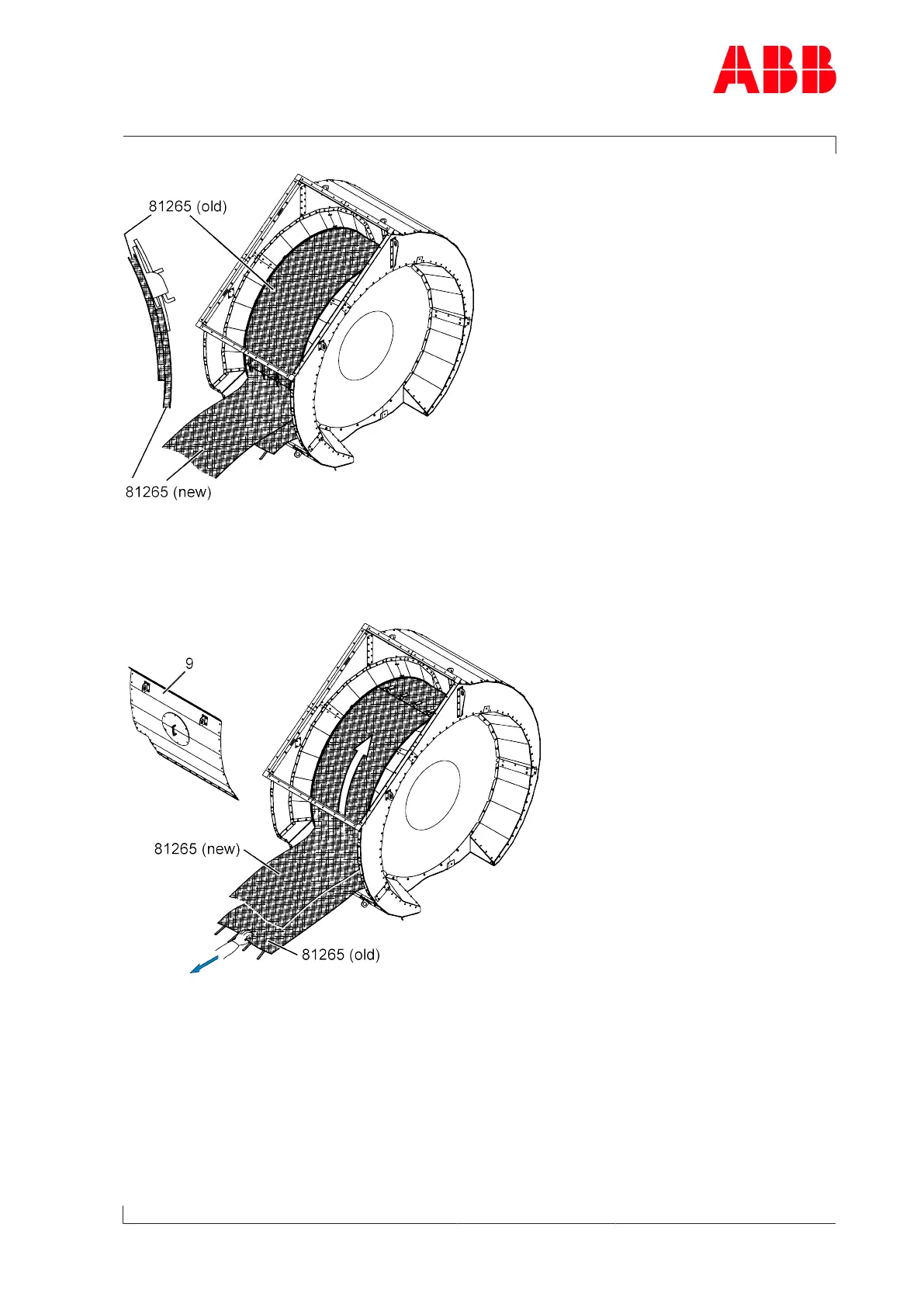

Fig.16: Attaching new filter ring
u Attach the new filter ring (81265) on the filter ring to be replaced so they overlap.
Fig.17: Fitting new filter ring
u Pull on the old filter ring until the new filter ring is completely wrapped around the filter
silencer.
u Undo the connection between the new and the old filter ring.
u Fasten the newly installed filter ring (81265), then fit circumferential part (9).
Page 35 / 110
