ABB XAC22682 - Fig. 59: Fitting the Filter Silencer; Table 42: Tightening Torque (72004)

Operation Manual / 4 Product description / A200-L
8 Disassembly and assembly / 8.20 Fitting the filter silencer
© Copyright 2020 ABB. All rights reserved. HZTL4036_EN Rev.Q July 2020
8.20.2 Fitting the filter silencer (welded)

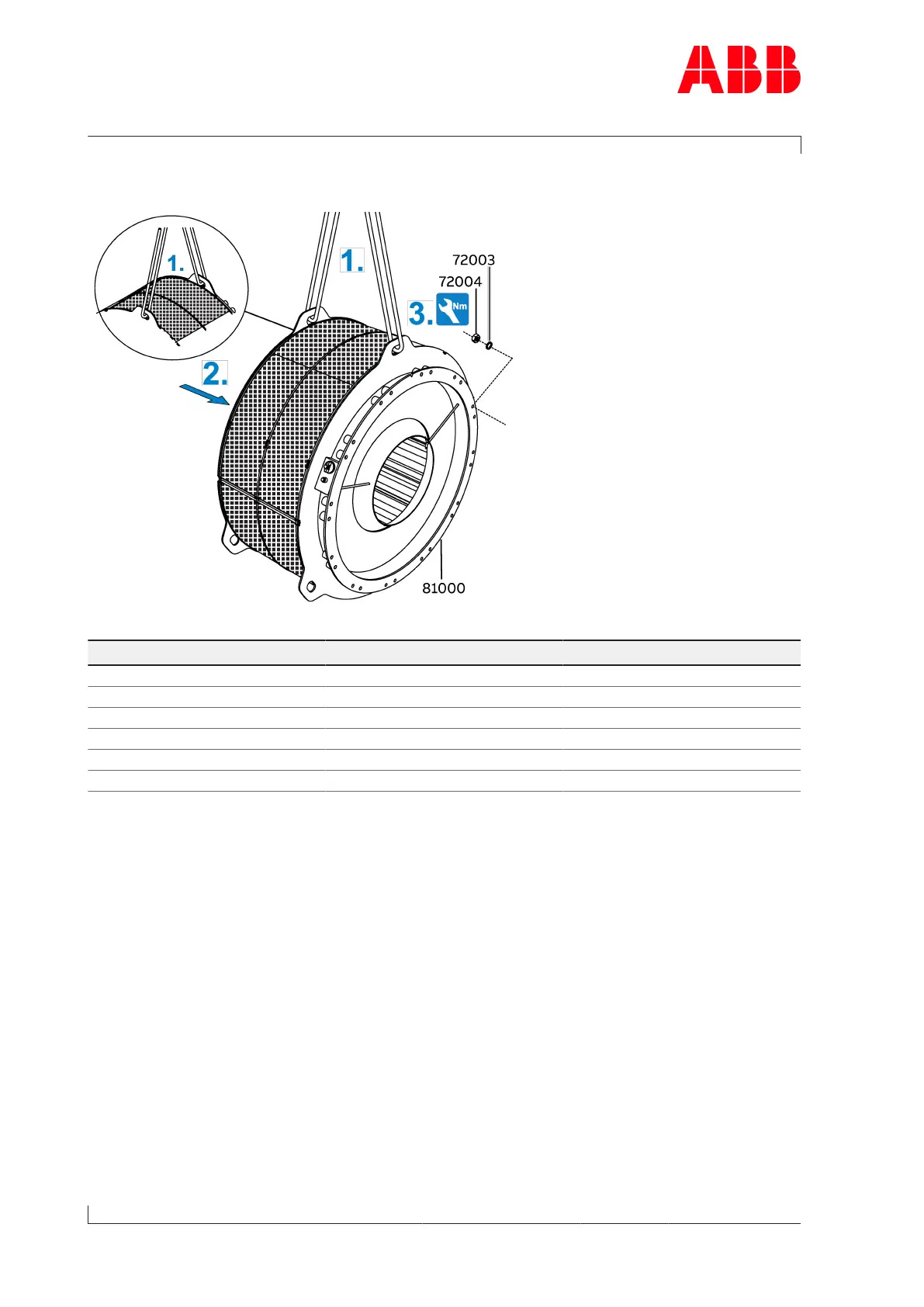

Fig.59: Fitting the filter silencer
Product Size Tightening torque [Nm]
A255-L M16 265
A260-L M16 265
A265-L M14 130
A270-L M16 200
A275-L M18 300
A280-L M20 420
Table42: Tightening torque (72004)
1. Attach lifting gear to the eyelets of the filter silencer (81000).
2. Position filter silencer on compressor casing.
3. Fit nuts (72004) with washers(72003) and tighten.
u Fit insulation as far as necessary.
Page 88 / 110
