Operation Manual / 4 Product description / A200-L
12 Spare parts / 12.2 View of turbocharger with part numbers
© Copyright 2018 ABB. All rights reserved.
HZTL4036_EN
Revision M
August 2018
12.2

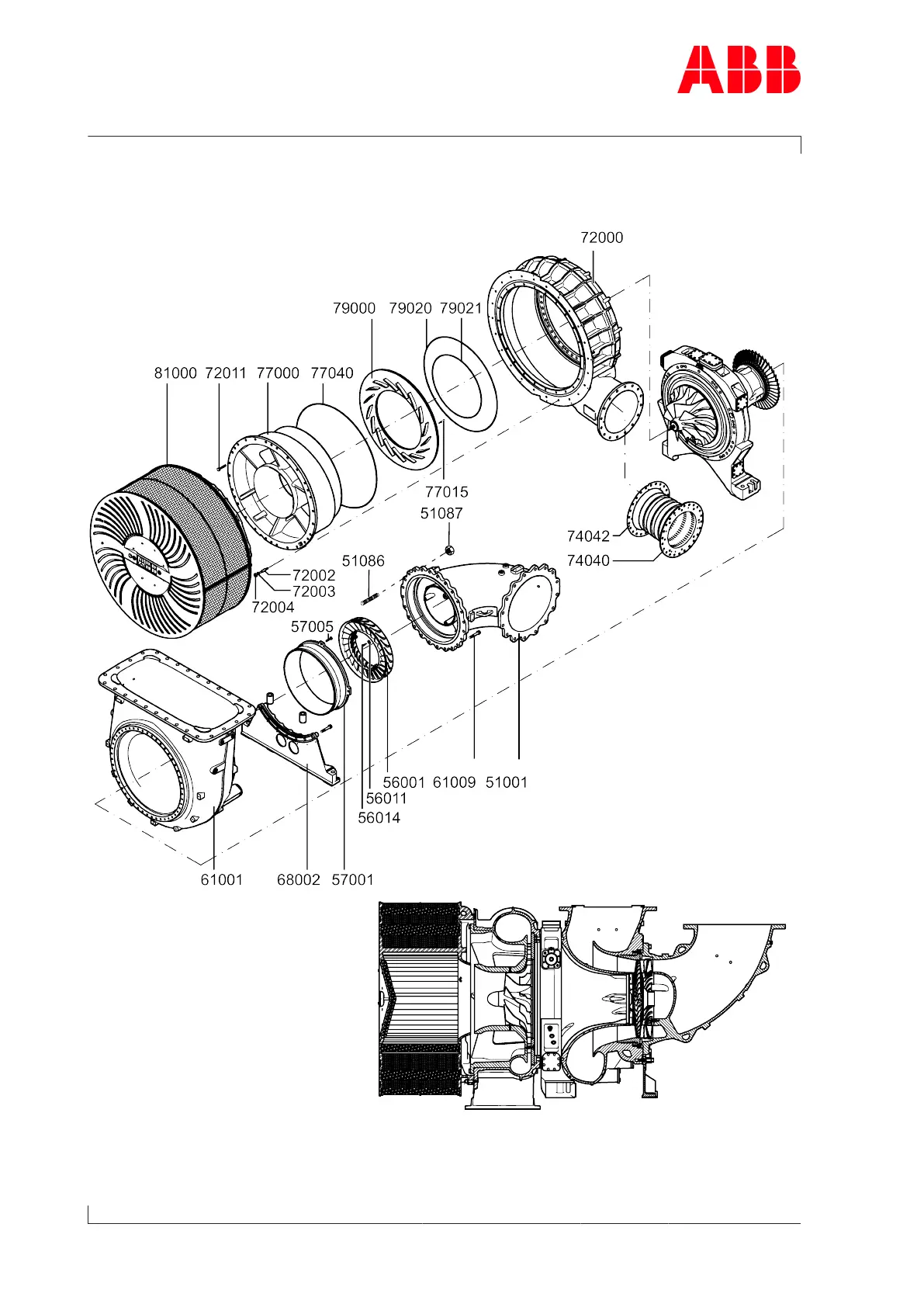

View of turbocharger with part numbers
Fig.65: View of turbocharger with part numbers
Page 102 / 108
129
131
