Operation Manual / 4 Product description / A200-L
9 Taking a turbocharger out of operation / 9.2 Taking defective tur-
bochargers out of operation
© Copyright 2020 ABB. All rights reserved. HZTL4036_EN Rev.Q July 2020
9.2.5 Engines without bypass around the turbocharger
To obtain a higher engine performance, the nozzle ring can be removed if required (see
chapter Disassembly and assembly →52).
Securing the cover ring
If the nozzle ring is removed for emergency operation, the clamping of the cover ring(57001)
to the gas outlet casing must be ensured. In this case, additional washers(01) must be
provided in accordance with the following table. These washers(01) are not supplied by ABB.

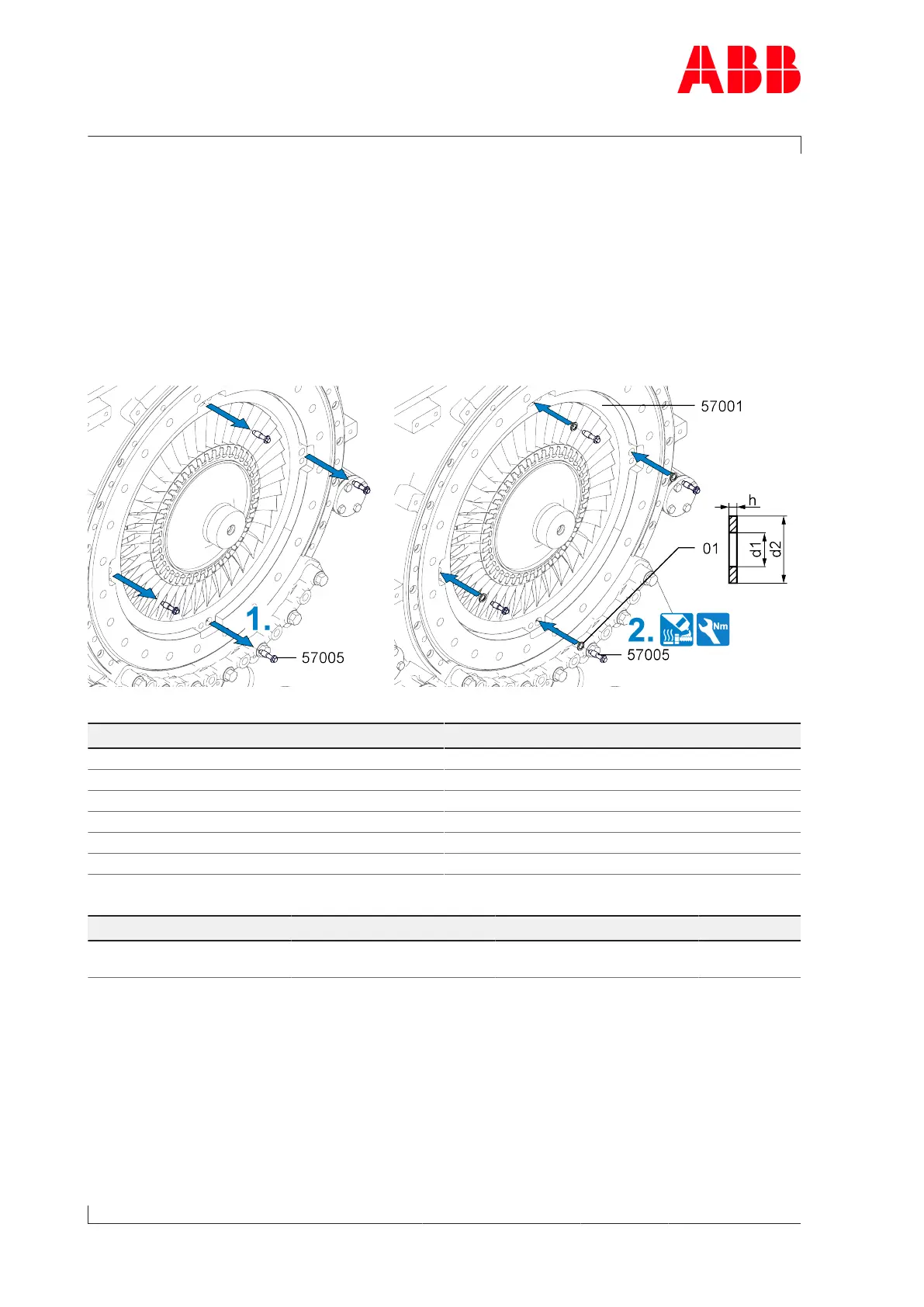

Fig.64: Ensuring clamping of the cover ring
Product h [mm] d1 [mm] d2 [mm]
A255-L 3.5 … 4.0 10 16
A260-L 3.5 … 4.0 10 16
A265-L 3.5 … 4.0 13 20
A270-L 3.5 … 4.0 13 20
A275-L 4.0 … 5.0 17 28
A280-L 4.0 … 5.0 21 34
Table48: Required washers (01)
Part number A255-L A260-L A265-L A270-L A275-L A280-L
57005 M5
6 Nm
M8
20 Nm
M12
50Nm
M12
50Nm
M16
80Nm
M20
160Nm
Table49: Tightening torque (57005)
1. Remove screws(57005).
2. Fit and tighten screws(57005) with high-temperature grease and washers(01) in accord-
ance with the table.
Page 96 / 110
