ABB XAC22682 - Fig. 46: Dismantling the Nozzle Ring; Fig. 47: Put down the Nozzle Ring

Operation Manual / 4 Product description / A200-L
8 Disassembly and assembly / 8.11 Dismantling the nozzle ring (A280-
L)
© Copyright 2020 ABB. All rights reserved. HZTL4036_EN Rev.Q July 2020

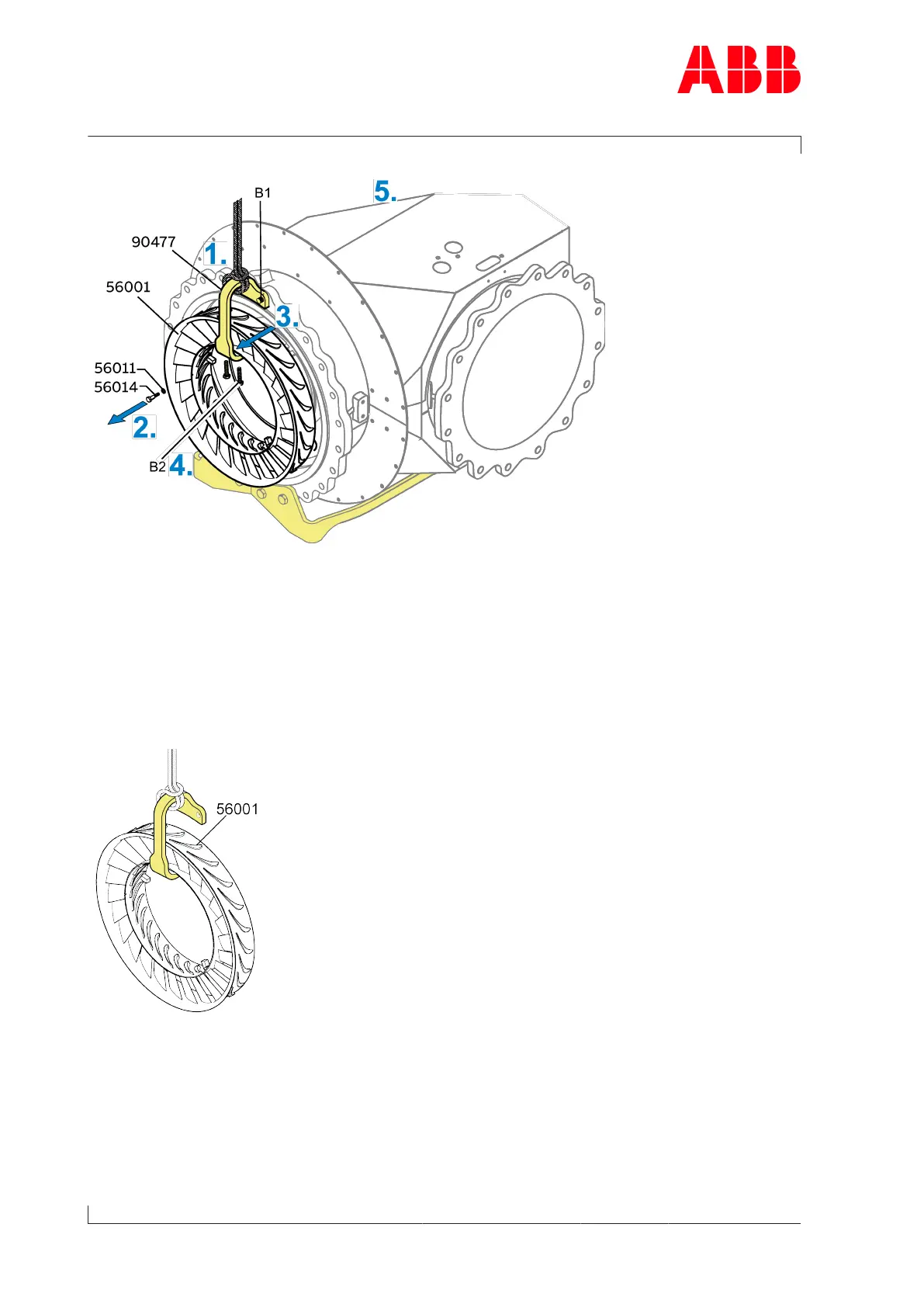

Fig.46: Dismantling the nozzle ring
1. Loop around the nozzle ring holder(90477) with the lifting gear and secure it to the
crane.
2. Loosen screws(56014) and remove with washers(56011).
3. Pull the nozzle ring(56001) towards the front onto the nozzle ring holder.
4. Screw the screws (B
2
) into the nozzle ring holder.
5. Remove screws(B
1
).
Fig.47: Put down the nozzle ring
u Use the crane to remove and put down the nozzle ring (56001).
