ABB XAC22682 - Weights of Assemblies; Fig. 22: Weights of Assemblies; Table 27: Weights of Assemblies [Kg]; Table 28: Weight of Wall Insert [Kg]

Operation Manual / 4 Product description / A200-L
8 Disassembly and assembly / 8.2 Weights of assemblies
© Copyright 2020 ABB. All rights reserved. HZTL4036_EN Rev.Q July 2020
8.2 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

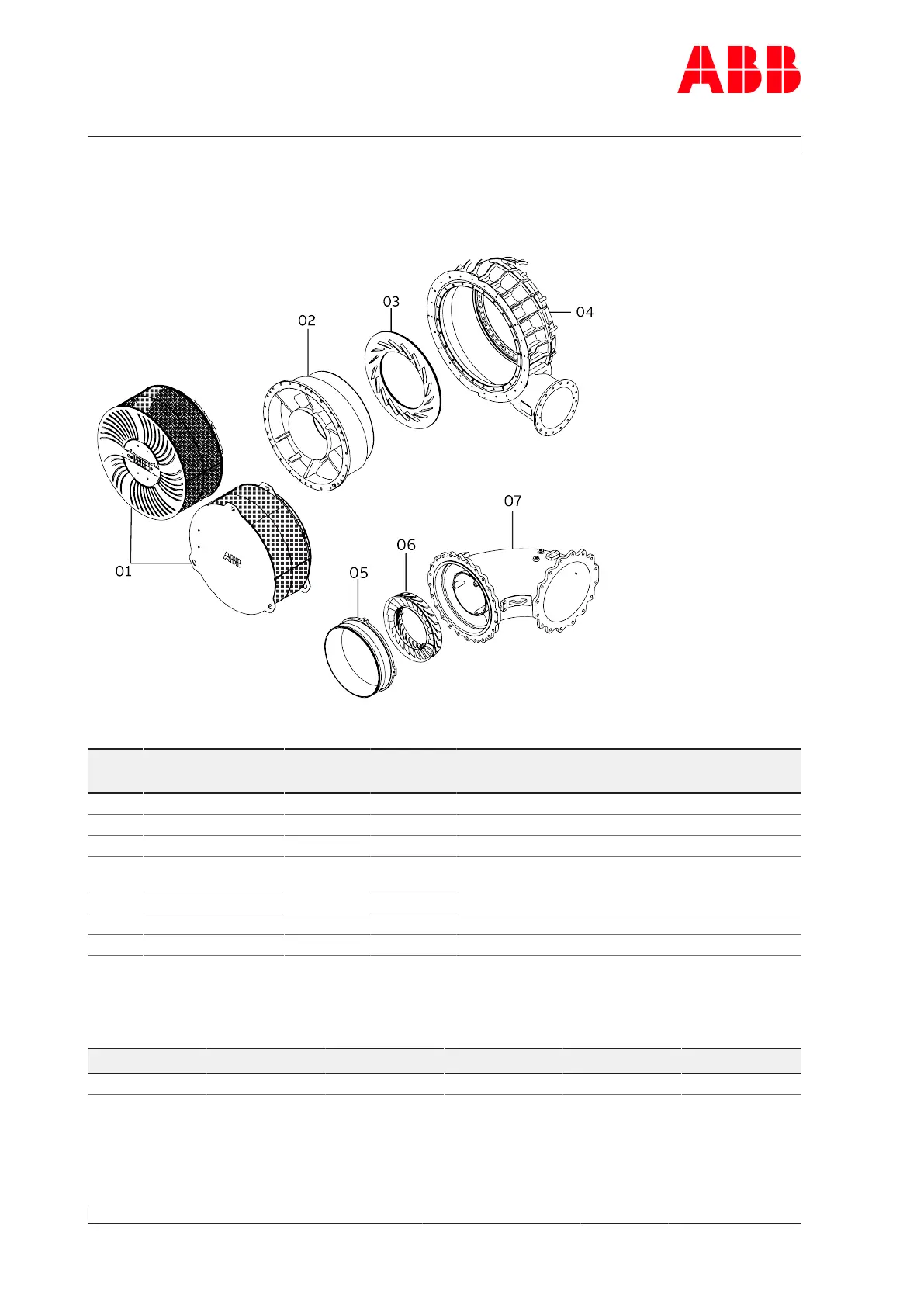

Fig.22: Weights of assemblies
Posi-
tion
Assembly A255-L A260-L A265-L A270-L A275-L A280-L
01 Filter silencer 180 230 350 470 850 1150
02 Wall insert 130 160 300 450 760 1070
03 Diffuser 25 25 40 60 110 160
04 Compressor cas-
ing
165 215 400 620 1030 1350
05 Cover ring 15 15 30 50 75 90
06 Nozzle ring 8 8 10 20 25 50
07 Gas inlet casing 135 135 180 240 380 520
Table27: Weights of assemblies [kg]
The total weight of the complete wall insert is made up of the wall insert and diffuser as-
semblies.
A255-L A260-L A265-L A270-L A275-L A280-L
155 185 330 510 870 1230
Table28: Weight of wall insert [kg]
