Operation Manual / 4 Product description / A200-L

8 Disassembly and assembly / 8.18 Fitting the diffuser

8.18 Fitting the diffuser

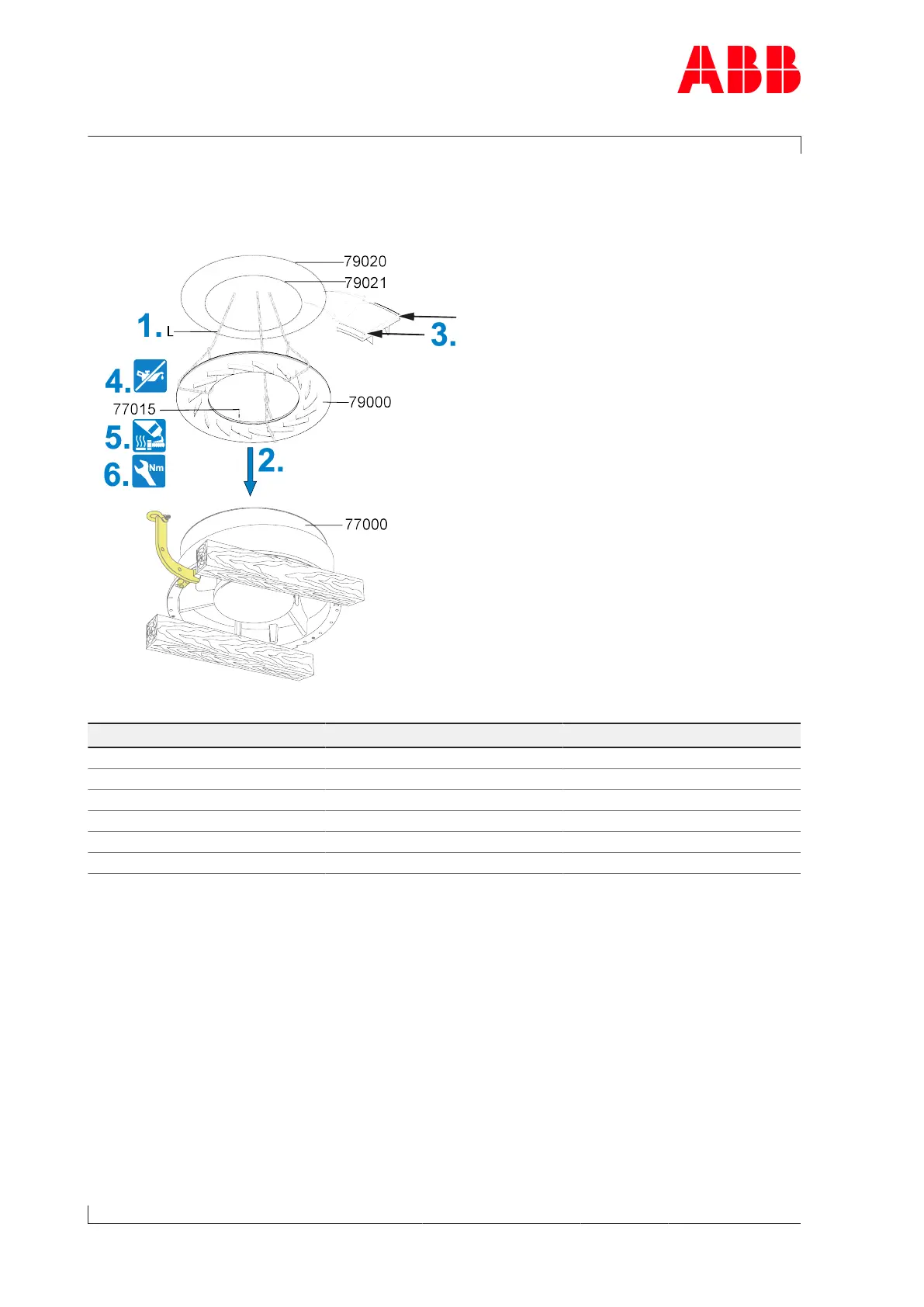

Fig.55: Fitting the diffuser

Product Size Tightening torque [Nm]

A255-L M5 6

A260-L M5 6

A265-L M5 6

A270-L M6 10

A275-L M8 25

A280-L M8 25

Table38: Tightening torque (77015)

1. Attach lifting gear (L) to the diffuser(79000).

2. Carefully place the diffuser on the wall insert(77000), then remove lifting gear.

3. Fit new O-rings(79020, 79021) on the diffuser.

4. Degrease screws(77015) and threaded holes in wall insert.

5. Coat threads of the screws with Loctite® 542.

6. Fit screws.

Page 82 / 110
