11.6.4 16-Bit PPG Mode
The timer 1 has a PPG (Programmable Pulse Generation) function. In PPG mode, T1O/PWM1O pin outputs
up to 16-bit resolution PWM output. This pin should be configured as a PWM output by setting P1FSRL[5:4] to
‘11’ . The period of the PWM output is determined by the T1ADRH/T1ADRL. And the duty of the PWM output is
determined by the T1BDRH/T1BDRL.
T1MS[1:0]
T1POL
Reload
A Match
T1CC
T1EN
P
r
e
s
c
a
l
e
r
fx
M
U
X
fx/2
fx/4
fx/64
fx/512
fx/2048
fx/8
fx/1
Comparator
16-bit Counter
T1CNTH/T1CNTL
16-bit B Data Register
T1BDRH/T1BDRL
Clear
B Match
Edge
Detector
T1ECE
EC1
Buffer Register B
Comparator
16-bit A Data Register
T1ADRH/T1ADRL
T1IFR
INT_ACK
Clear
To interrupt
block
A Match
Buffer Register A
Reload
Pulse
Generator
T1O/
PWM1O
R
T1EN
3
T1CK[2:0]
2
T1EN
T1CRH
1
ADDRESS:BBH
INITIAL VALUE : 0000_0000B
–
T1MS1 T1MS0
– – –
T1CC
–
1 1 – – – X
T1CK2
T1CRL
X
ADDRESS:BAH
INITIAL VALUE : 0000_0000B
T1CK1 T1CK0 T1IFR
–
T1POL T1ECE T1CNTR
X X
X
–
X X X
A Match
T1CC
T1EN
A Match
T1CC
T1EN
NOTE) The T1EN is automatically cleared to logic “0” after one pulse is generated at a PPG one-shot mode.

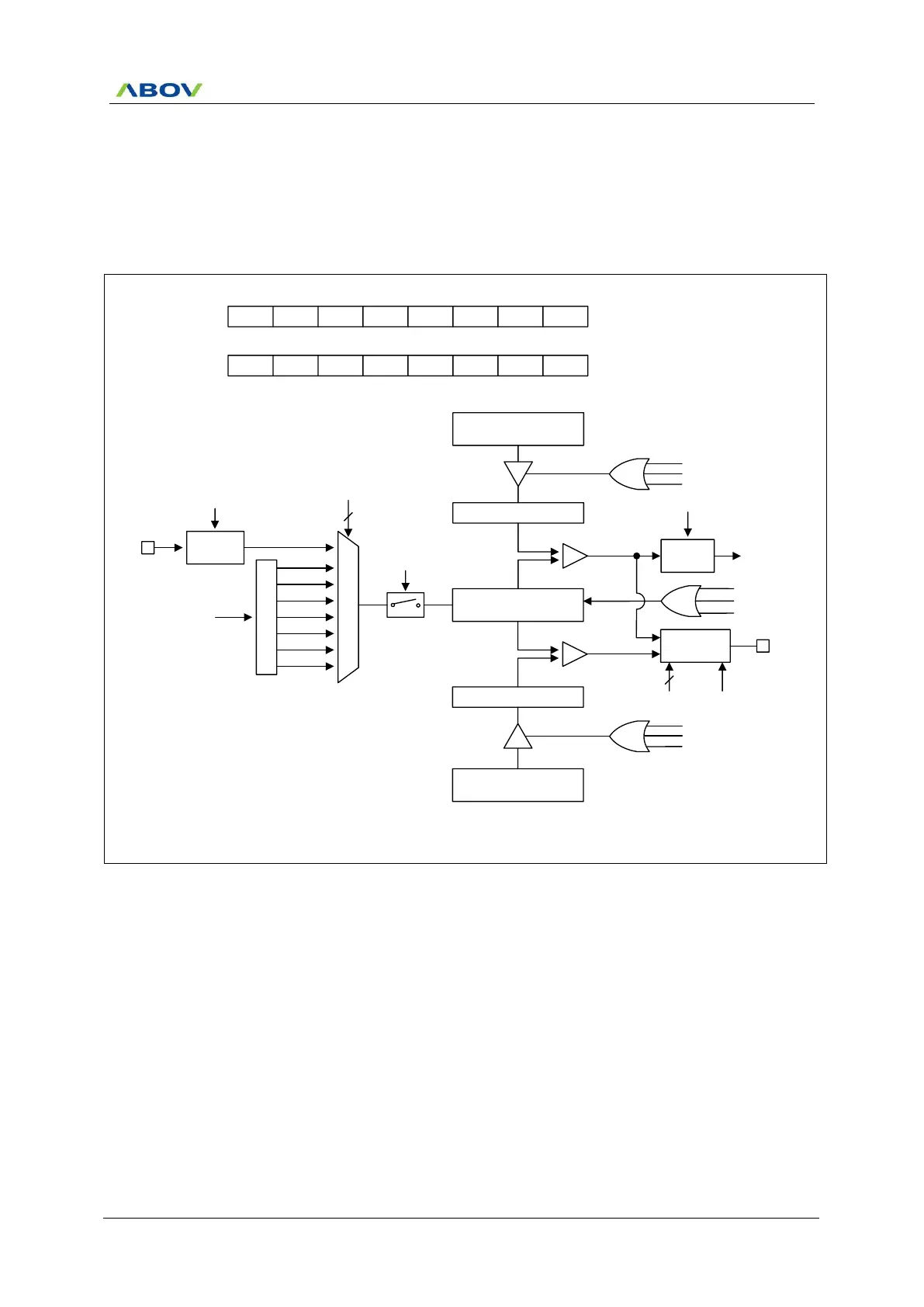

Figure 11.19 16-Bit PPG Mode for Timer 1
