MC96F6432
June 22,
20
18 Ver. 2.9
49

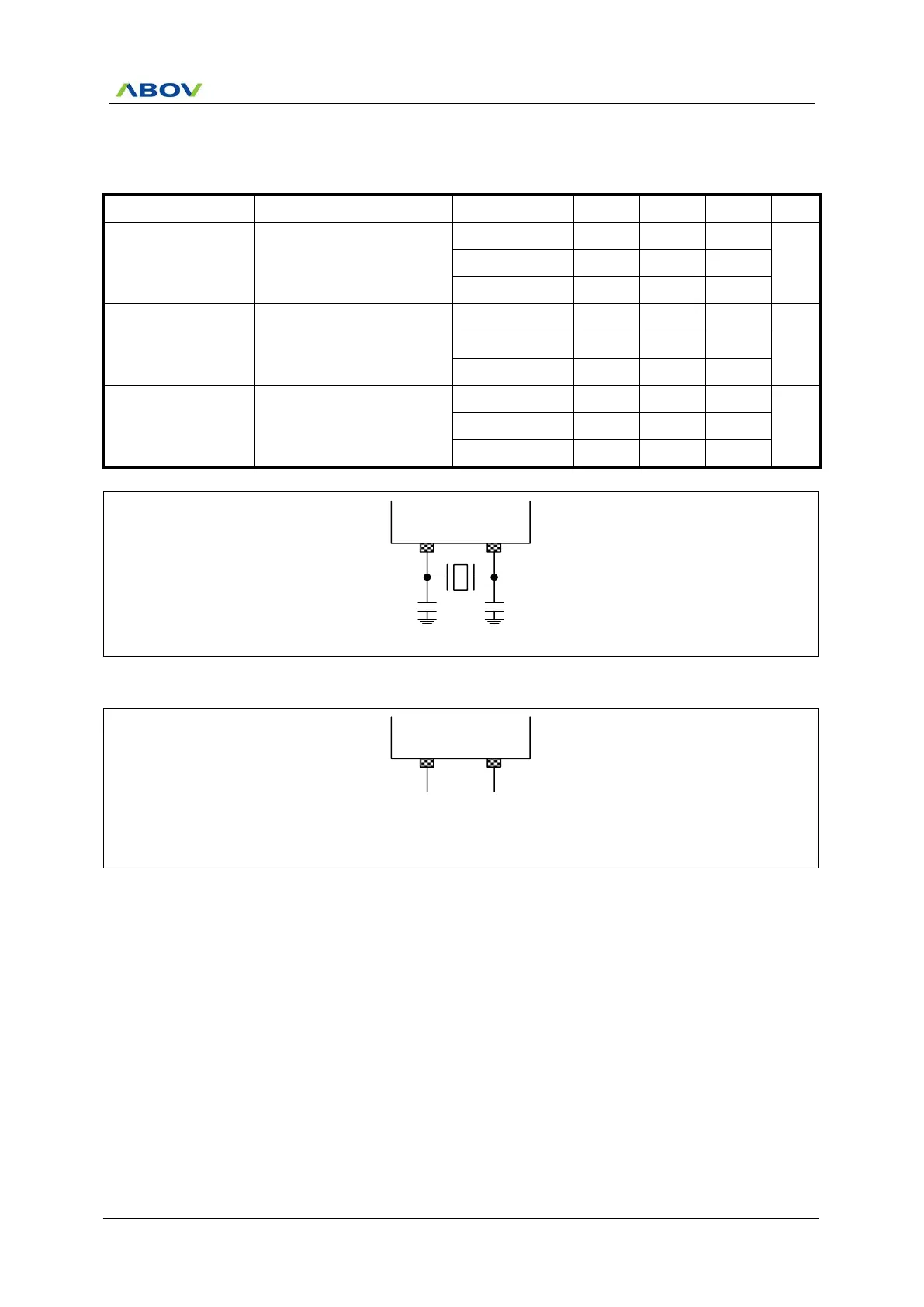

7.17 Main Clock
Oscillator
Characteristics
Table 7-
17
Main Clock Oscillator Characteristics
(T
A
= -
40
°
C ~ +8
5°
C, VDD= 1.8V ~ 5.5V)
Oscillator
Parameter
Condition
MIN
TYP
MAX
Unit
Crystal
Main oscillation frequency
1.8V
–
5.5V
0.4
–
4.2
MHz
2.7V
–
5.5V
0.4
–
10.0
3.0V
–
5.5V
0.4
–
12.0
Ceramic Oscillator
Main oscillation frequency
1.8V
–
5.5V
0.4
–
4.2
MHz
2.7V
–
5.5V
0.4
–
10.0
3.0V
–
5.5V
0.4
–
12.0
External Clock
XIN input frequency
1.8V
–
5.5V
0.4
–
4.2
MHz
2.7V
–
5.5V
0.4
–
10.0
3.0V
–
5.5V
0.4
–
12.0
XIN
XOUT
C1
C2
Figure 7.8 Crystal/Ceramic Oscillator
XIN
XOUT
External
Clock
Source
Open
Figure 7.9 External Clock
