MC96F6432
298 June 22, 2018 Ver. 2.9
14.2 Two-Pin External Interface
14.2.1 Basic Transmission Packet
• 10-bit packet transmission using two-pin interface.
• 1-packet consists of 8-bit data, 1-bit parity and 1-bit acknowledge.
• Parity is even of ‘1’ for 8-bit data in transmitter.
• Receiver generates acknowledge bit as ‘0’ when transmission for 8-bit data and its parity has no error.
• When transmitter has no acknowledge (Acknowledge bit is ‘1’ at tenth clock), error process is executed in
transmitter.
• When acknowledge error is generated, host PC makes stop condition and transmits command which has error
again.
• Background debugger command is composed of a bundle of packet.
• Start condition and stop condition notify the start and the stop of background debugger command respectively.

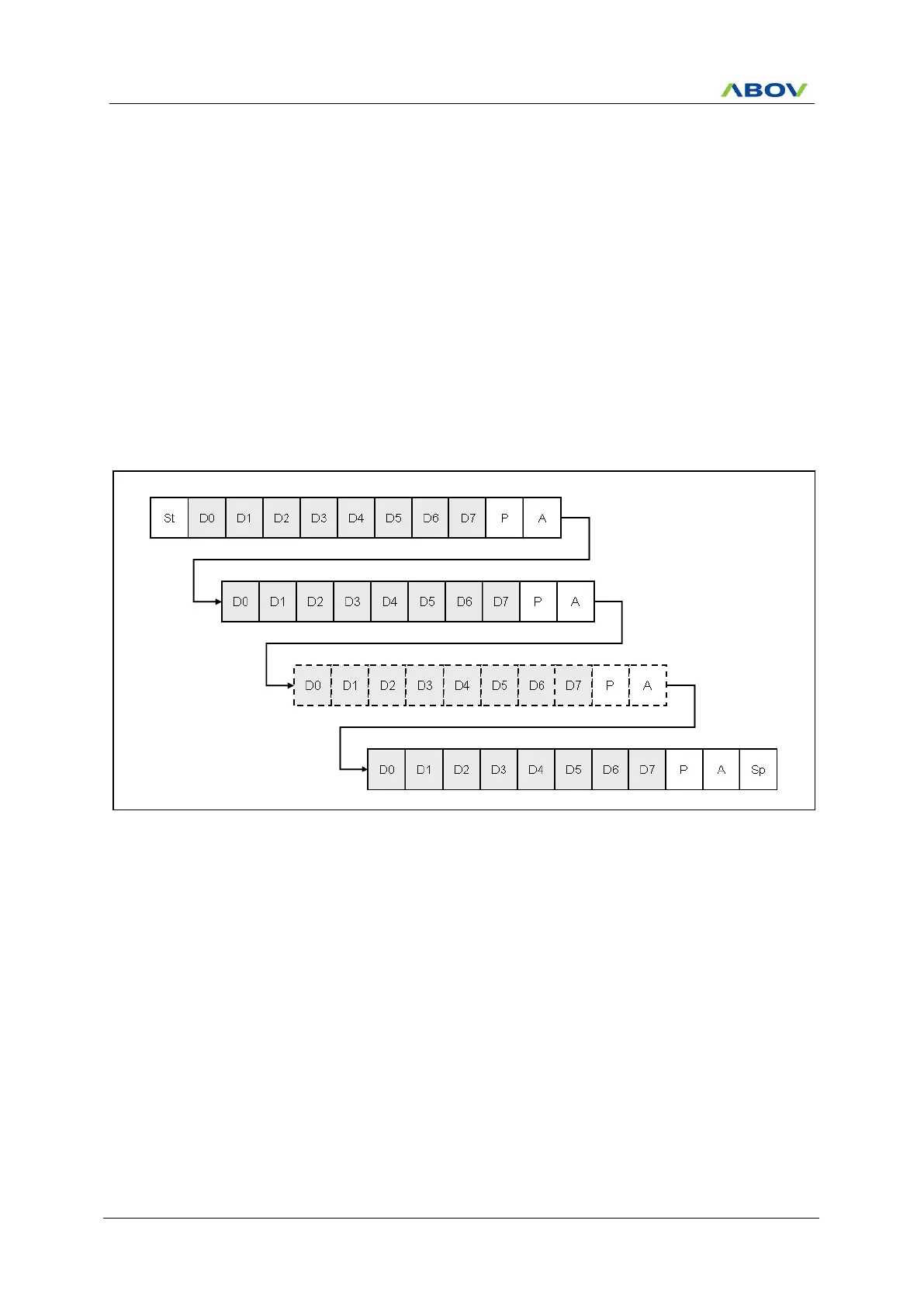

Figure 14.2 10-bit Transmission Packet
