3. Pin Assignment
MC96F6432L
(48LQFP-0707)
1
2
13
8
9
10
11
3
4
5
6
7
14 15 16 17 18 19 20 21 22
33
32
26
25
31
30
29
28
27
44 43 42 41 40 39 38 37
P55/RESETB
P40/VLC3/RXD0/SCL0/MISO0
P41/VLC2/TXD0/SDA0/MOSI0
P52/EINT8/EC0/BLNK
P05/SEG24/AN3/EINT3/PWM4BB
P04/SEG25/AN2/EINT2/PWM4BA
P54/SXOUT/EINT10
P53/SXIN/T0O/PWM0O
P11/SEG15/AN12/EINT12/T2O/PWM2O
P12/SEG16/AN11/EINT11/T1O/PWM1O
P17/SEG21/AN6/EINT6/SS2
P07/SEG22/AN5/EINT5/PWM4CB
P15/SEG19/AN8/MISO2
P16/SEG20/AN7/EINT7/SCK2
P13/SEG17/AN10/EC1/BUZO
P14/SEG18/AN9/MOSI2
P06/SEG23/AN4/EINT4/PWM4CA
P25/SEG8 P24/SEG9 P23/SEG10 P22/SEG11/SS1 P21/SEG12/AN15/SCK1 P20/SEG13/AN14/TXD1/SDA1/MOSI1 P10/SEG14/AN13/RXD1/SCL1/MISO1 P27/SEG6 P26/SEG7 P31/COM6/SEG4 P30/COM7/SEG5
P51/XIN
P50/XOUT
P02/AN0/AVREF/EINT0/T4O/PWM4AA
P01/T3O/DSCL
P00/EC3/DSDA
VDD
P03/SEG26/AN1/EINT1/PWM4AB
VSS
P32/COM5/SEG3
P33/COM4/SEG2
P37/COM0
P36/COM1
P35/COM2/SEG0
P34/COM3/SEG1
P42/VLC1/SCK0
P43/VLC0/SS0
12
NC
23
NC
35
34
24
36
48 47 46 45
NC
NC

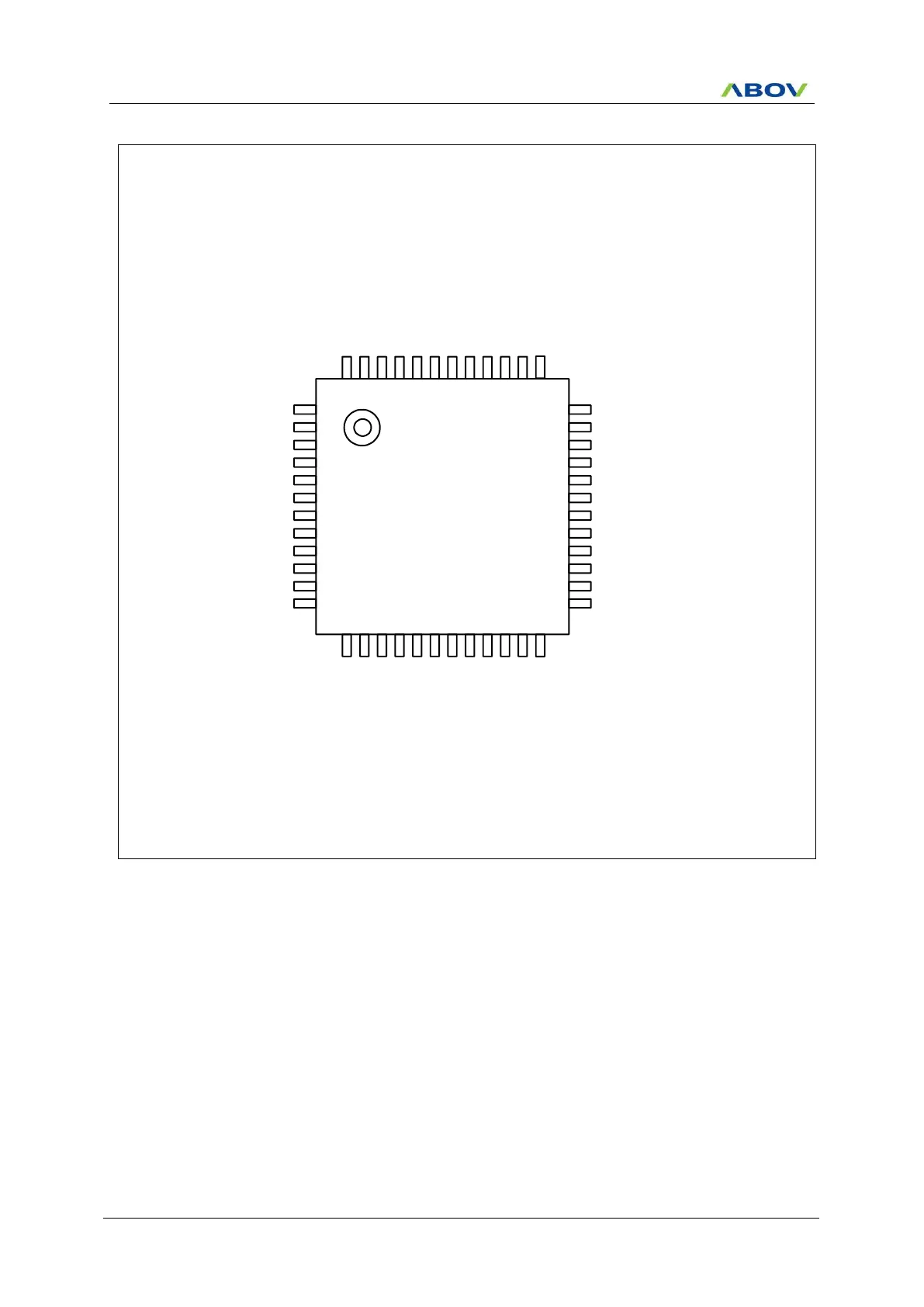

Figure 3.1 MC96F6432L 48LQFP-0707 Pin Assignment
NOTE) 1. On On-Chip Debugging, ISP uses P0[1:0] pin as DSDA, DSCL.
2. Do not connect anything to NC pin
