MC96F6432
June 22, 2018 Ver. 2.9 99
10.7 Multi Interrupt
If two requests of different priority levels are received simultaneously, the request of higher priority level is
served first. If more than one interrupt request are received, the interrupt polling sequence determines which
request is served first by hardware. However, for special features, multi-interrupt processing can be executed by
software.

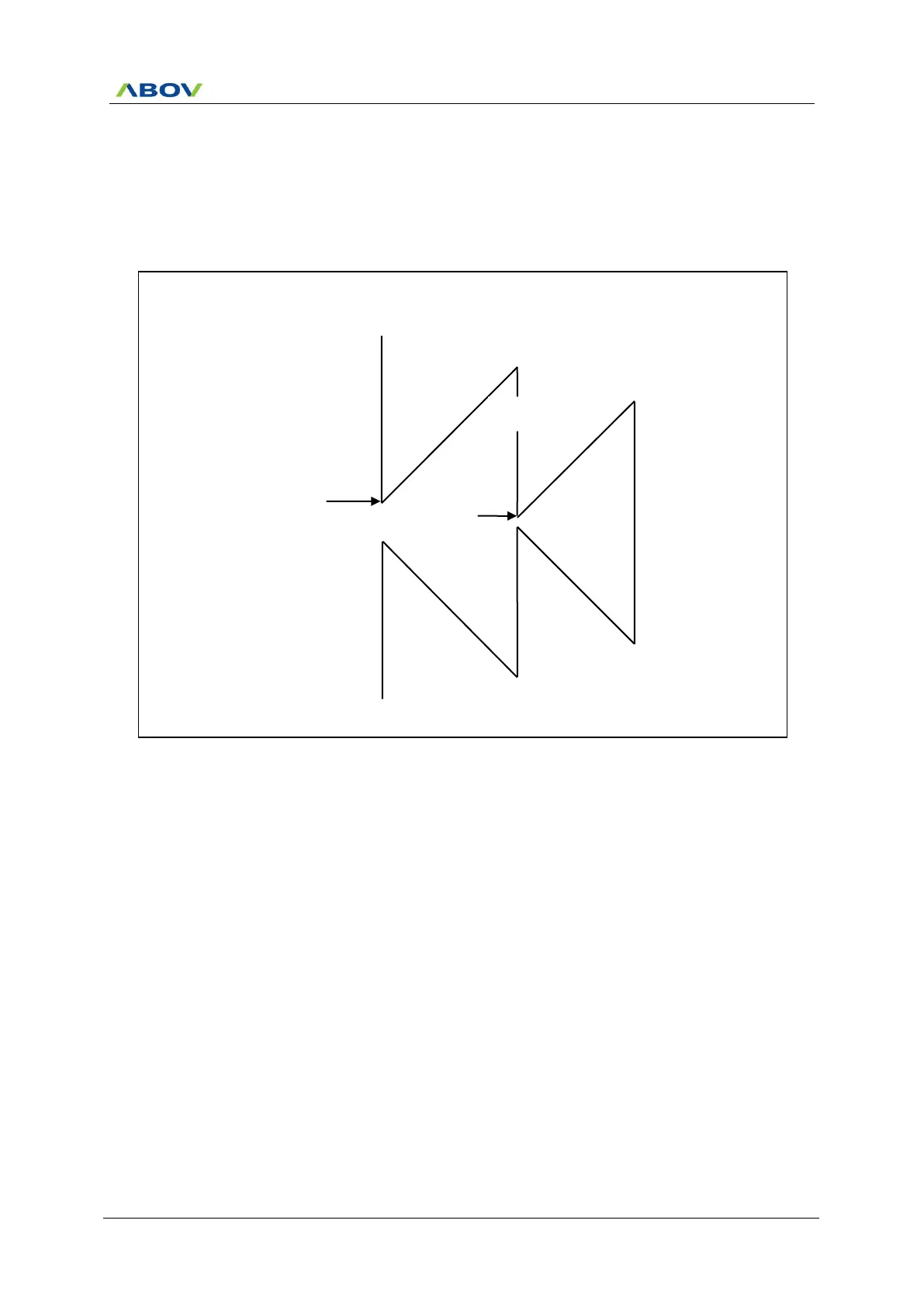

Figure 10.6 Effective Timing of Multi-Interrupt
Figure 10.6 shows an example of multi-interrupt processing. While INT1 is served, INT0 which has higher
priority than INT1 is occurred. Then INT0 is served immediately and then the remain part of INT1 service routine
is executed. If the priority level of INT0 is same or lower than INT1, INT0 will be served after the INT1 service has
completed.
An interrupt service routine may be only interrupted by an interrupt of higher priority and, if two interrupts of
different priority occur at the same time, the higher level interrupt will be served first. An interrupt cannot be
interrupted by another interrupt of the same or a lower priority level. If two interrupts of the same priority level
occur simultaneously, the service order for those interrupts is determined by the scan order.
