Accsense VersaLog Data Loggers User’s Manual Page 43

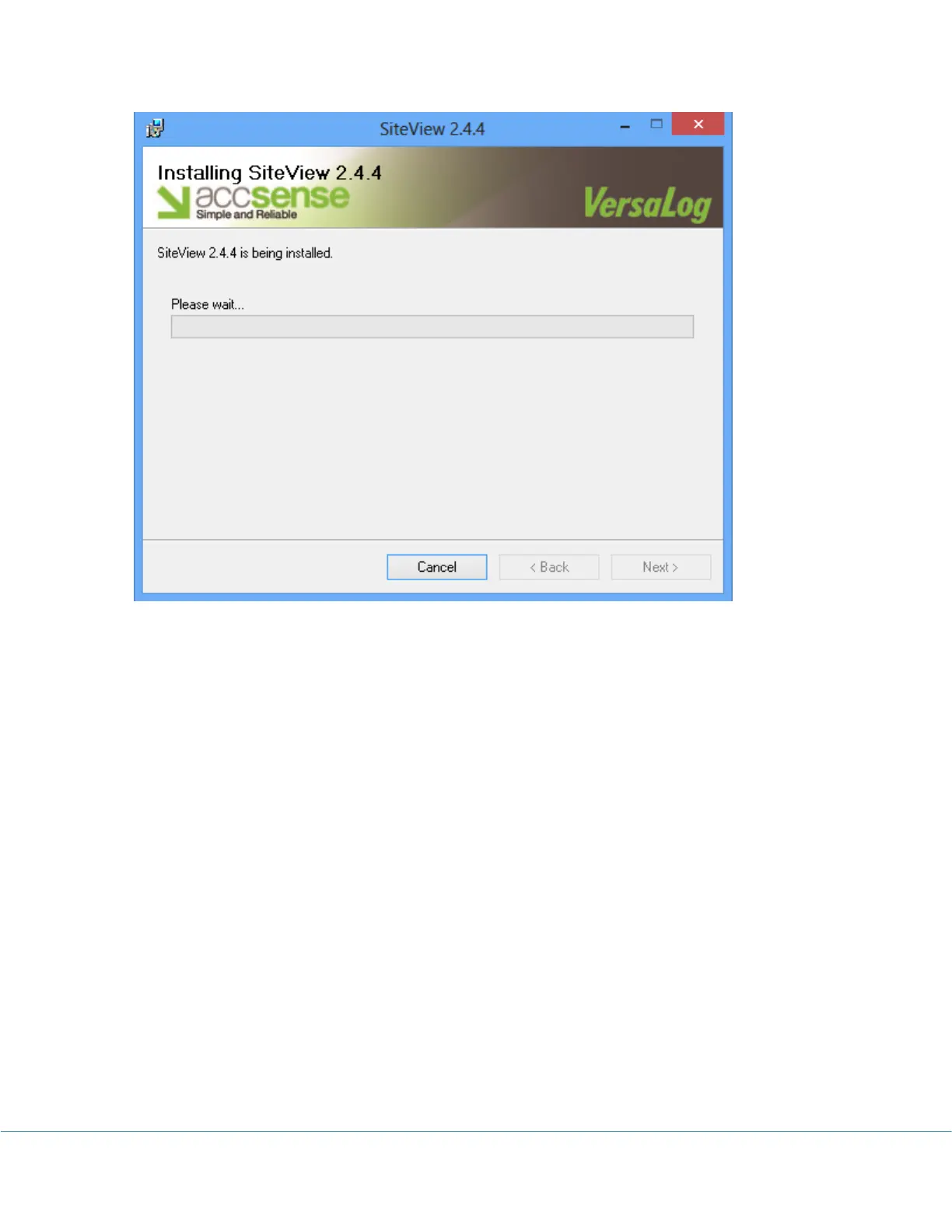

As VersaLog SiteView is being installed the above dialog shows the installation progress by

percentage. Once the installation is complete, the below dialog appears:
