Accsense VersaLog Data Loggers User’s Manual Page 44

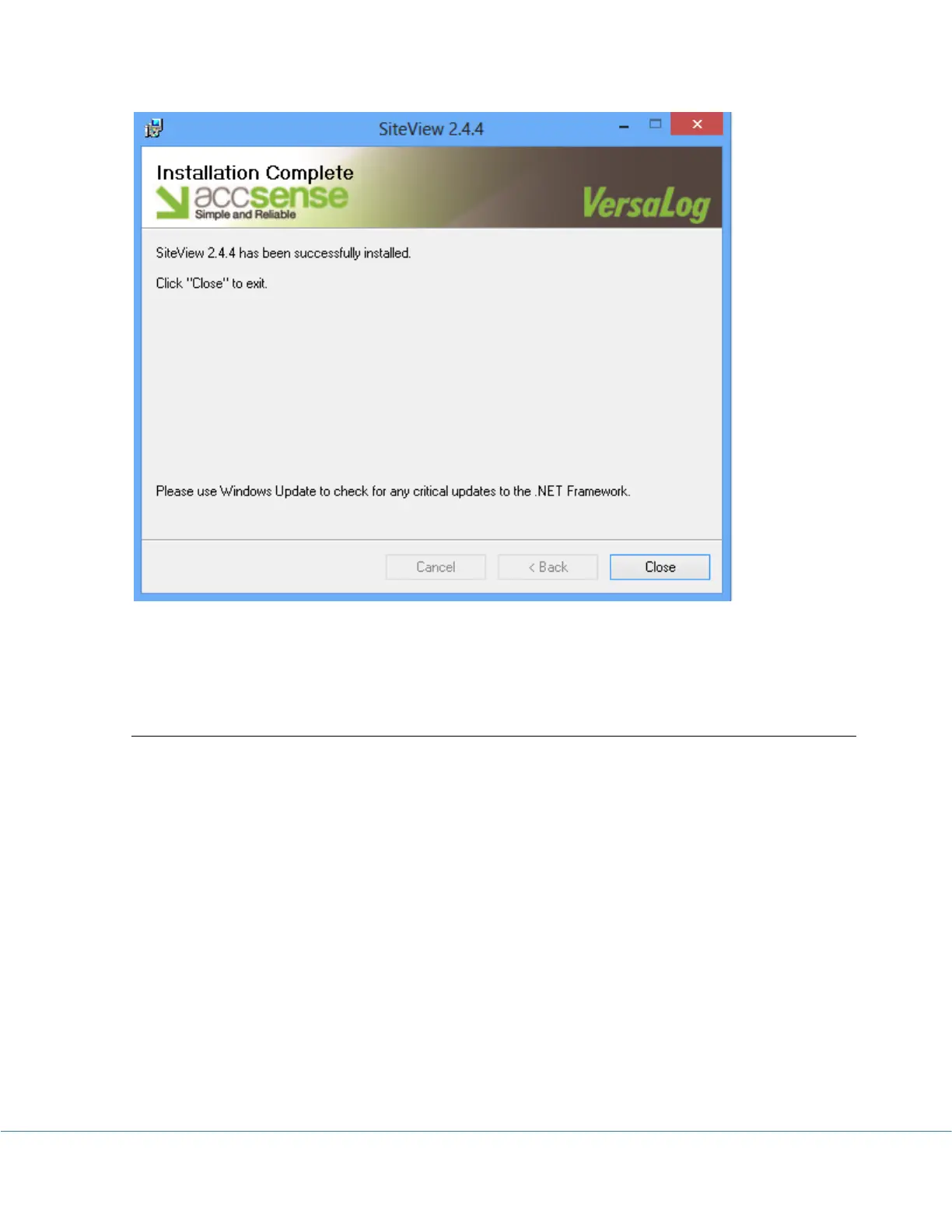

Click “Close” button to finish the installation and close the dialog.

Install USB Driver

Upon the completion of the above steps, the Site-View USB Driver Installation dialog will start

automatically.
